Product Description

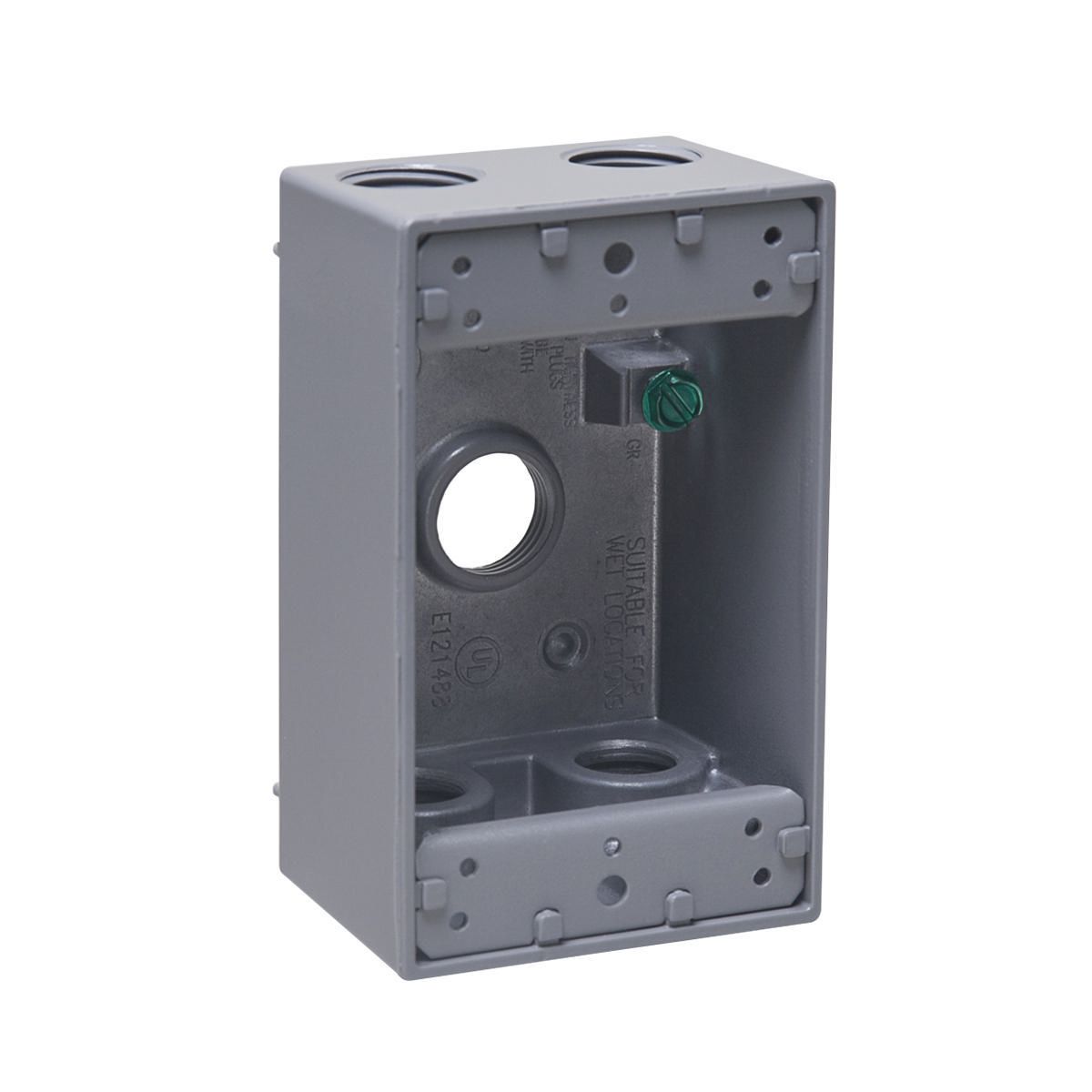

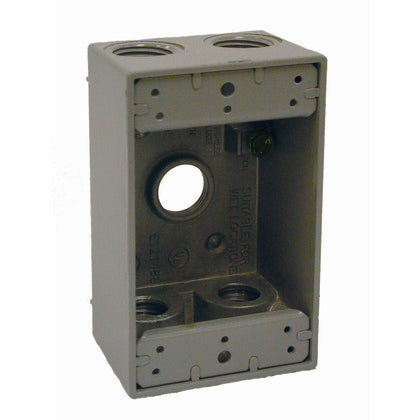

The HUBBELL 5322-0 weatherproof outlet box is constructed from die-cast aluminum and designed for branch circuit wiring in wet, damp, or dry locations. It can be used as a weatherproof junction box or housing for receptacles, switches, and GFCIs. Internal threads and hubs comply with NEMA requirements.
- For use in branch circuit wiring in wet, damp, or dry locations
- May be used as a weatherproof junction box, or as a housing for receptacles, switches, and GFCI's
- Internal threads and hubs comply with NEMA requirements
Product Highlights
This single-gang weatherproof box features reinforced connector outlets and a powder coat finish for weatherability and scratch resistance. It includes multi-lingual instructions and closure plugs.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: 5322-0
-
Country of Origin: IN - India
Technical Specifications
-
Gang: 1
-
Cu-in: 18.3
-
Length: 4-1/2 in
-
Width: 2.816 in
-
Depth: 2 in
-
Application: Used in branch circuit wiring in wet, damp, dry locations and in electrical applications
-
Color: Gray
-
Enclosure: NEMA 3R
-
Finish: Powder Coated
-
Hub Size: 1/2 in
-
Hub Style: Threaded
-
Includes: (2) Closure Plugs, (5) Threaded Outlets, Mounting Hardware, Multi-Lingual Instructions, Ground Screw and Gasket
-
Manufacturer Part Number: 5322-0
-
Material: Die Cast Aluminum
-
Mounting Type: Lug
-
Number of Gangs: 1
-
Number of Outlets: 5
-
Standards/Approvals: CSA C22.2 No. 18|UL 514A File No. E195978
-
Volume: 18.3 cu-in
-
Height: 4-1/2 in H
-
NEMA Rating: 3R
-
Box Capacity: 16.5 cu. in.
-
Box Depth: 2 in.
-
No. of Inlets: 5
-
Mounting: Vertical, Horizontal
-
Threaded Outlet Diameter: 1/2 in
-
Number of Threaded Outlets: 5
-
Catalog Number: 5322-0
-
Construction: Metallic
-
EU RoHS Indicator: Yes
-
Material Type: Metallic
-
Number of Gang(s): 1-Gang
-
Thread Size: 1/2 in
-
Type: 1-Gang
-
UPC: 050169532201
-
Actual Depth: 2.142 in
-
Cubic Capacity: 18.3 cu.in
-
Package Height: 4.565 in
-
Package Length: 2.148 in
-
Package Width: 2.816 in
-
Certified Listed: UL Listed
CSA Certified
