Hubbell 4233 Flush 2-Gang Concrete Floorbox with Rectangular Cover, 3.50 inches Minimum Depth of Pour

Product Description

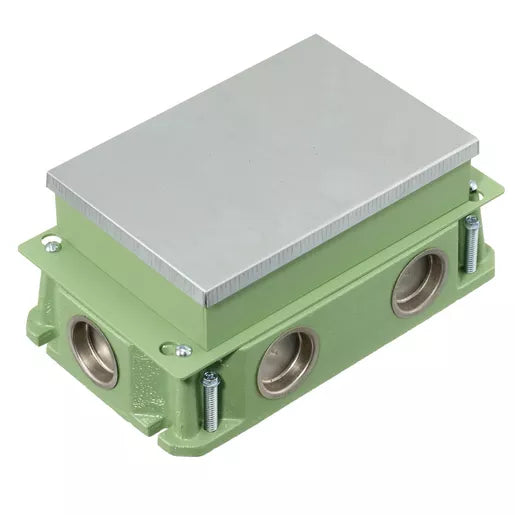

The HUBBELL 4233 is a rectangular flush deep cast iron base floorbox with a stamped steel adjustable top designed for use in concrete floors. This 2-gang box has a 3.50" minimum depth of pour and includes an installation concrete cover and disposable PVC spacers. It also features external 1.25" prepour leveling screws.

• 3.50" minimum depth of pour
• (6) 1" threaded hubs, ships with (4) 1" to ¾" threaded reducers
• 1.25" prepour and 0.875" post pour adjustment

Product Highlights

The HUBBELL 4233 floorbox is ideal for multi-service applications in concrete floors, offering corrosion resistance and easy adjustability.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 4233
• Country of Origin: CN - China

Technical Specifications

• Application: For Use in Concrete Floors
• Catalog Number: FB4233
• Color: Green
• Construction: Fabricated
• Knockouts: 6
• Material: Cast Iron Base Box, Pregalvanzied Steel Top, PVC Spacer
• Mounting Method: Screw Mount Device Mounting Plates
• Mounting Type: Field Installed
• Number of Gang(s): 2-Gang
• Series: Concrete Floorboxes
• Size: 2-Gang
• Style: 2-Gang
• Type: Flush
• Industry Standard(s): cULus Listed to UL514
• Cable Entry: From Top
• Depth: 3.38 Inch
• Height: 3.38 Inch
• Length: 8.06 Inch
• Width: 4.84 in
• Capacity Per Gang: 36.5 cu. in. (598.1 cm3)
• Collar Material: Brass
• Min. Depth of Pour: 3.75" (95.3)
• Brand: HUBBELL WIRING DEVICE-KELLEMS
• MPN: FB4233
• Model: FB4233
• Country of Origin: United States
