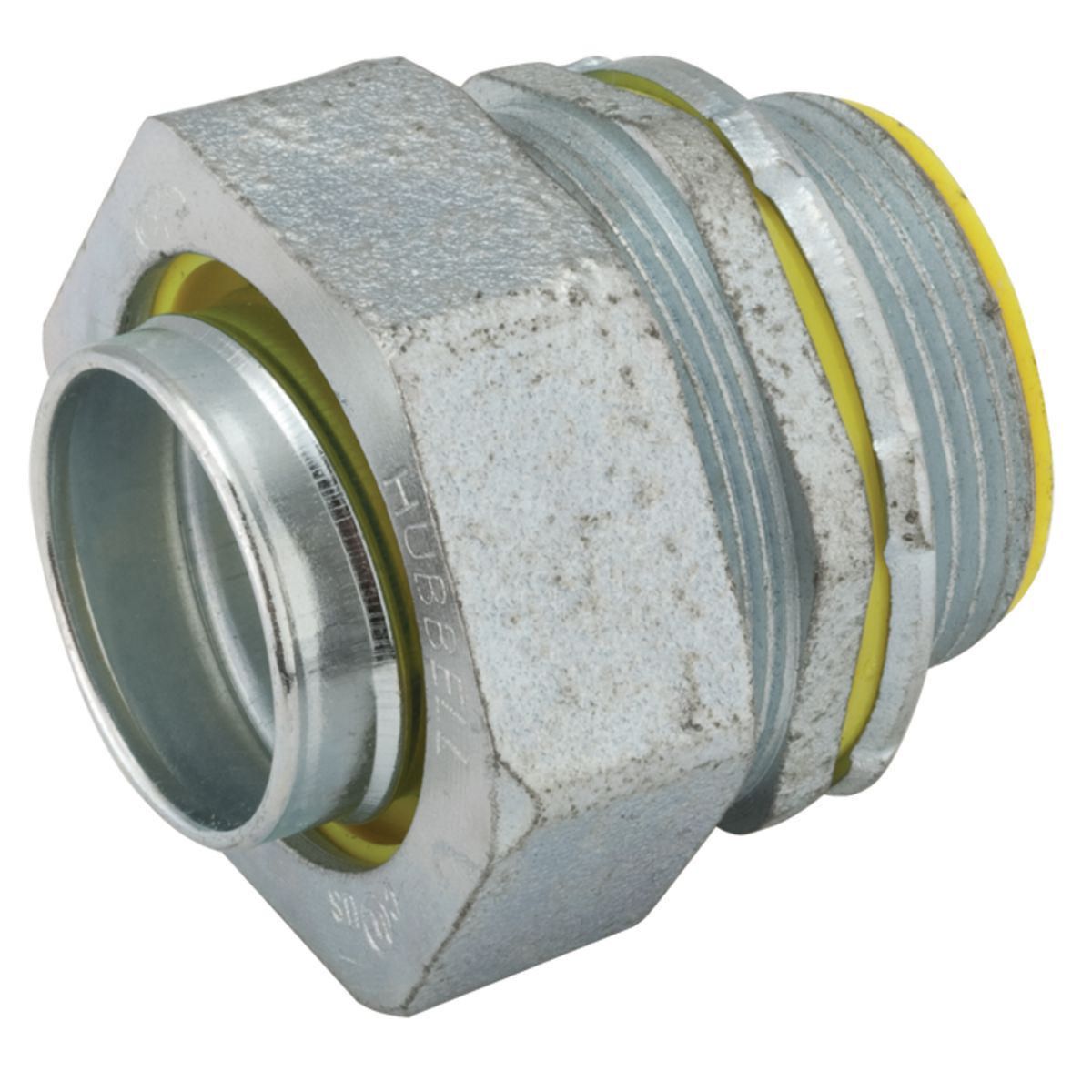

Hubbell 3515RAC RACO LIQUIDTIGHT CONNECTOR 1-1/4 IN INSUL STL

Product Description

Hubbell 3515RAC RACO Liquidtight Connector is designed for insulated straight applications. This connector is suitable for use with Liquid Tight Flexible Type B Non-Metallic Conduit or Cord. Made from malleable iron and steel, it features an electro-plated zinc finish. The dimensions are two and three-sixteenth inches in length, two and seven-sixteenth inches in width, and two and three-sixteenth inches in height.

• Includes sealing washer and locknut.
• Patented split gland-ring for quick installation.
• Reusable components for longevity.

Product Highlights

This product provides a secure bond between the conduit and the box, suitable for both indoor and outdoor use, even in hazardous locations.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: 3515RAC

Technical Specifications

• Application: Used in outdoor or indoor locations to bond the conduit to a box or enclosure
• Color: Silver
• Dimensions: 2-3/16 in L x 2-7/16 in W x 2-3/16 in H
• Finish: Electro-Plated Zinc
• Includes: Sealing Washer and Locknut
• Material: Malleable Iron/Steel
• Standards/Approvals: CSA Certified, UL Listed, Class 1, Div 2
• Suitable For Use With: Liquid Tight Flexible Type B Non-Metallic Conduit/Cord
• Trade Size: 1-1/4 in
• Type: Insulated Straight
