Hubbell 2FS-3 1 inches Aluminum, 2FS Type Two Gang Shallow Device Box

Product Description

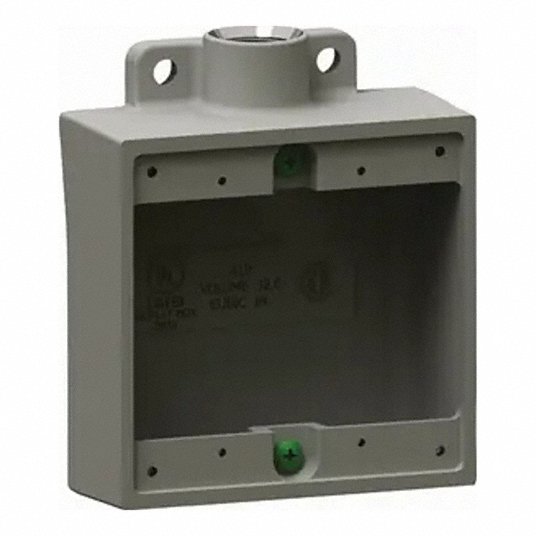

The HUBBELL 2FS-3 is a 1" Aluminum, 2FS Type Two Gang Shallow Device Box. It accommodates wiring devices and provides an opening to splice, tap, or pull conductors, and provides access for maintenance. It features tapered threads with integral bushings and an internal grounding screw.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard
• Suitable for use in wet locations when used with gasket covers

Product Highlights

The HUBBELL 2FS-3 device box is suitable for use in wet locations when used with gasket covers and cast iron is suitable for concrete use.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 2FS-3
• Country of Origin: USA

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: 2FS-3
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: Dead-End
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 2
• Series: F Series
• Type: Device Box
• UPC: 783936190068
• Hub Size: 1"
• CSA File Number: LR11852
• Nema Rating: 7 (C, D)
• UL File Number: E3397
• Box Depth: 2 in
• Box Shape: Square
• Bracket Type: Lugs
• Capacity: 32 cu in
• Hub Type: Dead End
• Number of 1 in Side Knockouts: 1
• Number of Gangs: 2
• Overall Depth: 2 in
• Standards: CSA; UL Listed
• UNSPSC: 39121305
• Category: Outlet/Handy Box
