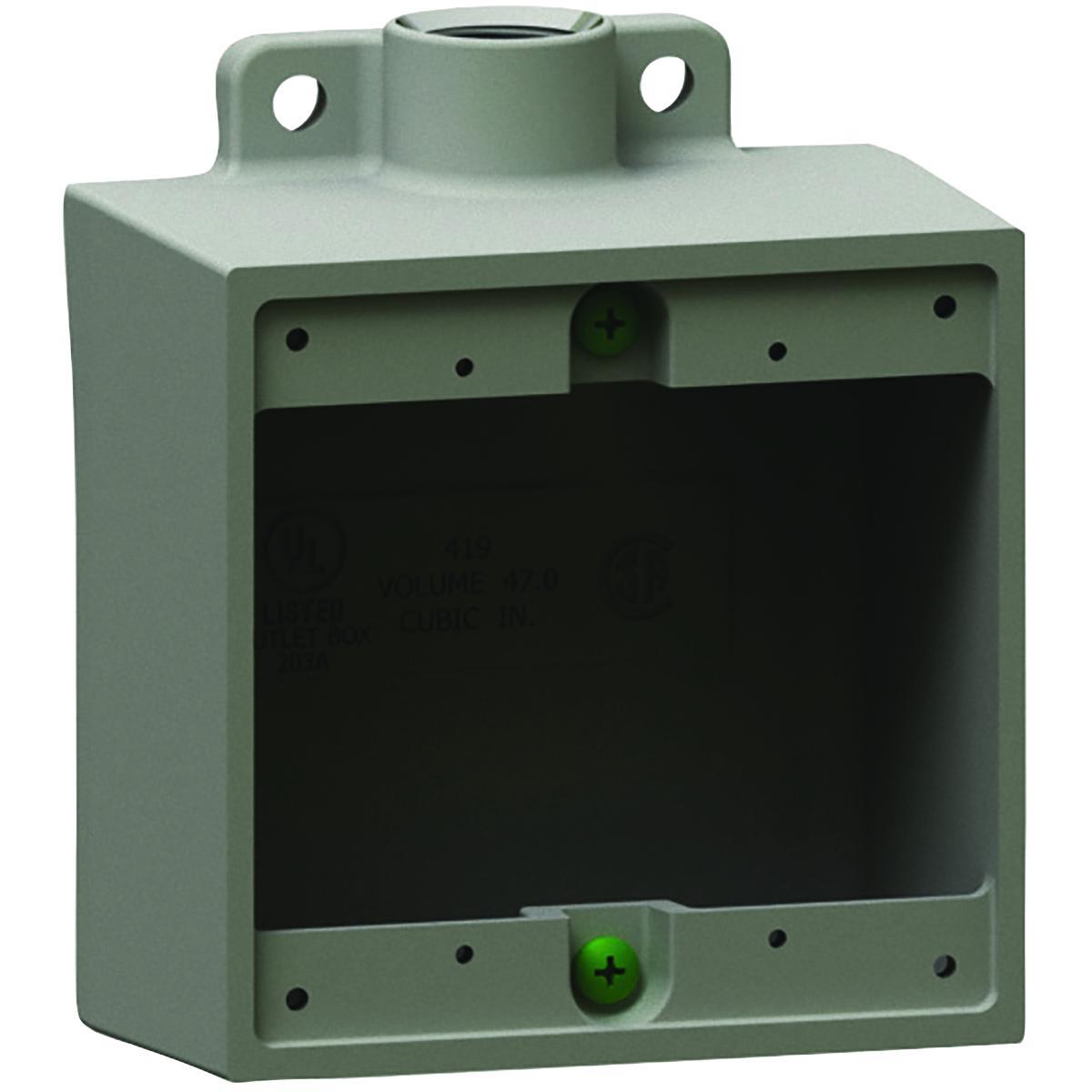

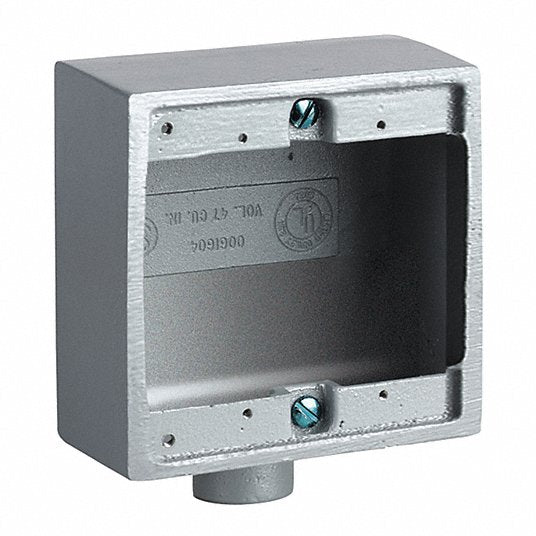

Hubbell 2FD-2 Device Box 3/4 inches Aluminum, 2FD Type Two Gang Deep

Product Description

The HUBBELL 2FD-2 is a 3/4" Aluminum, 2FD Type Two Gang Deep Device Box. It accommodates wiring devices and provides an opening to splice, tap, or pull conductors. It also provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard

Product Highlights

The HUBBELL 2FD-2 device box is suitable for use in wet locations and cast iron is suitable for concrete use.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 2FD-2
• Country of Origin: USA

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: 2FD-2
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: Dead-End
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 2
• Series: F Series
• Type: Device Box
• UPC: 783936150055
• Height: 4.25 in
• Hub Size: 3/4"
• Length: 7.75 in
• Width: 6 in
• Box Depth: 2-15/16 in
• Box Height: 4-11/16 in
• Box Shape: Square
• Box Width: 4-5/8 in
• Bracket Type: Lugs
• Capacity: 47 cu in
• Hub Type: Dead End
• Number of 3/4 in Side Knockouts: 1
• Number of Gangs: 2
• Overall Depth: 2-15/16 in
• Overall Height: 4-11/16 in
• Overall Width: 5-1/2 in
• Standards: CSA; UL Listed
• UNSPSC: 39121305
• Cable Entry Size: Hub
• Shape: Deep
• Standard & Approvals: UL 514A, E3397, CSA C22.2 No 18, LR11852, Federal Specification W-C-586D, NEMA FB-1, RoHS Compliant
• Enclosure Type: NEMA FB-1
• Finish: Powder Coated
• Item Width: 5.900
• Item Length: 7.600
• Item Height: 4.200
• Country of Origin: US
• California Prop 65 Warning: N
• Weight: 1.5000
• Depth: 5.900
