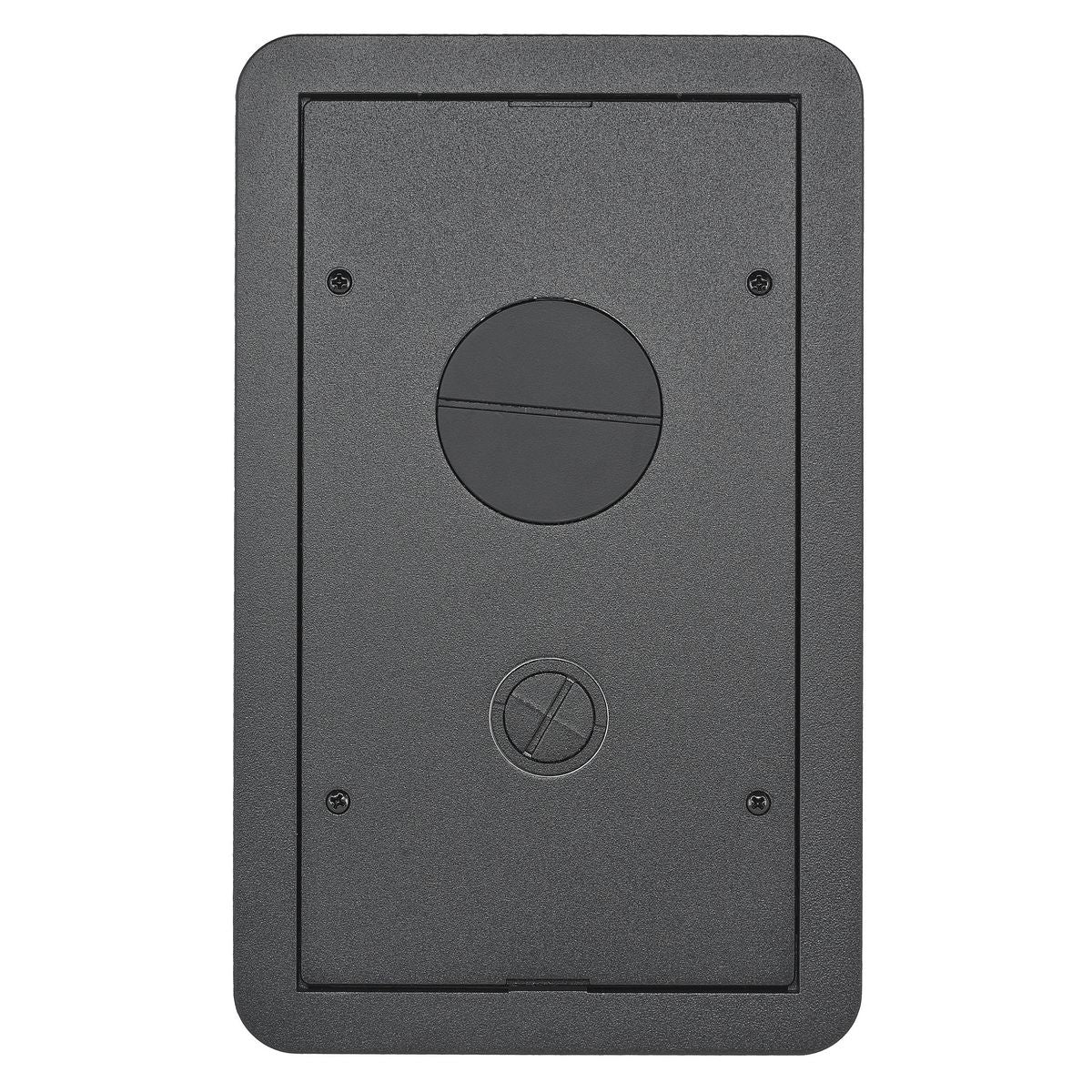

Hubbell 24GCFFCVRBK CFB2G & CFB4G Rectangular Furniture Feed Series Surface Cover Assembly

Product Description

The Hubbell 24GCFFCVRBK is a CFB2G & CFB4G rectangular furniture feed series surface cover assembly. Designed for concrete floors and recessed applications. It features two large cable egress doors with 180-degree access. It supports a maximum static load of 800 lb with a 2X safety factor.

• Two large cable egress doors and access 180 deg opening
• Maximum static load of 800 lb with 2X safety factor
• For Use with Concrete Floor Boxes

Product Highlights

The Hubbell rectangular furniture feed series surface cover assembly is designed for durability and meets UL 514A scrub water requirements and is ADA compliant.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 24GCFFCVRBK
• Country of Origin: USA

Technical Specifications

• Application: For use with CFB4G25, CFB4G25CR, CFB4G30 and CFB4G30CR floor boxes and carpet furniture feed cover;For CFB2G25, CFB2G25CR, CFB2G30 and CFB2G30CR concrete ceiling floor boxes, carpet and VCT applications
• Color: Black
• Cover Type: Rectangle
• Finish: Powder Coated
• Length: 11.69 in
• Manufacturer Part Number: 24GCFFCVRBK
• Material: Cast Aluminum
• Mounting Type: Threaded;Surface
• Number of Gangs: 2/4
• Series: CFB
• Shape: Rectangular;Rectangle
• Standards/Approvals: CSA Certified|UL Listed;UL 514 A and C|cULus Listed
• Type: Fabricated Furniture Feed Standard Sized;Metallic Standard
• Width: 7.19 in
• Cable Entry: (2) Threaded Hubs
• Mounting Method: Mounts to Box
• Size: Standard Sized Product
• Sub Brand: Recessed Concrete Floor Boxes
• Typical Application: Carpet/Surface
• Industry Standard(s): cULus UL514
• Construction: Cast
• Construction Material - Main: Metallic
• Cover Shape: Rectangle
• EU RoHS Indicator: Contact Manufacturer
• Number of Gang(s): 2-Gang
• Product Series: Recessed - CFB Series
• Height: 3.8 Inch
• Use With: Concrete Floors
• Box Shape: Rectangle
• No. of Gangs: 2
• Width (in): 7.19
• Application - For Use On: Concrete
