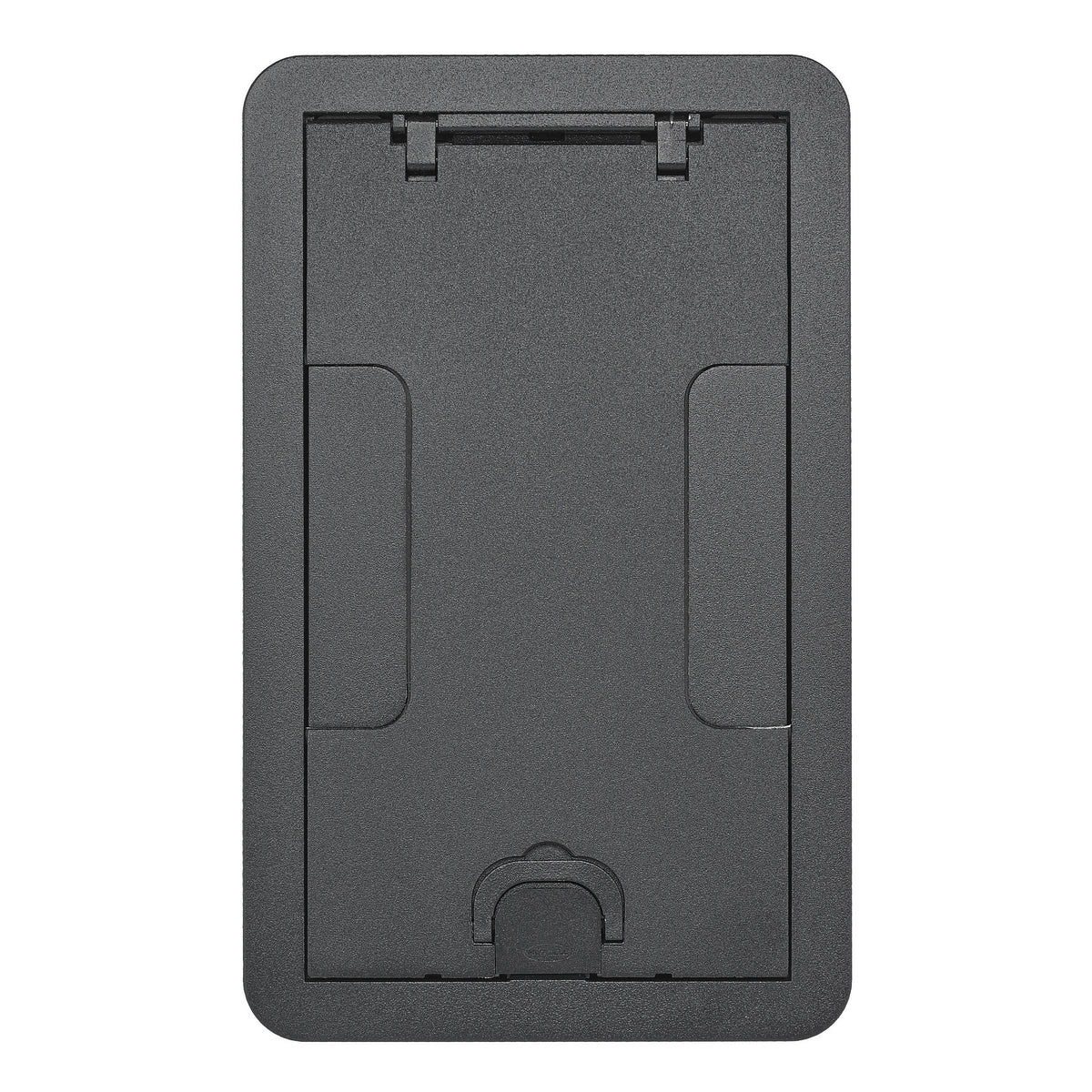

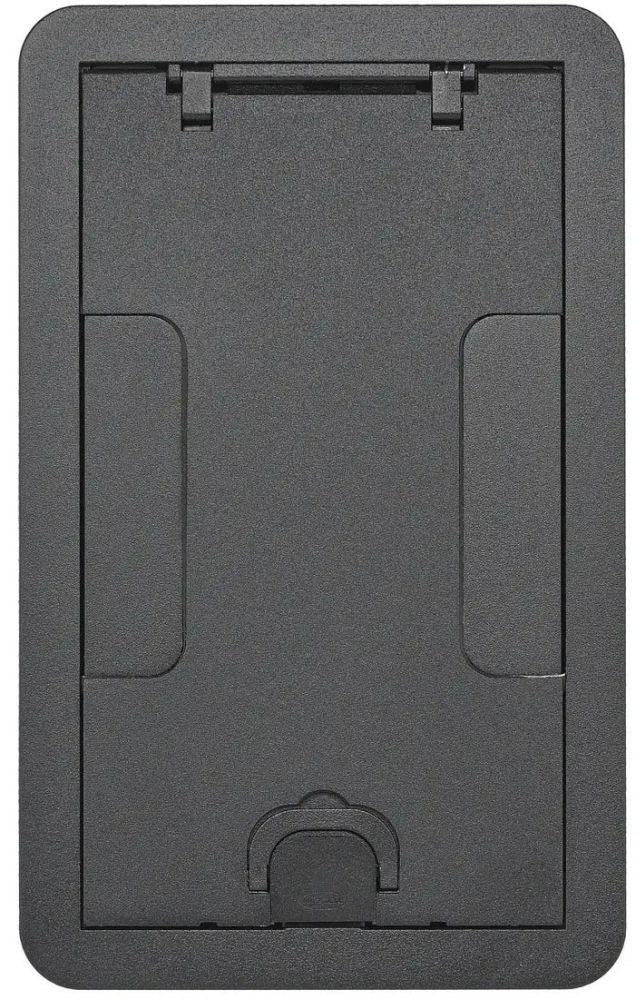

Hubbell 24GCCVRBK Carpet Cover 2/4G Flush Replacement 24GCCVRBK

Product Description

The HUBBELL 24GCCVRBK is a standard carpet cover designed for 2/4 gang configurations. Constructed from die-cast aluminum with a black powder-coated finish, this rectangular cover is suitable for concrete, carpet, VCT, and surface applications. It features a 180-degree cover opening to lay flat and reduce tripping hazards.

• 180 deg cover opening to lay flat and reduce tripping hazards
• Two large cable egress doors
• Die cast aluminum cover construction for enhanced durability

Product Highlights

Durable aluminum construction, ADA compliant, and suitable for various flooring types. Ideal for concrete floors and raised access floor boxes.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 24GCCVRBK
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 24GCCVRBK
• Number of Gangs: 2/4
• Length: 11.69 in
• Width: 7.19 in
• Thickness: 0.13 in
• Shape: Rectangular
• Material: Cast Aluminum
• Finish: Powder Coated
• Mounting Type: Threaded;Surface
• Standards/Approvals: ADA Compliant|UL 514|ADA Approved|cULus Listed;ADA Compliant|cULus Listed|UL 514A|UL 514C
• Type: Standard;Flush Surface Style Stamped Standard Recessed
• Application: Used in concrete floors, raised access floor boxes;For use with CFB2G25, CFB2G25CR, CFB2G30, CFB2G30CR, CFB4G25, CFB4G25CR, CFB4G30 and CFB4G30CR floor boxes, concrete, carpet, VCT, raised access, tile, finished concrete, terrazzo and raised access floor
• Load Rating: 800 Lb
• Cable Entry: (2) Egress Doors
• Mounting Method: Mounts to Box
• Series: Recessed - CFB Series
• Size: 2-Gang;4-Gang
• Sub Brand: Recessed Concrete Floor Boxes
• Typical Application: Carpet/Surface
• Industry Standard(s): cULus UL514
• Applications: Use in Concrete Floors
• Used With: Raised Access Floor Boxes
• Height: 4.1 Inch
• Construction: Cast
