Hubbell 24GCCVRALU Carpet Cvr 2/4G

Product Description

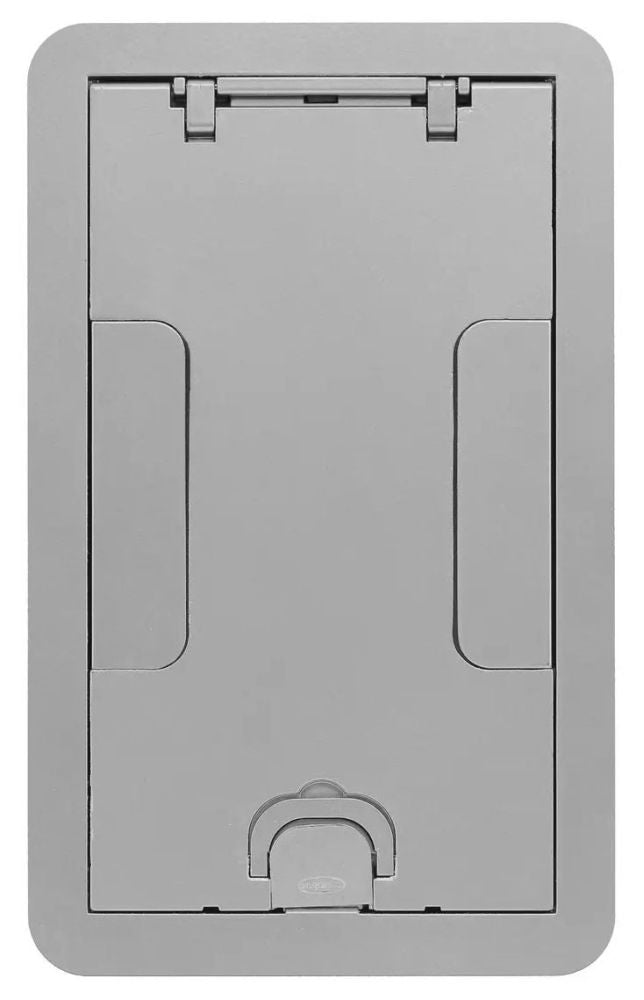

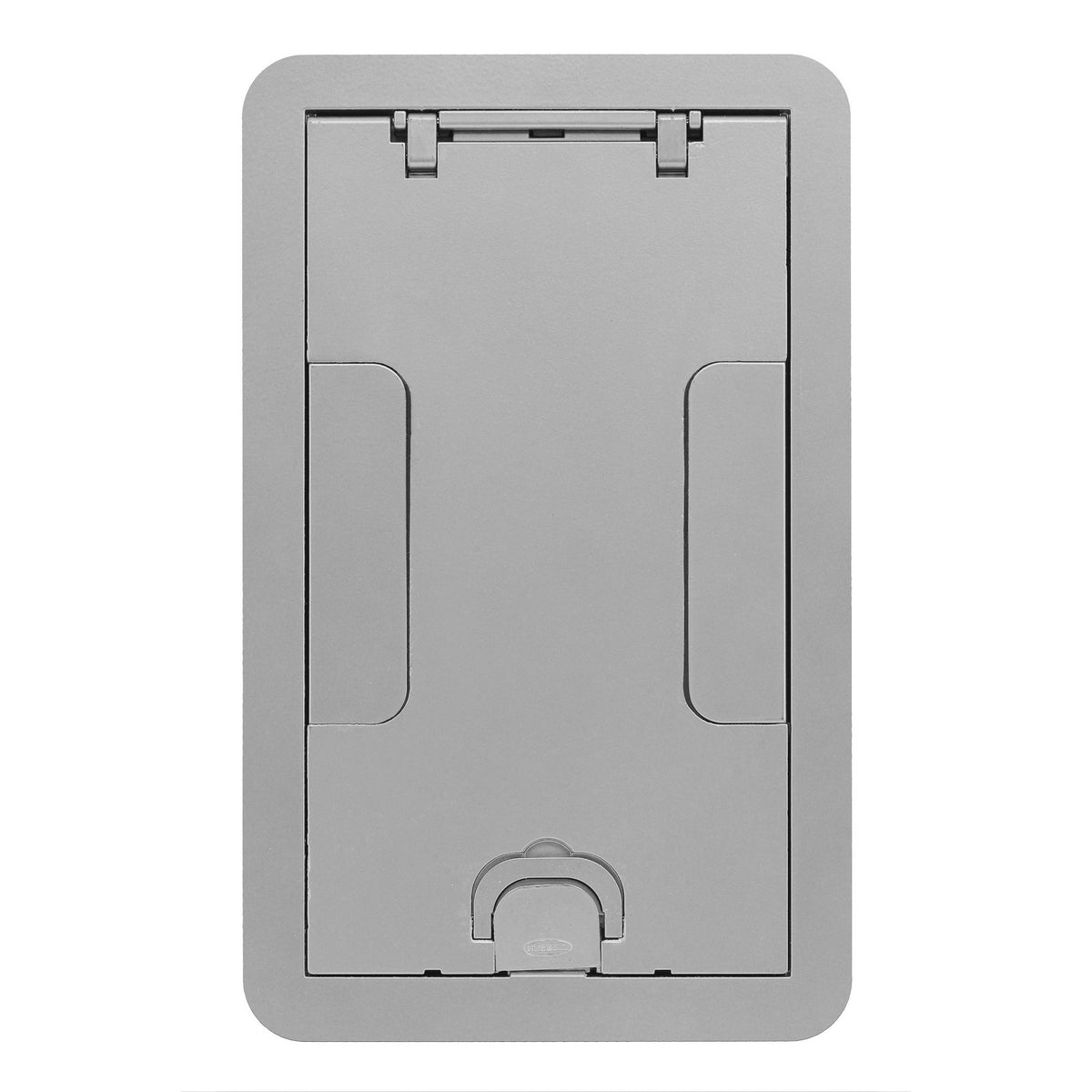

The HUBBELL 24GCCVRALU is a rectangular floor box cover designed for flush, carpet, and VCT service types. Constructed from die-cast aluminum with an aluminum powder-coated finish, it accommodates 2 or 4 gangs. This cover has a load capacity of 800 Lb and an adjustment range of 0 to 1 inch. It is UL 514A approved and ADA compliant, suitable for various floor box applications.

• 180-degree cover opening to lay flat and reduce tripping hazards
• Two large cable egress doors
• Die-cast aluminum cover construction for enhanced durability

Product Highlights

Features a 180-degree cover opening and two large cable egress doors, constructed from durable die-cast aluminum.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 24GCCVRALU
• Country of Origin: USA

Technical Specifications

• Type: Rectangular
• Length: 11.66 Inch
• Width: 7.18 Inch
• Number of Gangs: 2, 4
• Box Size: 13.79 Inch L x 6.62 Inch W x 3.5 Inch H, 13.79 Inch L x 6.62 Inch W x 3 Inch H
• Material: Die-Cast Aluminum
• Finish: Aluminum Powder Coated
• Service Type: Flush, Carpet, VCT
• Approval: UL 514A
• Adjustment Range: 0 to 1 Inch
• Load Capacity: 800 Lb
• Applicable Standard: ADA
• Application: Raised Access and Concrete Floor Applications
• Color: Aluminum
• Mounting Type: Threaded; Flush
• Thickness: 0.13 in
• Mounting Method: Mounts to Box
• Series: Recessed - CFB Series
• Sub Brand: Recessed Concrete Floor Boxes
• Cable Entry: (2) Egress Doors
