Product Description

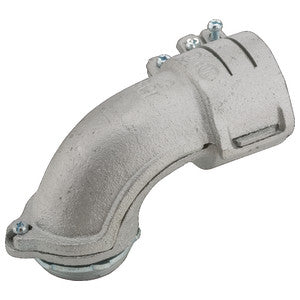

The Hubbell 2208 is a non-insulated squeeze conduit connector designed for flexible metal conduit connections. This connector has a trade size of two inches and features cable openings measuring two point zero six five inches. It is ideal for use with FMC and is made from durable malleable iron, electro-plated for corrosion resistance. The connector measures six point five four seven inches in length and three point seven nine six eight inches in width.
- Constructed from malleable iron for mechanical protection.
- Electro-zinc plated for enhanced corrosion protection.
- UPC bar coded and packaged for convenience.
Product Highlights
This product is suitable for applications in dry locations, bonding flexible metal conduit to boxes or enclosures.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: 2208
Technical Specifications
-
Application: Used in dry locations to bond flexible metal conduit to a box or enclosure
-
Cable Openings: 2.065 inches
-
Color: Silver
-
Dimensions: 6.547 inches L x 3.7968 inches W
-
Finish: Electro-Plated Zinc
-
Material: Malleable Iron
-
Standards/Approvals: UL File No. E195969 | cULus Listed
-
Suitable For Use With: FMC
-
Trade Size: 2 inches
-
Type: Non-Insulated
