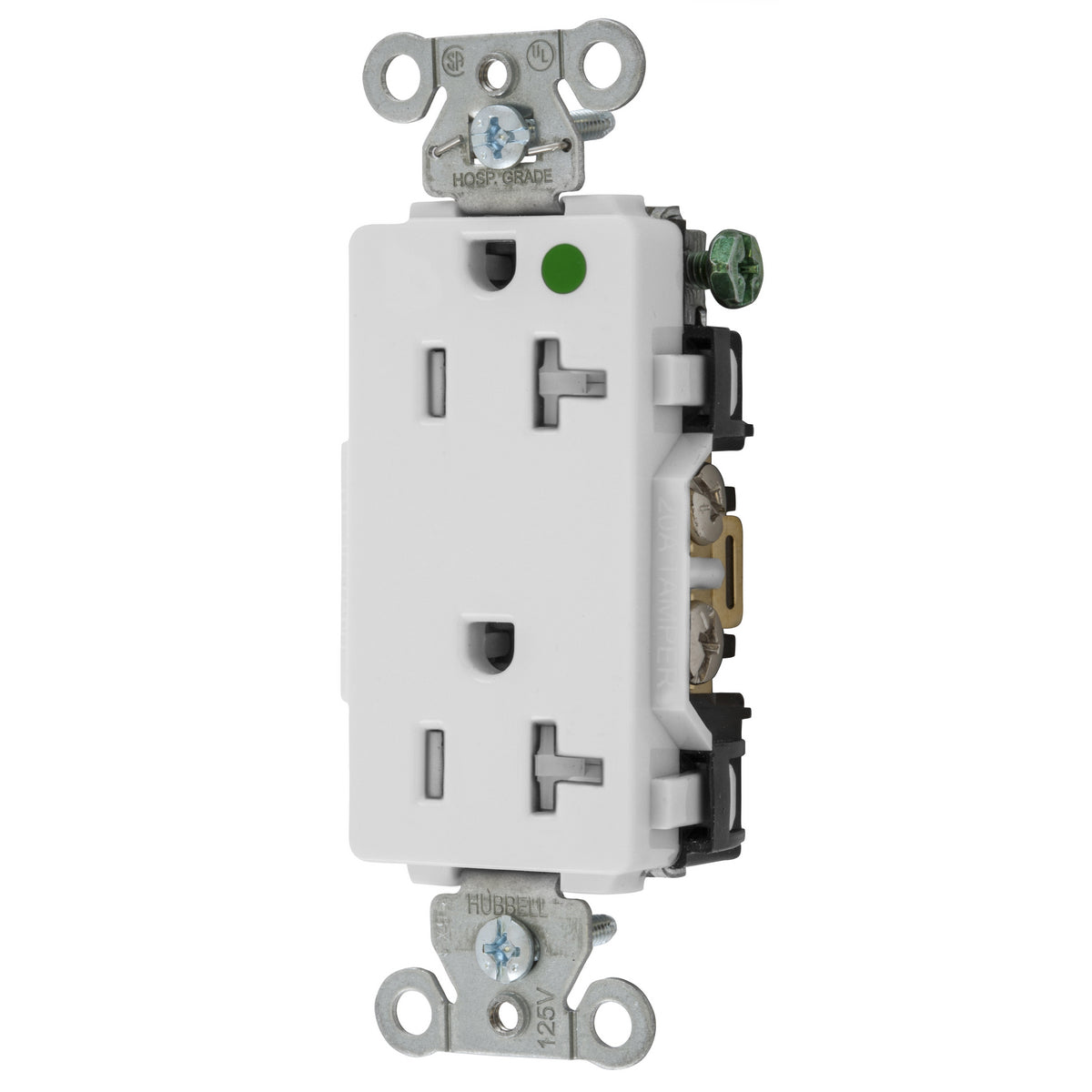

Hubbell 2182WTRA Straight Blade Tamper Resistant Decorator Duplex Receptacle 20A 125V (3.28 x 1.57 x 1.15 in) 2182WTRA

Product Description

The Hubbell 2182WTRA is a straight blade, tamper-resistant decorator duplex receptacle from the Hubbell-Pro hospital-grade series rated 20 A, 125 V (NEMA 5-20R). It provides a 2-pole, 3-wire grounding connection with screw terminals and back-and-side wiring to accept #12–#10 AWG copper conductors. Construction includes a nylon face, steel self-grounding mounting strap, triple-wipe contacts, and an operating temperature range of -40 to 75°C.

• Tamper-resistant shutters compliant with NEC; triple-wipe power contacts and nickel-plated bypass contact design
• Hospital-grade construction with steel self-grounding mounting strap, four-point grounding system, and screw terminal (back and side) wiring
• Electrical rating 20 A, 125 V; accepts #12–#10 AWG; dielectric strength 2,000 V minimum; operating -40 to 75°C

Product Highlights

Hospital-grade tamper-resistant 20A/125V decorator duplex with triple-wipe contacts, screw terminals, and -40 to 75°C operating range

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 2182WTRA
• Country of Origin: USA

Technical Specifications

• Brand: Hubbell
• Manufacturer Part Number: 2182WTRA
• Type: Straight blade decorator duplex receptacle
• Series: Hubbell-Pro
• NEMA Rating: 5-20R
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Power Rating: 2500 W
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Material: Nylon face; polybutylene terephthalate base
• Mounting Type: Screw mount; steel self-grounding mounting strap
• Terminal Type: Screw (back and side wiring)
• Wire Size: #12 to #10 AWG
• Contact Type: Triple-wipe power contacts; nickel-plated bypass contact design
• Grounding System: Four-point grounding
• Dielectric Strength: Withstands 2,000 V minimum
• Operating Temperature: -40 to 75 °C
• Dimensions: 3.28 x 1.57 x 1.15 in
• Certifications: UL 498; CSA C22.2 No. 42; Federal Specification W-C-596; NEMA WD-6
• Flammability Rating: UL 94V-2
• Performance: Certified for current interrupting at full rated current
