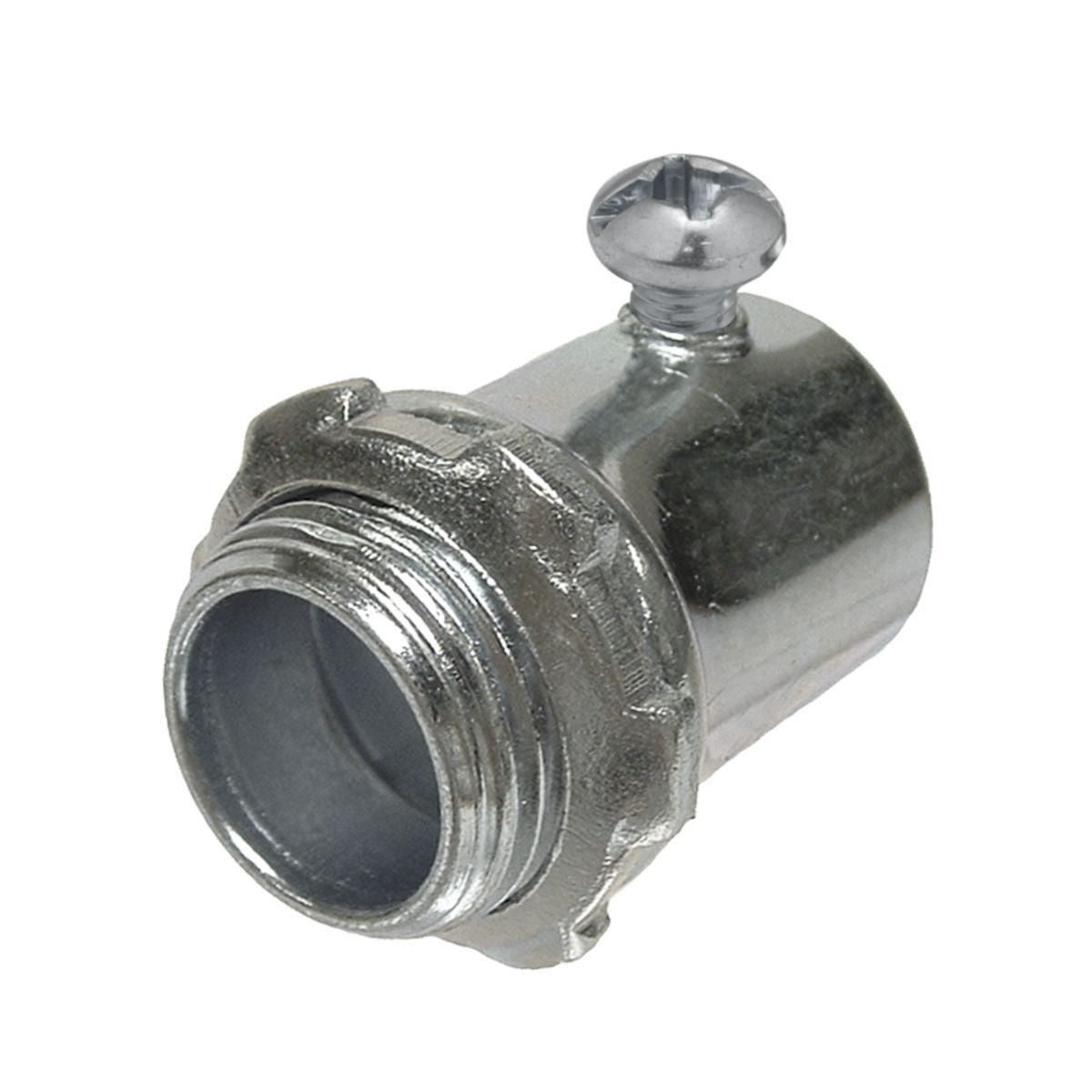

Hubbell 2140 RACO Connector RGD/EMT Set Screw 2-1/2 In

Product Description

The Hubbell 2140 RACO Connector is a non-insulated set screw connector designed for use with EMT, IMC, and rigid conduit. This connector provides a secure and reliable method for bonding conduit to boxes or enclosures in dry locations. It features steel construction with an electro-plated zinc finish for corrosion resistance and added strength.

• Suitable for applications above 600 VAC
• Provides concrete-tight connections when taped
• Threaded mounting for secure installation

Product Highlights

The Hubbell 2140 ensures mechanical protection for raceways and supports UL-approved installations for maximum design flexibility.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: 2140

Technical Specifications

• Application: Used in dry locations to bond EMT conduit to a box or enclosure and electrical applications
• Color: Silver
• Dimensions: 3.2 inches long
• Finish: Electro-Plated Zinc
• Material: Steel
• Mounting Type: Threaded
• Standards/Approvals: UL 514B File No. E195969/E195970, CSA Certified, cULus Listed, CSA C22.2 No. 18
• Suitable For Use With: EMT, IMC, Rigid Conduit
• Trade Size: 2-1/2 inches
• Type: Non-Insulated Set Screw
