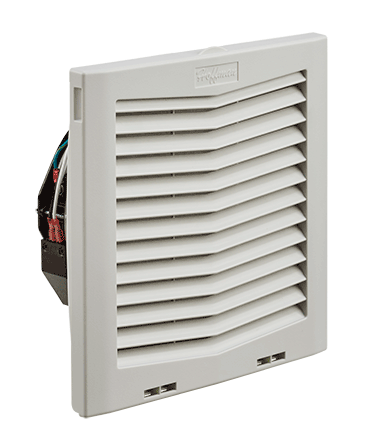

Hubbell 20509002 HF1024514 Hoffmann IP55 10IN Filter Fan 24V 7035

Product Description

The Hoffman Filter Fan, model 20509002, is made by Hubbell. This fan operates at twenty-four volts DC and draws zero point eighty-eight amperes. It is suitable for applications that require consistent airflow and cooling. The fan has a sound level of fifty-three to fifty-six decibels and provides an airflow rate of one hundred three cubic feet per minute. Its side mount design fits easily into enclosures.

• Click fit design installs quickly without tools
• Easy filter replacement
• Standard rope gasket for proper enclosure sealing

Product Highlights

The Hoffman filter fan is designed for NEMA twelve and IP fifty-five environments, making it ideal for industrial and automation processes.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: 20509002

Technical Specifications

• Air Flow Rate: 103 cfm
• Amperage Rating: 0.88 A
• Application: Industrial Automation, Food and Beverage Processes
• Dimensions: 10.13 in H x 10.14 in W x 5.18 in D
• Enclosure: NEMA 12/IP55
• Grille Material: ABS
• Mounting Type: Side
• Power Rating: 21.1 W
• Sound Level: 53/56 dB
• Speed: 3750 rpm
• Voltage Rating: 24 VDC
• Standards/Approvals: cUL Listed, CE/EAC Certified, RoHS Compliant
