Product Description

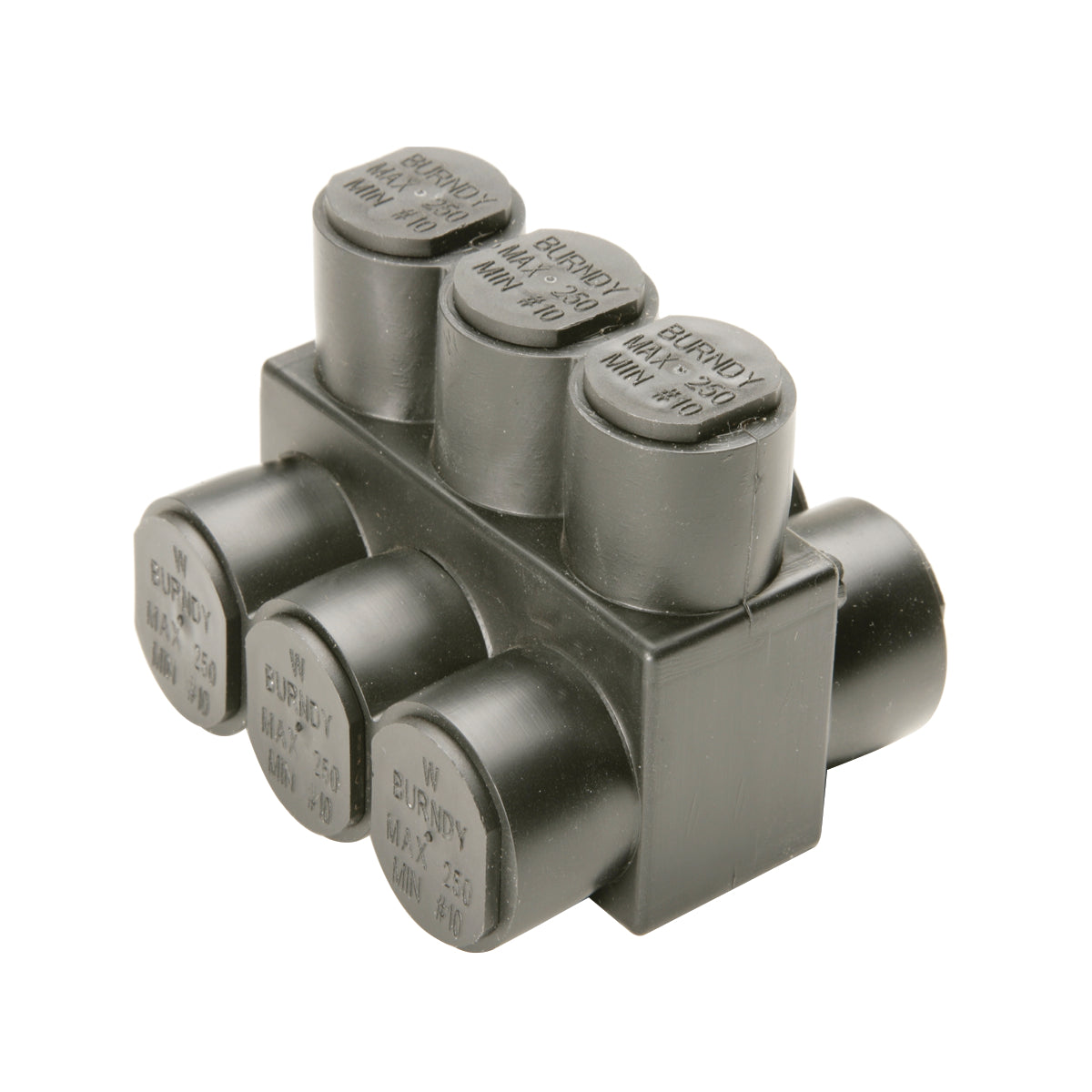

The Hubbell 1PLD6003 is a BURNDY® UNITAP™ Multi-Port Connector designed for use with copper, aluminum, and stranded conductors. This connector supports sizes from four AWG to six hundred kcmil and is rated for six hundred VAC.
- 3-port, 2-sided entry Type BIBD design.
- UV rated plastisol coating to enhance durability.
- Requires 375 in-lb installation torque for secure connections.
Product Highlights
The UNITAP™ features a pre-installed oxide inhibitor, preventing moisture and contaminants from affecting the connection. Its compact dimensions allow for simple installation in various indoor settings.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Application: Indoor
Technical Specifications
-
Conductor Size: 4 AWG to 600 kcmil
-
Voltage Rating: 600 VAC
-
Torque Requirement: 375 in-lb
-
Temperature Rating: 90 deg C
-
Material: Aluminum
-
Dimensions: 3.77 in L x 3 in W x 2.75 in H
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486B, CSA Certified, Buy American Act Compliant
