Product Description

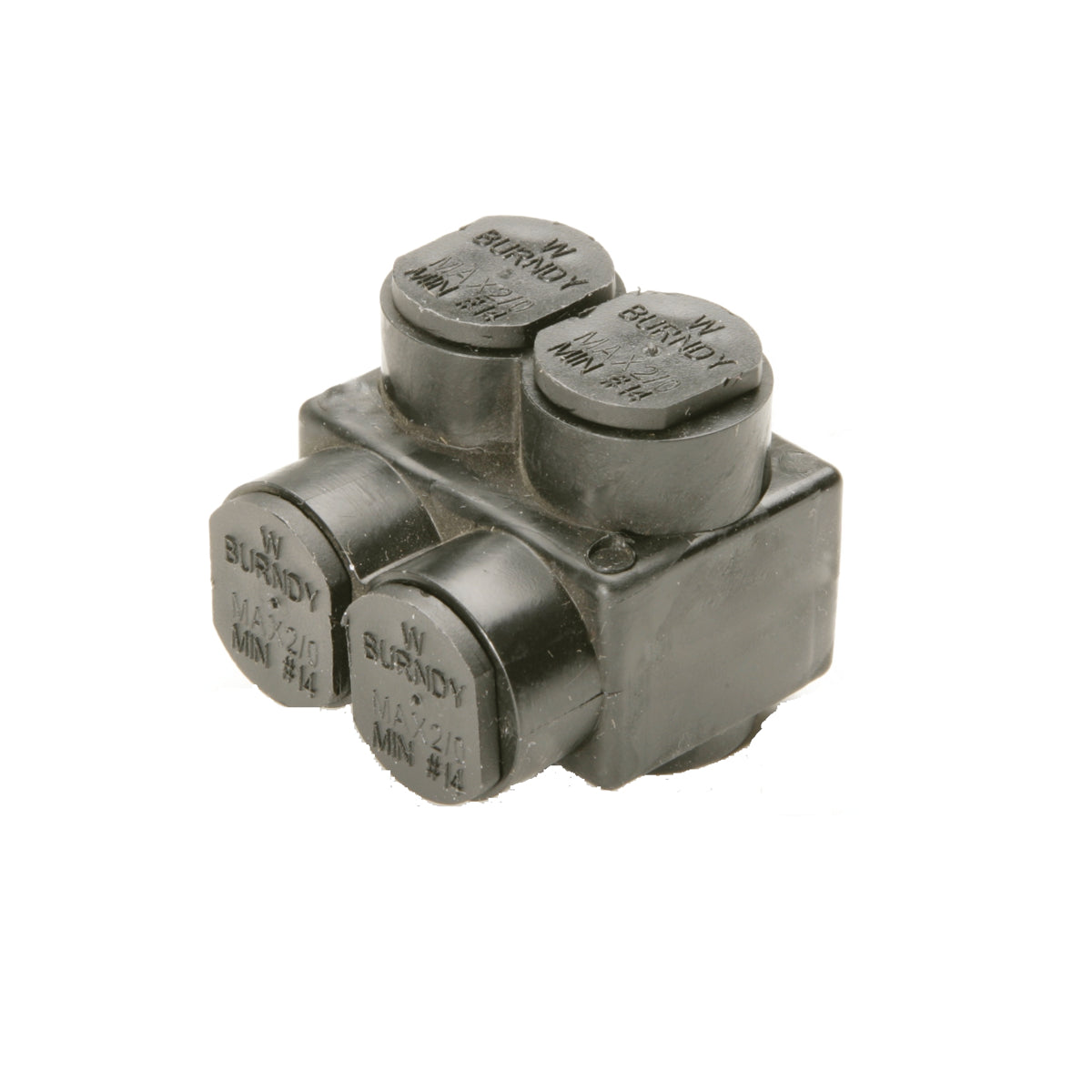

The Hubbell 1PL2/02 is a multi-tap connector ideal for use in electrical systems. Designed for 14 to 2/0 AWG conductors, this connector supports both aluminum and copper stranded wire. Its one-sided entry design is efficient in connecting multiple conductors in a compact space.
- Usage with 600 VAC rated systems
- Includes oxide inhibitor to prevent moisture and contaminants
- Accommodates a range of conductor sizes in a single product
Product Highlights
The Hubbell 1PL2/02 is suitable for indoor applications and complies with several standards, ensuring safety and reliability in installations.
Product Information
Standard Information
-
Application: For copper or stranded aluminum
-
Manufacturer: Hubbell
Technical Specifications
-
Conductor Size: 14 to 2/0 AWG
-
Conductor Type: Aluminum/Copper Stranded
-
Voltage Rating: 600 VAC
-
Temperature Rating: 194 deg F
-
Dimensions: 1.52 in L x 1.4 in W x 1.38 in H
-
Manufacturer Part Number: 1PL2/02
-
Material: Aluminum
-
Specifications: 3/16 in Hex Key, 120 in-lb Torque Multi-Port
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
