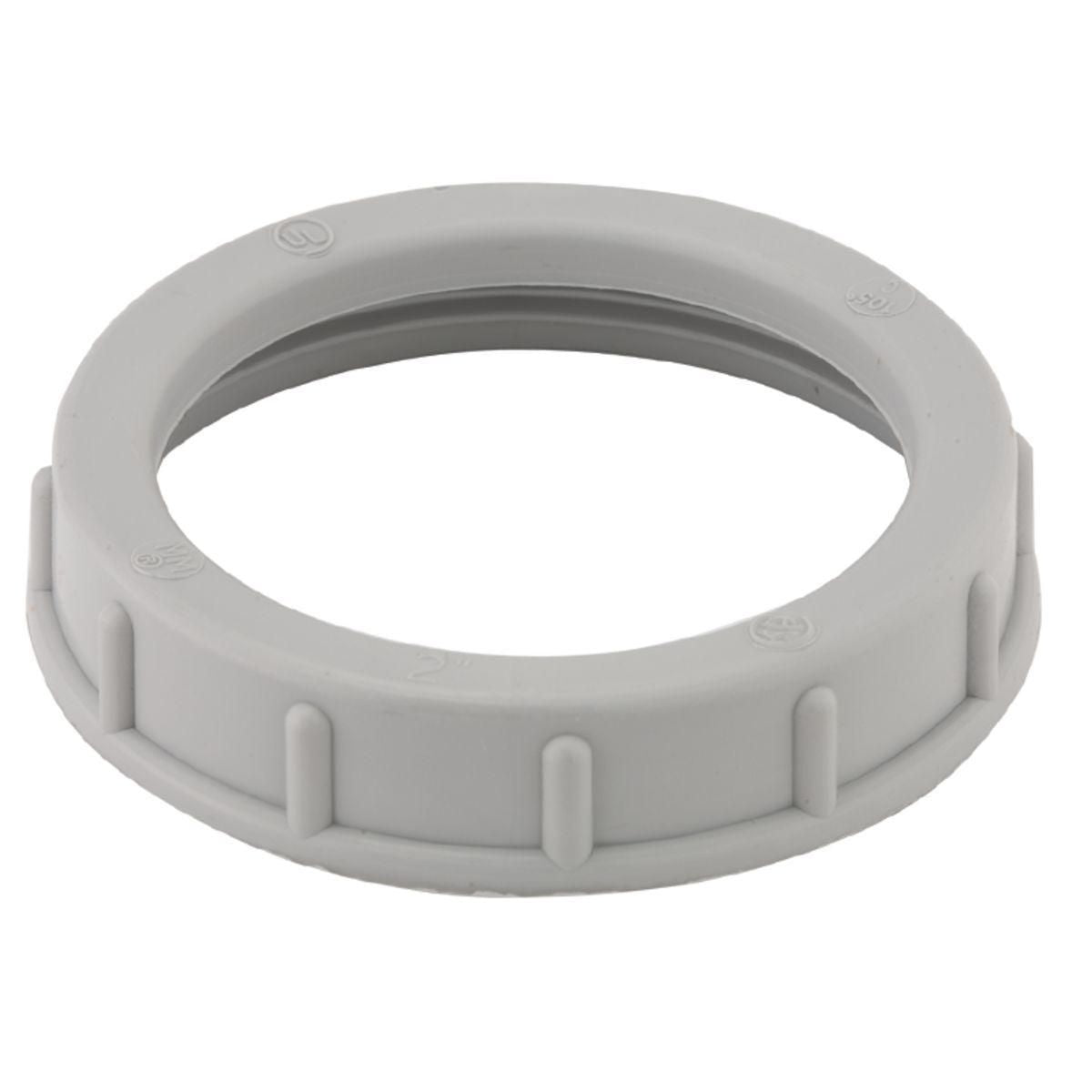

Hubbell 1414 RACO BSHG PASTIC 3-1/2TS 105DEGC 05016901414

Product Description

The Hubbell RACO 1414 conduit bushing is designed for use with threaded rigid and Intermediate Metal Conduit (IMC). This bushing is made from polypropylene and electro-plated zinc, providing durability and reliability in various electrical applications.

• Fits 3-1/2 inch systems.
• Insulated and suitable for various environments.
• Temperature rated up to 113 degrees Celsius.

Product Highlights

The RACO 1414 bushing ensures a smooth entry into raceways, which helps to prevent damage to cables and enhances the overall safety of installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 05016901414

Technical Specifications

• Application: Used on threaded rigid/IMC conduits and electrical applications
• Color: Gray
• Dimensions: 3-11/32 inches ID x 4-13/32 inches OD x 11/16 inches THK
• Finish: Electro-Plated Zinc
• Insulated/Non-Insulated: Insulated
• Manufacturer Part Number: 1414
• Material: Polypropylene
• Temperature Rating: 113 degrees Celsius
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL 514B, CSA Certified
