Product Description

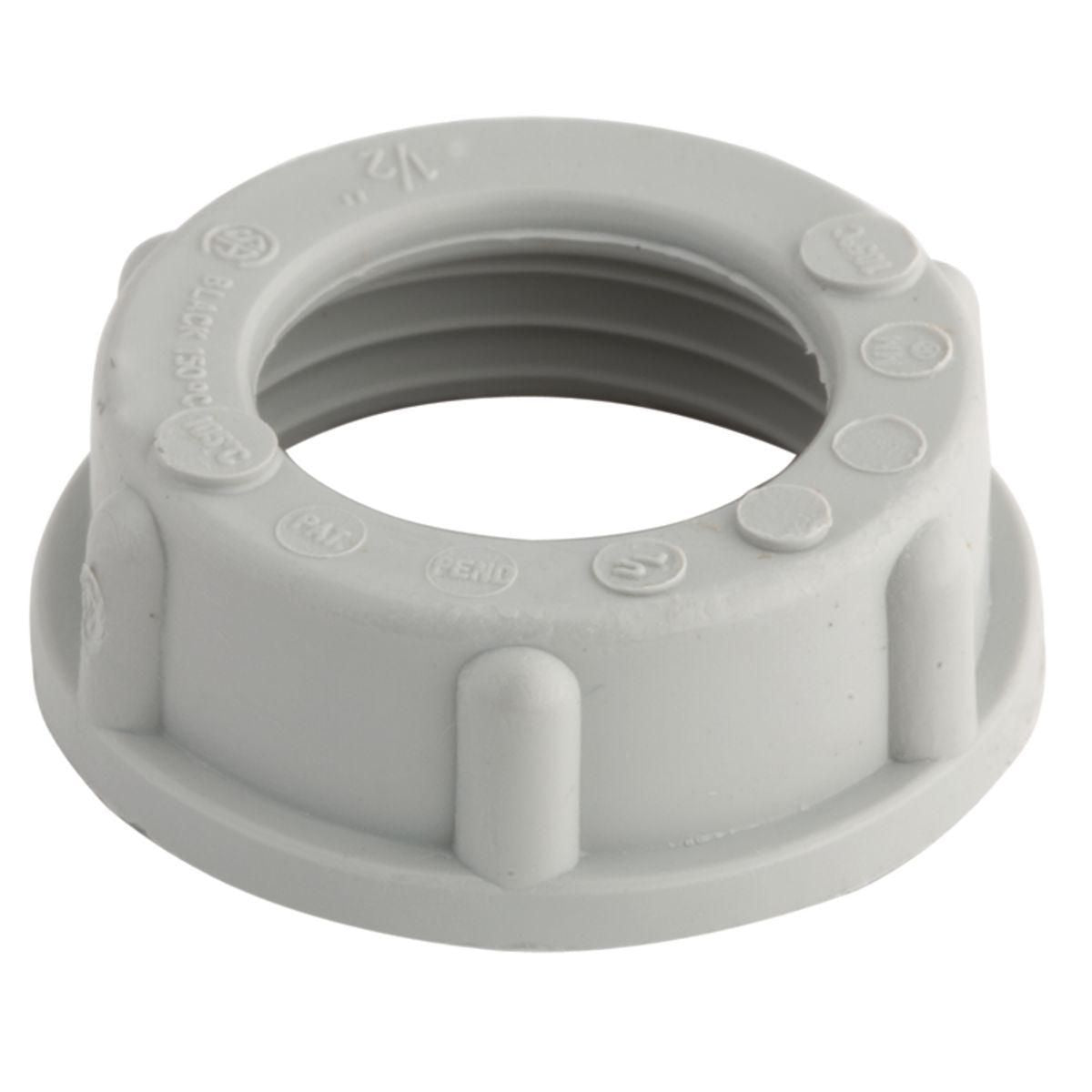

The Hubbell 1404 RACO Insulating Bushing is a conduit accessory designed for electrical applications. This product is made for use on threaded rigid and IMC conduits, providing a smooth transition at the entrance of raceways.
- Constructed with high-impact polypropylene
- Features insulation for additional protection
- Compatible with 1-11 - 1/2 NPT threads
Product Highlights
This insulating bushing promotes safety and functionality in electrical conduit systems.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 05016901404
Technical Specifications
-
Application: Used on threaded rigid/IMC conduits and electrical applications
-
Color: Gray
-
Dimensions: 1 inch ID x 1-5/8 inches OD x 31/64 inch THK
-
Finish: Electro-Plated Zinc
-
Insulated/Non-insulated: Insulated
-
Manufacturer Part Number: 1404
-
Material: Polypropylene
-
Temperature Rating: 107 degrees C
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, UL 514B, E195973, CSA Certified, PROP65: Cancer - www.P65Warnings.ca.gov
