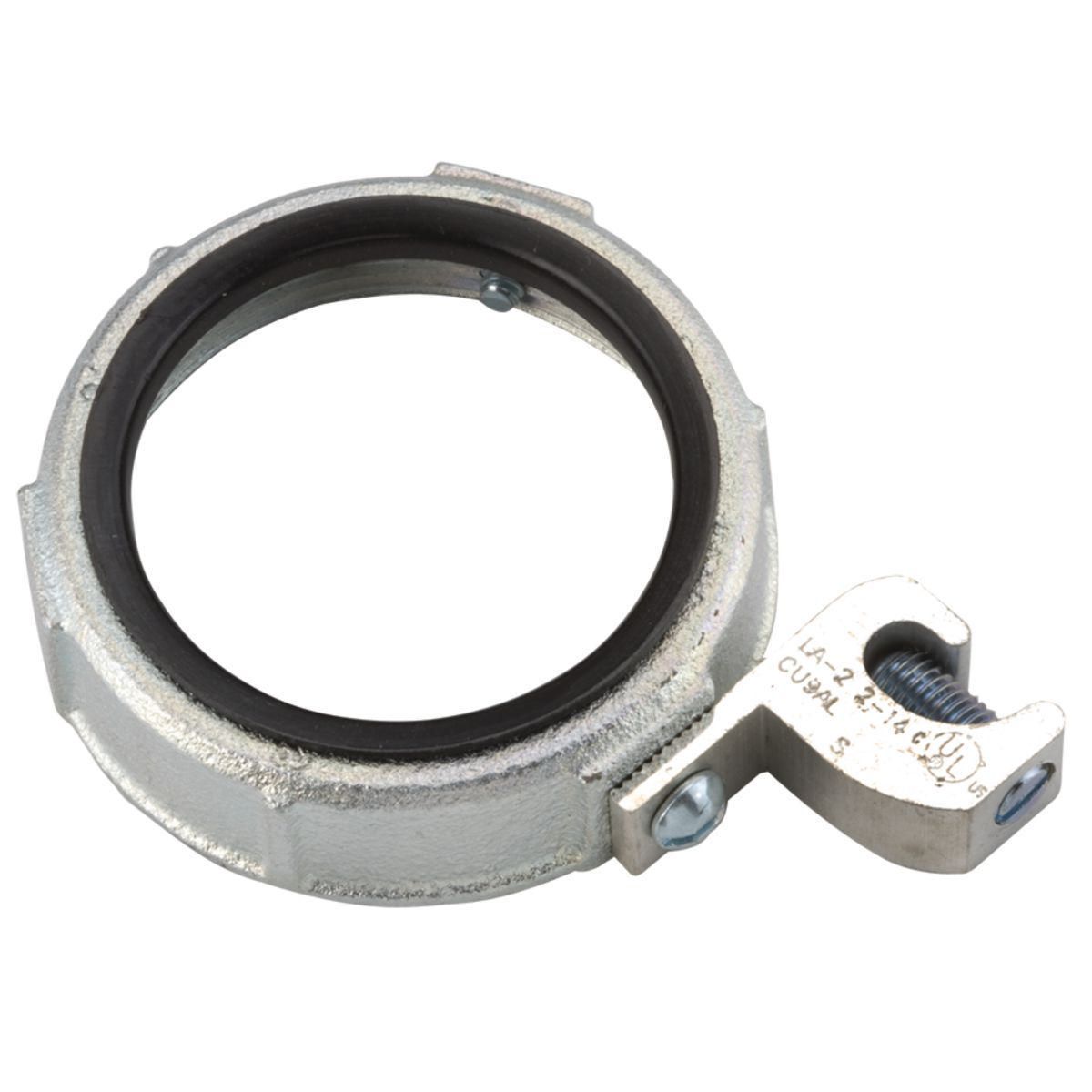

Hubbell 1294 Grounding Conduit Bushing With Lay-In Lug 3-1/2 in

Product Description

The Hubbell 1294 is a grounding conduit bushing designed for use with six AWG to two hundred fifty kcmil AC cable sizes. This product features a lay-in lug, making it easy to insert a ground wire. The insulated design is suitable for both insulated and non-insulated applications. This bushing is constructed from malleable iron and is electro-plated for zinc corrosion protection, ensuring durability and long-lasting performance.

• Compatible with 6 AWG to 250 kcmil AC cable sizes.
• Made from malleable iron with electro-plated zinc finish.
• Temperature rated up to 150 degrees Celsius.

Product Highlights

The Hubbell 1294 ensures reliable grounding for threaded rigid and IMC conduit systems through its insulated design.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 05016901294

Technical Specifications

• AC Cable Size: 6 AWG to 250 kcmil
• Application: Used on threaded rigid/IMC conduit to provide a means of grounding
• Dimensions: 15/16 in ID x 4-13/32 in OD x 3-3/8 in H
• Material: Malleable Iron
• Finish: Electro-Plated Zinc
• Temperature Rating: 150 degrees Celsius
• Trade Size: 3-1/2 in
• Standards/Approvals: UL 514B, CSA C22.2 No. 18
