Hubbell 1292RAC RACO GRND BSHG LAYIN LUG 3 IN

Product Description

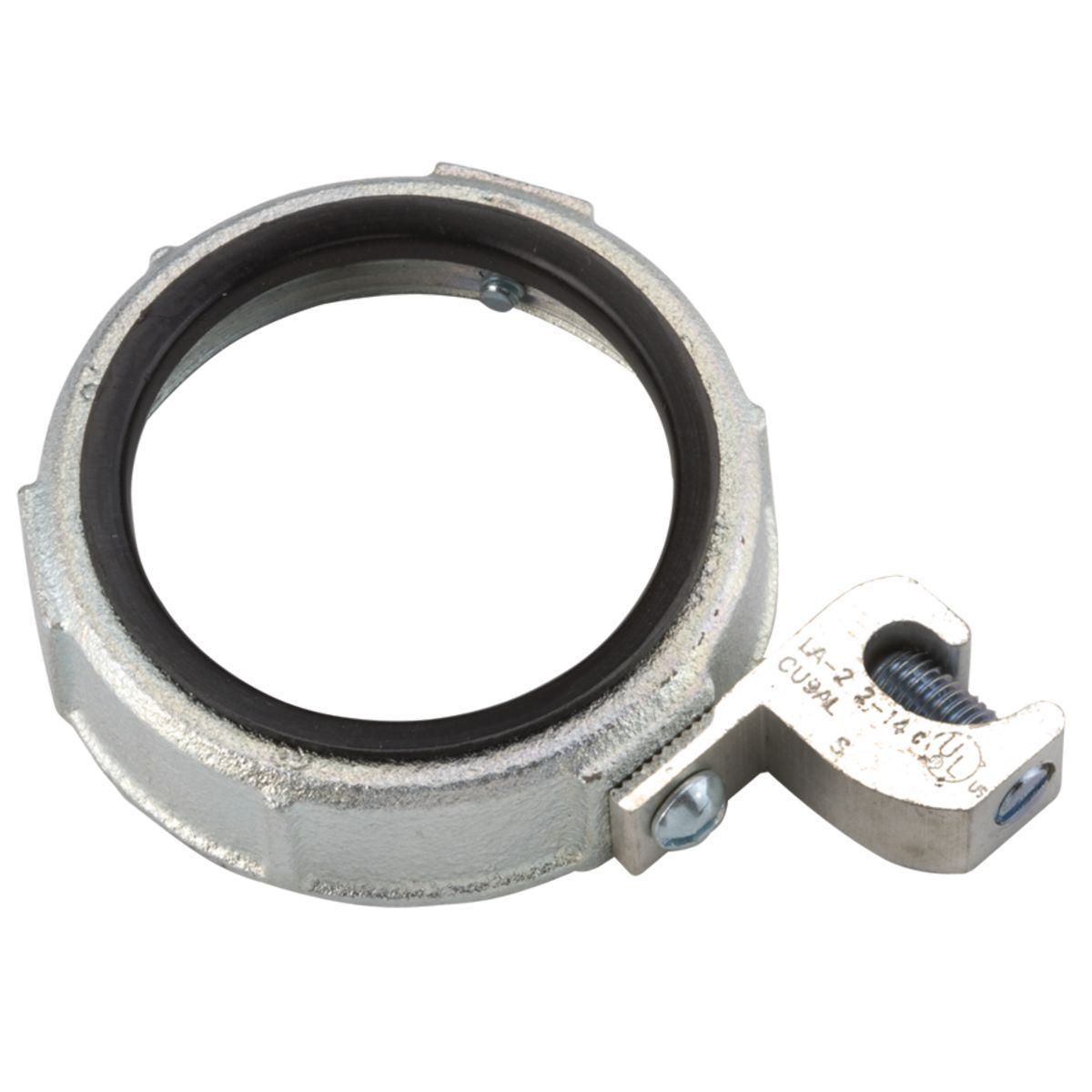

The Hubbell 1292RAC is a RACO conduit bushing designed for grounding applications. This component accommodates conductors ranging from fourteen to one aught American Wire Gauge (AWG). Intended for use with a three-inch trade conduit, it is built from malleable iron and features an electro-plated zinc finish for enhanced corrosion resistance. This product is ideal for electrical applications requiring a reliable ground pathway.

• Fits conductors from 14 AWG to 1/0 AWG
• Durable malleable iron construction
• Corrosion-resistant zinc finish

Product Highlights

This grounding bushing incorporates lay-in lug technology to simplify connections for ground wires. The two-piece design includes a bushing with an insulator and lug, ensuring mechanical protection and compliance for electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 05016901292

Technical Specifications

• AC Cable Size: 14 to 1/0 AWG
• Application: Suitable for threaded rigid and IMC conduit
• Color: Silver
• Dimensions: 15/16 in ID x 3-7/8 in OD x 2-29/32 in H
• Finish: Electro-Plated Zinc
• Insulated Non Insulated: Insulated
• Manufacturer Part Number: 1292RAC
• Material: Malleable Iron
• Standards/Approvals: UL 514B|CSA C22.2 No. 18
• Temperature Rating: 150 deg C
• Trade Size: 3 in
• Type: Grounding
