Hubbell 1290 RACO GRND BSHG LAYIN LUG 2-1/2

Product Description

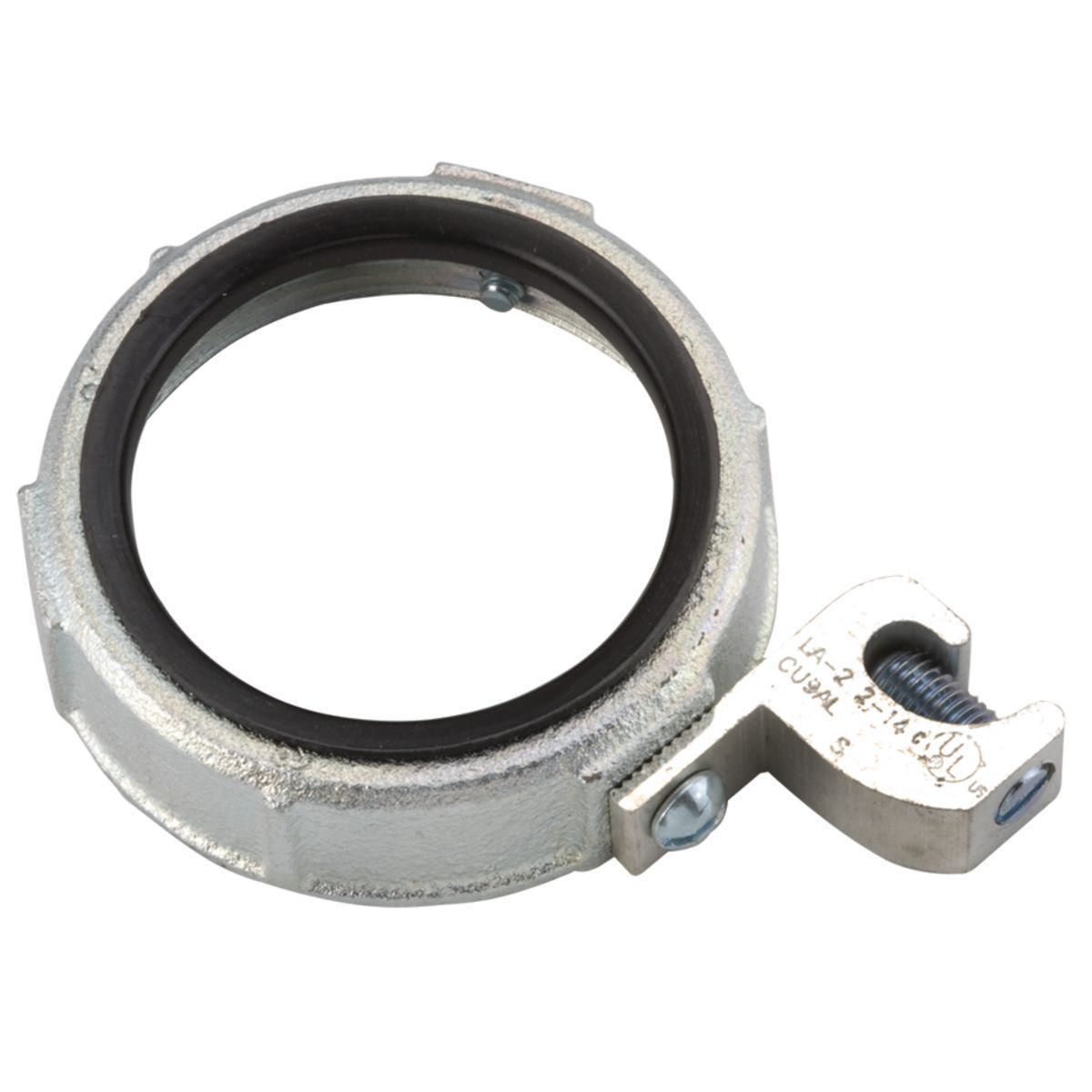

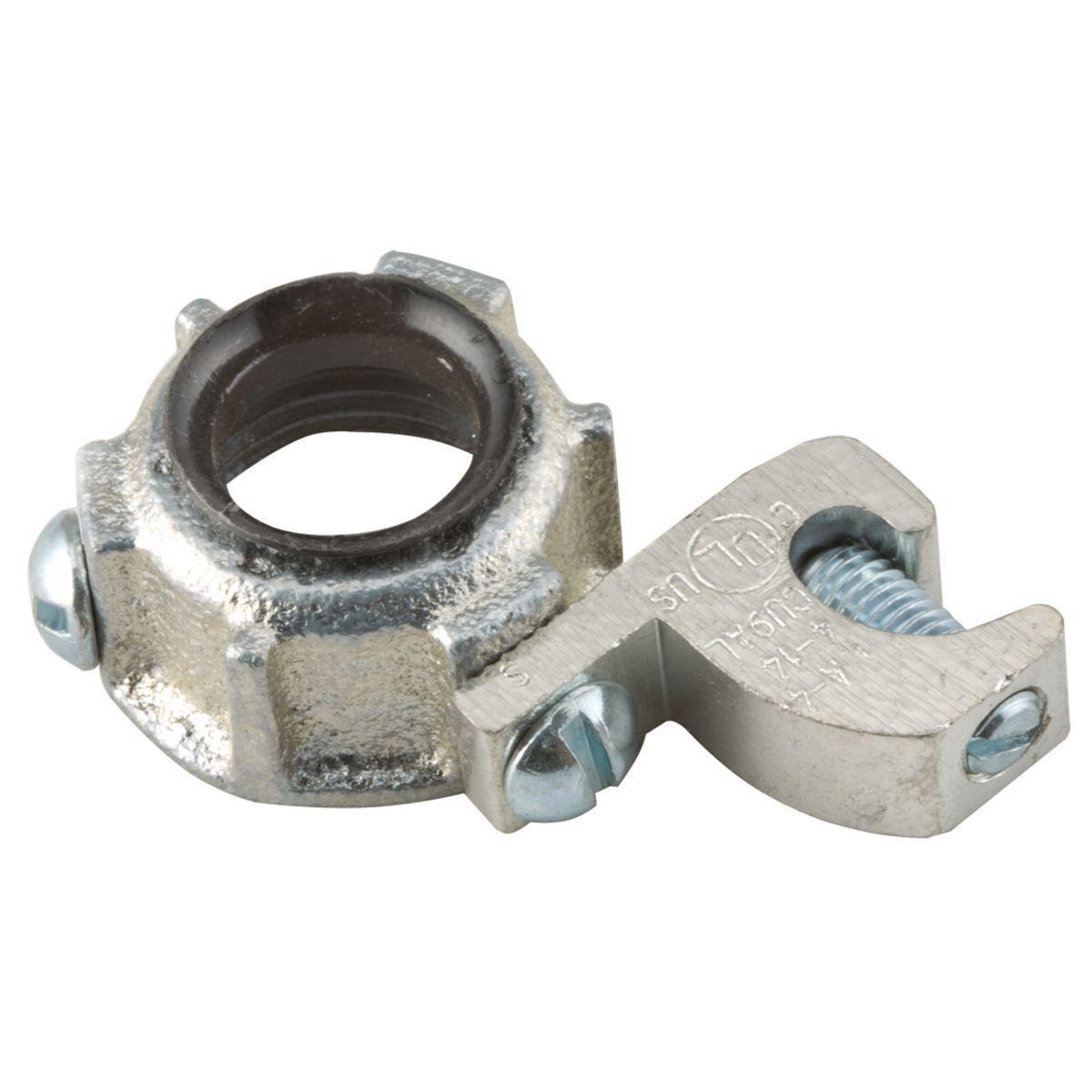

The Hubbell 1290 is a RACO Grounding Conduit Bushing designed for use with 14 to 1/0 AWG AC cable. This bushing provides a secure connection in electrical applications. It is made from malleable iron and features an electro-plated zinc finish for corrosion resistance.

• Lay-In-Lug style allows quick insertion of a ground wire.
• Assembled two-piece design includes the bushing with an insulator and lug.
• Compatible with both copper and aluminum grounding conductors.

Product Highlights

This bushing is suitable for threaded rigid and IMC conduit to ensure a reliable grounding connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 05016901290

Technical Specifications

• AC Cable Size: 14 to 1/0 AWG
• Application: Grounding conduit through insulated bushings
• Color: Silver
• Dimensions: 15/16 in ID x 3-9/32 in OD x 2-19/64 in H
• Finish: Electro-Plated Zinc
• Insulated/Non-Insulated: Insulated
• Material: Malleable Iron
• Standards/Approvals: UL 514B|CSA C22.2 No. 18
• Temperature Rating: 150 deg C
• Trade Size: 2-1/2 in
• Type: Grounding
