Product Description

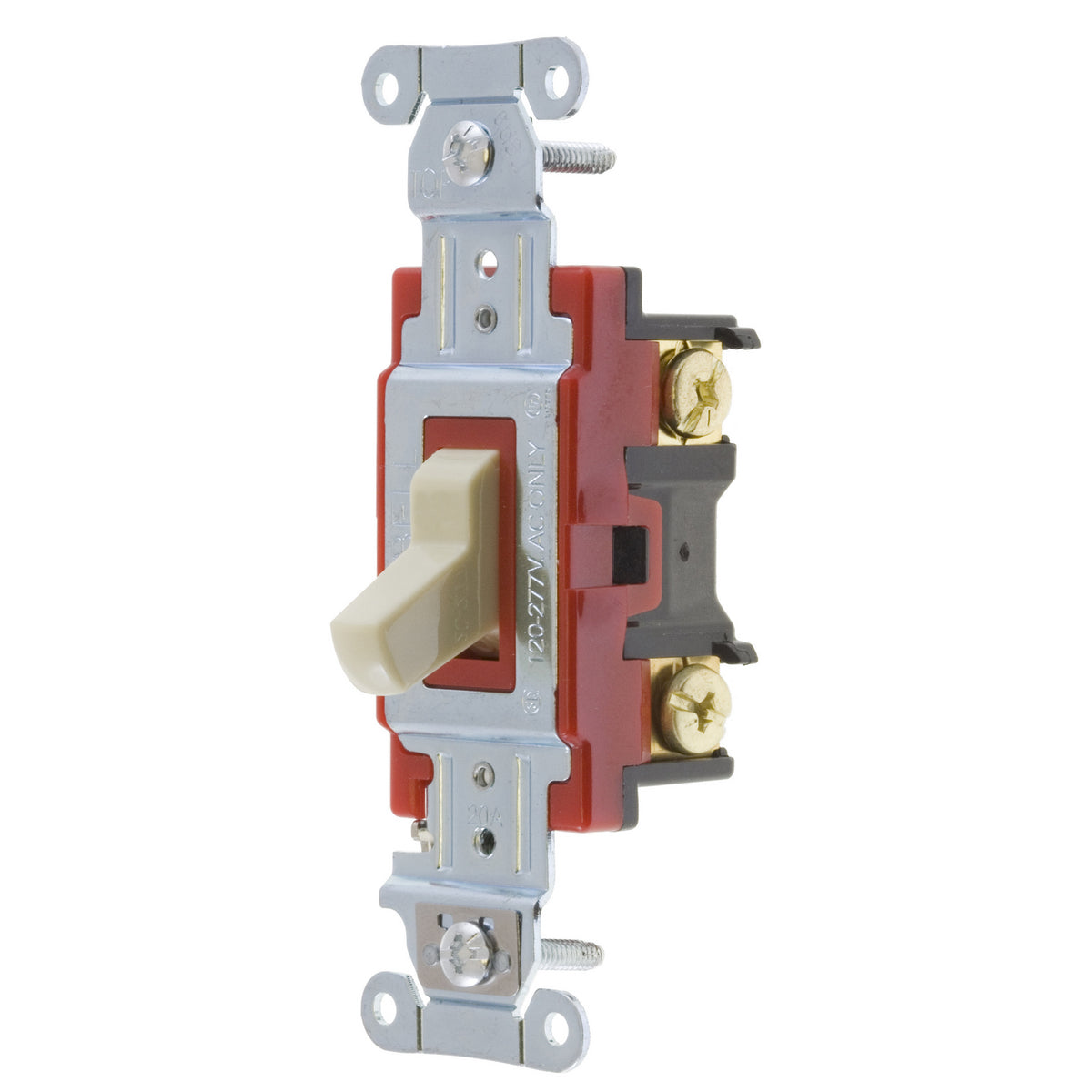

The Hubbell 1224I is a four-way heavy-duty standard AC toggle switch designed for general purpose AC applications. It operates at twenty amperes and is rated for voltage between one hundred twenty and two hundred seventy-seven. This switch is suitable for industrial and indoor dry environments. It features a two-position contact configuration and a thermoplastic body, ensuring durability in various conditions.
- Supports voltage ratings from 120 to 277 VAC
- Operating cycles rated for 50,000 for longevity
- Threaded mounting with back/side wire terminal connections
Product Highlights
Meets multiple safety and performance standards including RoHS, CSA, and UL certifications, making it a reliable choice for electricians.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: 1224I
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 20 A
-
Application: General Purpose AC, Industrial and Indoor Dry Environment
-
Color: Ivory
-
Contact Configuration: 2-Position
-
Dimensions: 4.18 x 1.49 x 1.83 inches
-
Environmental Conditions: -40 to 75 degrees Celsius
-
Material: Thermoplastic
-
Mounting: Threaded
-
Number of Poles: 2
-
Operating Cycles: 50,000 cycles
-
Power Rating: 5540 W
-
Standards/Approvals: RoHS Compliant, CSA Certified, Federal Specification W-S-896, NEMA WD1, UL 20
-
Terminal Type: Back/Side Wire
-
Type: 4-Way Heavy Duty Standard
-
Voltage Rating: 120 to 277 VAC
