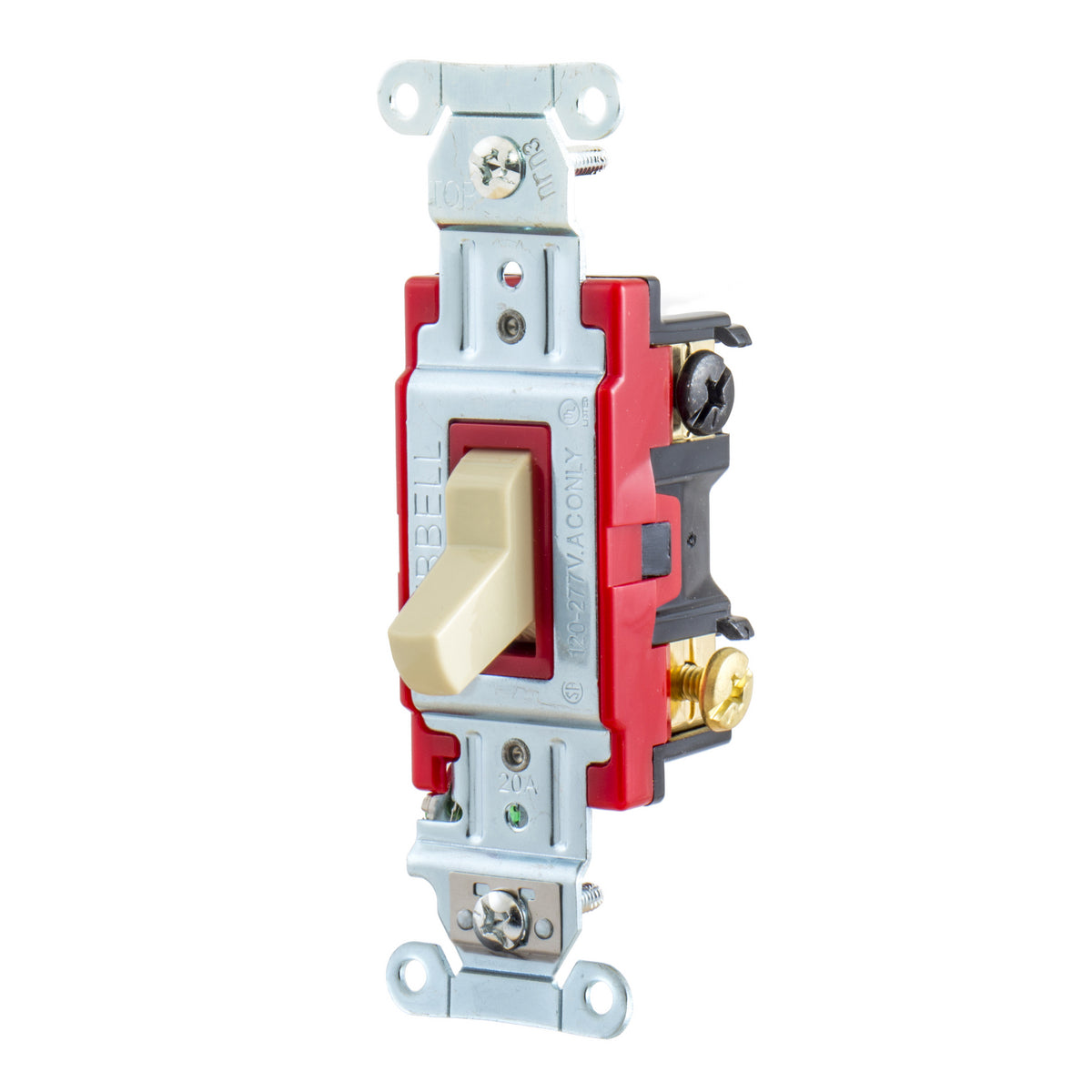

Hubbell 1223I Hubbell-PRO 3-Way Toggle Switch 20A 120/277V

Product Description

The Hubbell 1223I is a three-way toggle switch designed for general-purpose applications. This 20 amp switch operates at 120 to 277 volts and is suitable for heavy-duty industrial use. Its wiring setup allows for both back and side connections, providing versatility in installation. Made from thermoplastic material, the switch is UL listed for safety and reliability.

• 20 Amp current rating, suitable for various electrical applications
• Easy installation with back and side wiring options
• Designed for heavy-duty use in industrial environments

Product Highlights

General purpose AC toggle switch, ideal for both residential and industrial environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• MPN: 1223I
• Voltage: 120-277 Volt
• Current: 20 Amp
• Wattage: 5540 Watt

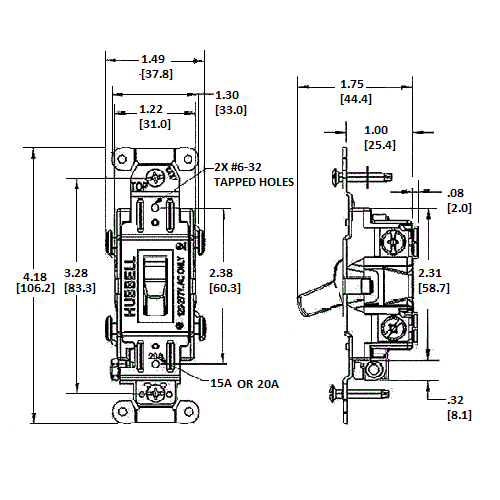

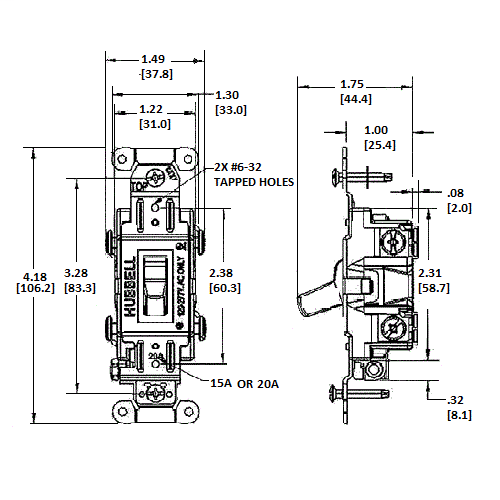

• Dimensions: 4.18 inches (Length) x 1.9 inches (Width) x 1.83 inches (Height)
• Weight: 0.2 lb
• Material: Thermoplastic
• Operating Cycles: 50000
• Operating Temperature: Maximum continuous 75C, minimum -40C
