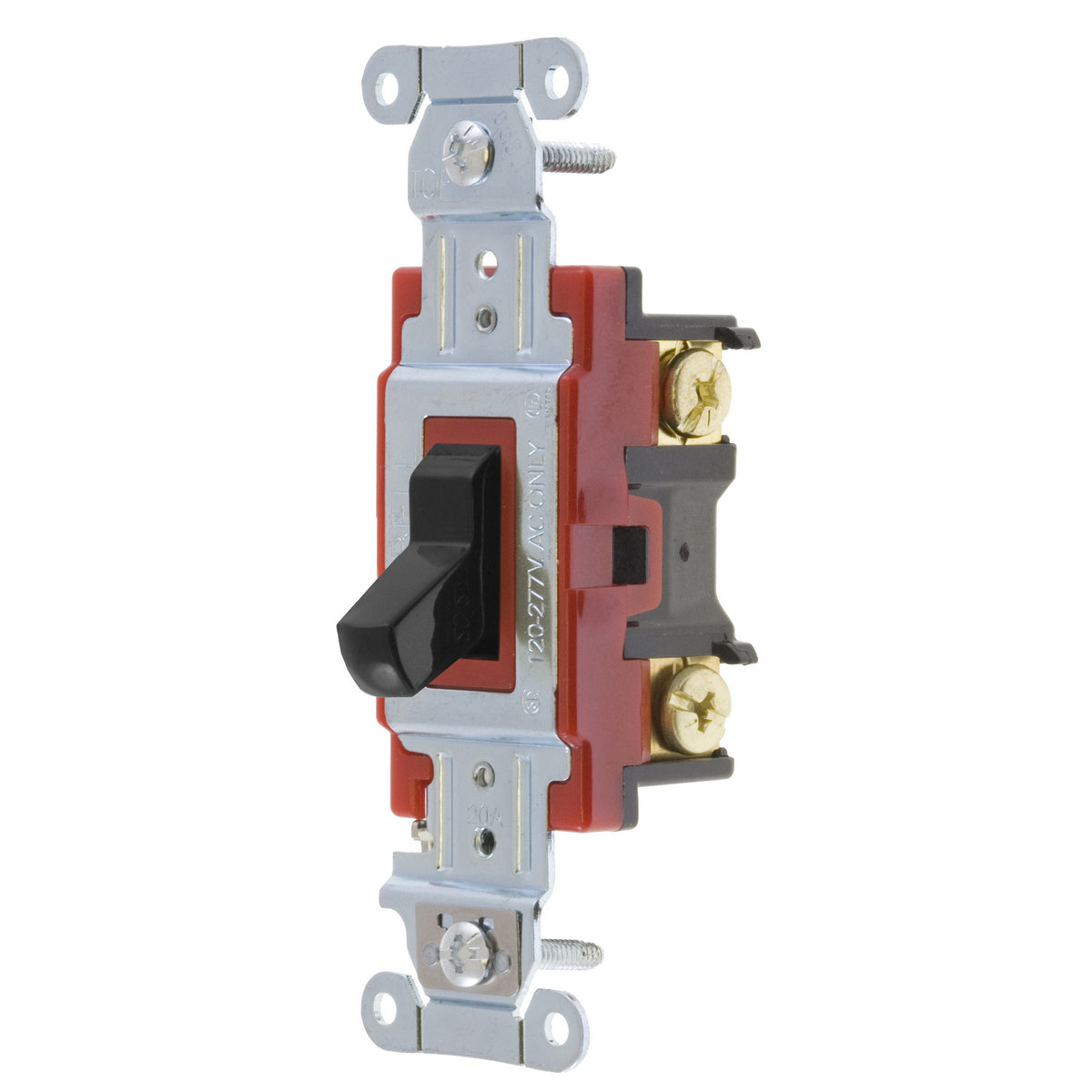

Hubbell 1223BK HUBPRO Toggle Switch 3-WAY 20A 120 to 277V

Product Description

The Hubbell 1223BK is a toggle switch designed for 3-way operation. It supports a voltage range of 120 to 277 volts and can handle a current of twenty amps. The switch features a two-position contact configuration and is suitable for various wiring needs.

• Three-way toggle switch
• Voltage rating of 120 to 277 VAC
• Durable nylon/thermoplastic construction

Product Highlights

This heavy-duty toggle switch provides reliable performance under various environmental conditions, making it suitable for residential and commercial installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358518146

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Color: Black
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon/Thermoplastic
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Power Rating: 5540 W
• Standards/Approvals: RoHS Compliant
• Terminal Type: Back/Side Wire
• Voltage Rating: 120 to 277 VAC
