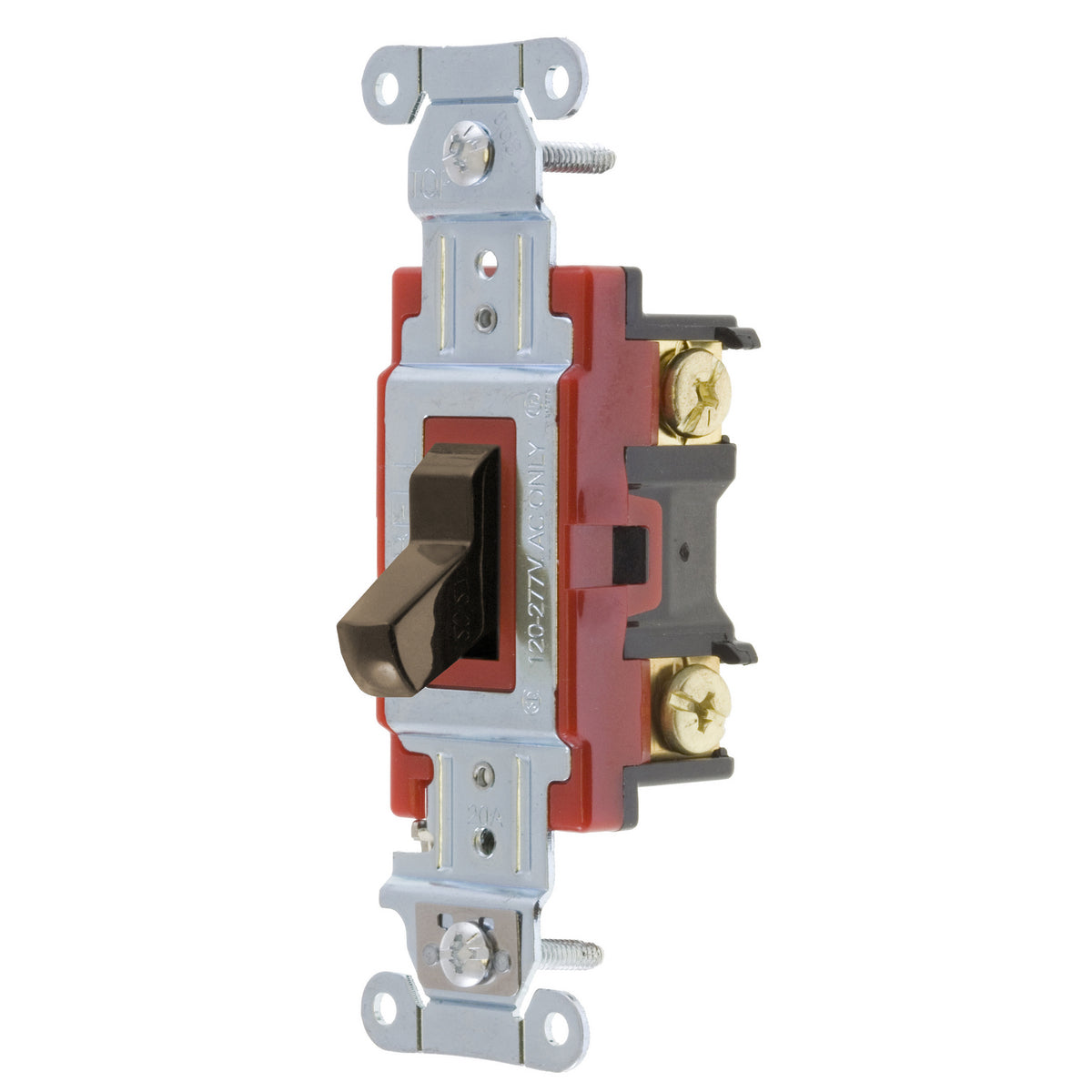

Hubbell 1223B Toggle Switch, HubPro, 3-Way, 20A 120/277V

Product Description

The Hubbell 1223B is a toggle switch designed for three-way applications. It operates on a voltage range from one hundred twenty to two hundred seventy-seven volts and supports a maximum current of twenty amps. This switch is suitable for various industrial applications.

• Rated at 5540 watts
• Durable thermoset construction
• Operating in temperatures from negative forty to seventy-five degrees Celsius

Product Highlights

The Hubbell 1223B toggle switch provides a reliable solution for controlling lighting and electrical devices in multiple locations.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: 1223B

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Application: Industrial Applications
• Color: Brown
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50,000 cycles
• Power Rating: 5540 W
• Standards/Approvals: CSA Certified, Federal Specification W-S-896, NEMA WD1, UL 20 Listed, RoHS Compliant, UL94 V-2 Flammability Rating
• Terminal Type: Screw
• Type: 3-Way General Purpose Heavy Duty Standard
• Voltage Rating: 120 to 277 VAC
