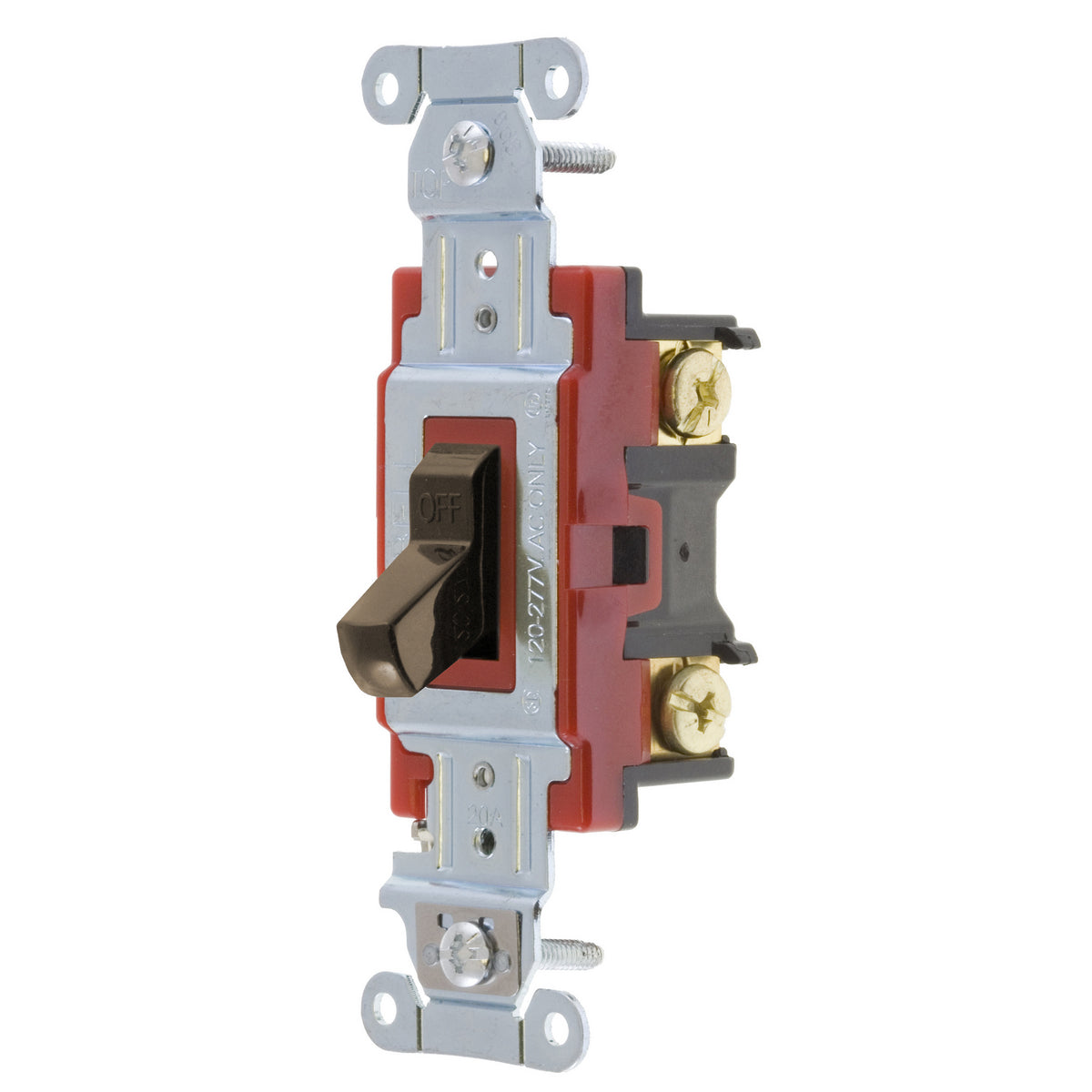

Hubbell 1221B Wiring Device-Kellems Brown 20A SP Toggle Switch

Product Description

The Hubbell Wiring Device-Kellems 1221B is a heavy duty toggle switch designed for general purpose use. This switch can operate at voltage ratings from 120 to 277 VAC and has a power rating of up to 5540 Watts. It features a two-position contact configuration and is suitable for industrial applications.

• Voltage Rating: 120 to 277 VAC
• Power Rating: 5540 W
• Operating Cycles: 50000

Product Highlights

This toggle switch offers back and side wire connections, a toggle actuator for easy operation, and features a durable thermoset material for longevity.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358583526

Technical Specifications

• Type: Heavy Duty General Purpose Standard
• Color: Brown
• Amperage Rating: 20 A
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees C
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000
• Standards/Approvals: CSA Certified, Federal Specification W-S-896, NEMA WD1, UL 20 Listed, RoHS Compliant
• Terminal Type: Screw
• Application: Industrial Applications
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
