Hubbell 1215 RACO GRND BSHG LAYIN LUG 1-1/4

Product Description

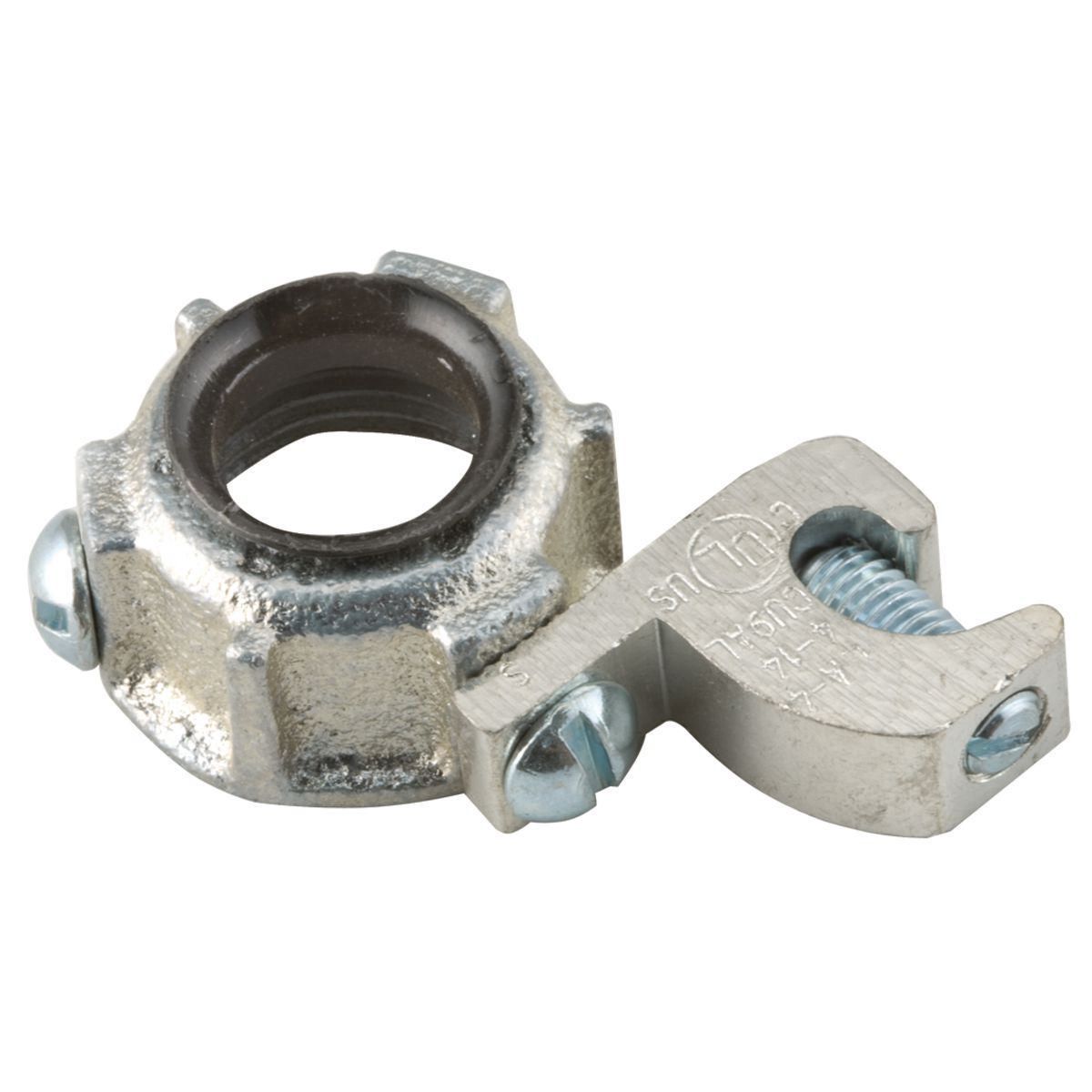

The Hubbell 1215 is a RACO Grounding Conduit Bushing designed for use with 14 to 4 AWG AC cables. This product features a lay-in lug for easy insertion of the ground wire, making it suitable for threaded rigid and IMC conduit applications. The bushing is constructed from malleable iron and is electro-plated with zinc for corrosion resistance.

• Easy installation with lay-in lug design
• Malleable iron provides mechanical protection
• Compatible with both copper and aluminum grounding conductors

Product Highlights

This grounding conduit bushing is ideal for electrical applications that require reliable grounding. It has a temperature rating of one hundred fifty degrees Celsius and is UL 514B and CSA C22.2 No. 18 approved.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: 1215

Technical Specifications

• AC Cable Size: 14 to 4 AWG
• Application: Grounding conduit through insulated bushing
• Color: Silver
• Dimensions: twenty one thirty-seconds inches ID x two and one eighth inches OD x one and nine thirty-seconds inches H
• Finish: Electro-Plated Zinc
• Insulated Non Insulated: Insulated
• Material: Malleable Iron
• Standards/Approvals: UL 514B, CSA C22.2 No. 18
• Temperature Rating: one hundred fifty degrees Celsius
• Trade Size: one and one fourth inches
• Type: Grounding
