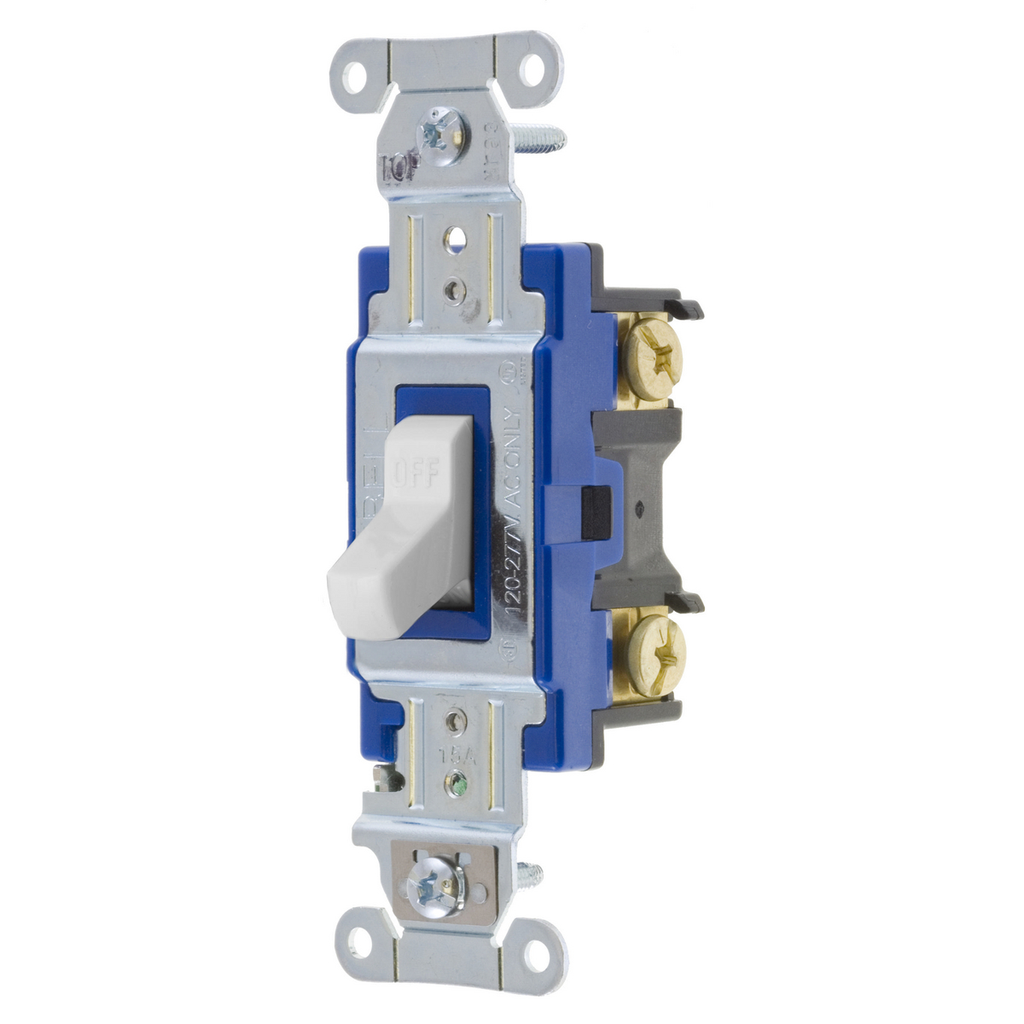

Hubbell 1201W SWITCH, HUBPRO, 1-POLE, 15A 120/277V, WH

Product Description

The Hubbell 1201W is a toggle switch designed for general purpose use. It is suitable for both residential and commercial applications. This single pole switch operates at a current of fifteen amps and supports voltage ranges from one hundred twenty to two hundred seventy-seven volts. The back and side wiring feature simplifies installation.

• Steel, zinc plated bridge is corrosion resistant
• Color coded by amperage for easy inspections
• Strip gauge included for accurate wiring

Product Highlights

The Hubbell 1201W provides reliable operation in heavy-duty industrial settings or general use. Its toggle action allows for easy on/off control, making it a versatile option for various applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: General Purpose

Technical Specifications

• MPN: 1201W
• Current Rating: 15 A
• Voltage Rating: 120-277 VAC
• Action: Positive Snap, Off
• Height: 1.83 inches
• Width: 1.90 inches
• Length: 4.18 inches
• Wattage: 4.155 W
• Material: Thermoplastic
• Mounting: Screw Mount
• Operating Temperature: -40 degrees C
• Contact Configuration: Two Position
• Operating Cycles: 50000
