Product Description

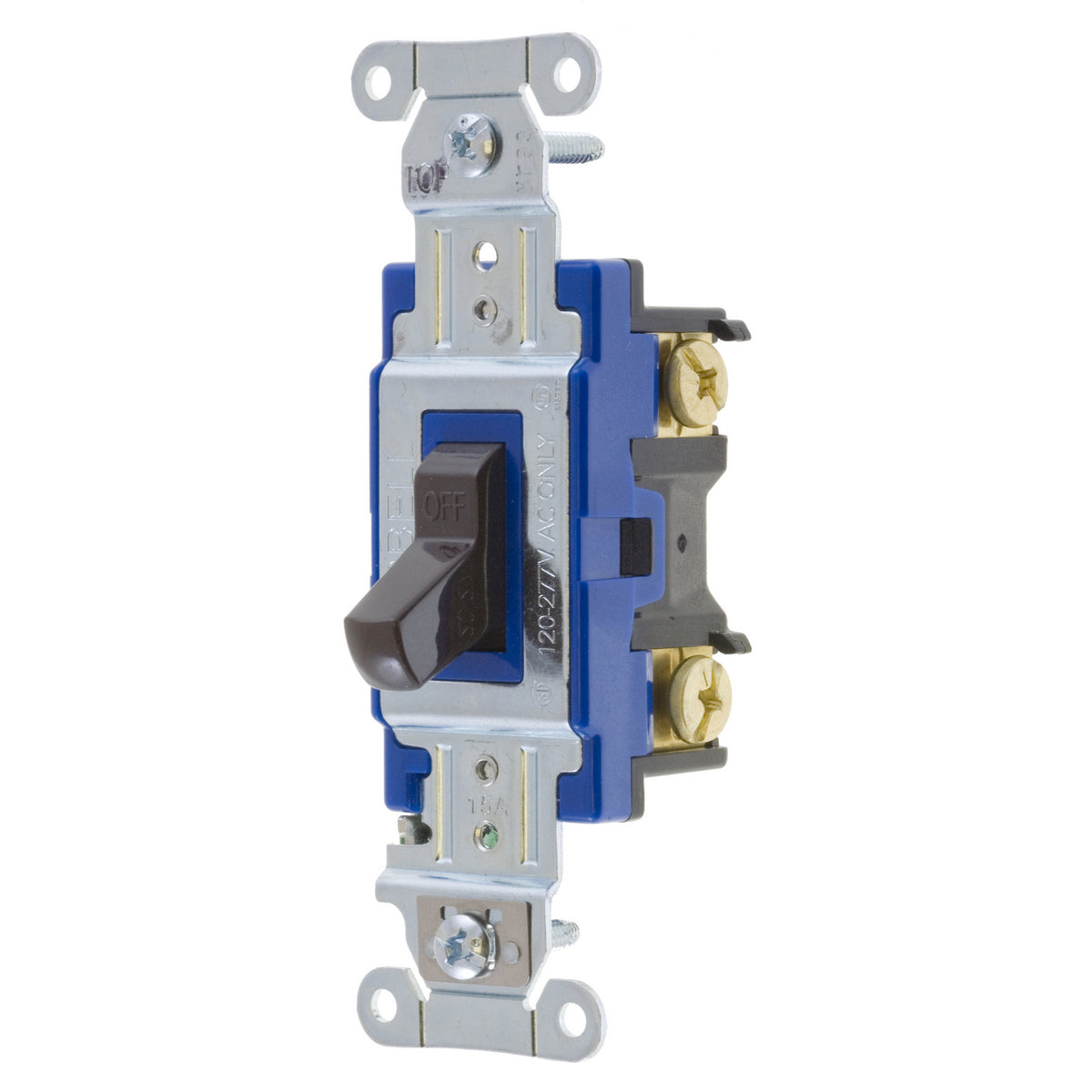

The Hubbell 1201B Wiring Device-Kellems HUBBELL-PRO Toggle Switch is designed for general purpose use. It operates at 120 to 277 VAC and has a current rating of 15 A, with a power rating of 4155 W. This toggle switch features a two-position contact configuration and is suitable for threaded mounting. The back and side terminals allow for various wiring options. It is constructed from thermoplastic and designed to withstand environmental conditions ranging from -40 to 75 degrees Celsius.
- Single pole toggle actuator
- Rated for industrial applications
- Color-coded by amperage for easy inspection
Product Highlights
This heavy duty toggle switch is built to last and can handle 50000 operating cycles. Its robust construction ensures reliability in indoor dry environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: 1201B
Technical Specifications
-
Type: General Purpose Heavy Duty Standard
-
Color: Brown
-
Actuator: Toggle
-
Material: Thermoplastic
-
Dimensions: 4.18 x 1.49 x 1.83 inches
-
Voltage Rating: 120 to 277 VAC
-
Amperage Rating: 15 A
-
Power Rating: 4155 W
-
Terminal Type: Back/Side Wire
-
Operating Cycles: 50000 cycles
-
Environmental Conditions: -40 to 75 degrees Celsius
-
Standards/Approvals: RoHS Compliant, CSA Certified, UL94 V-2 Flammability Rating, UL 20, Federal Specification W-S-896
-
Contact Configuration: 2-Position
-
Mounting: Threaded
-
Application: Industrial Applications and Indoor Dry Environment
