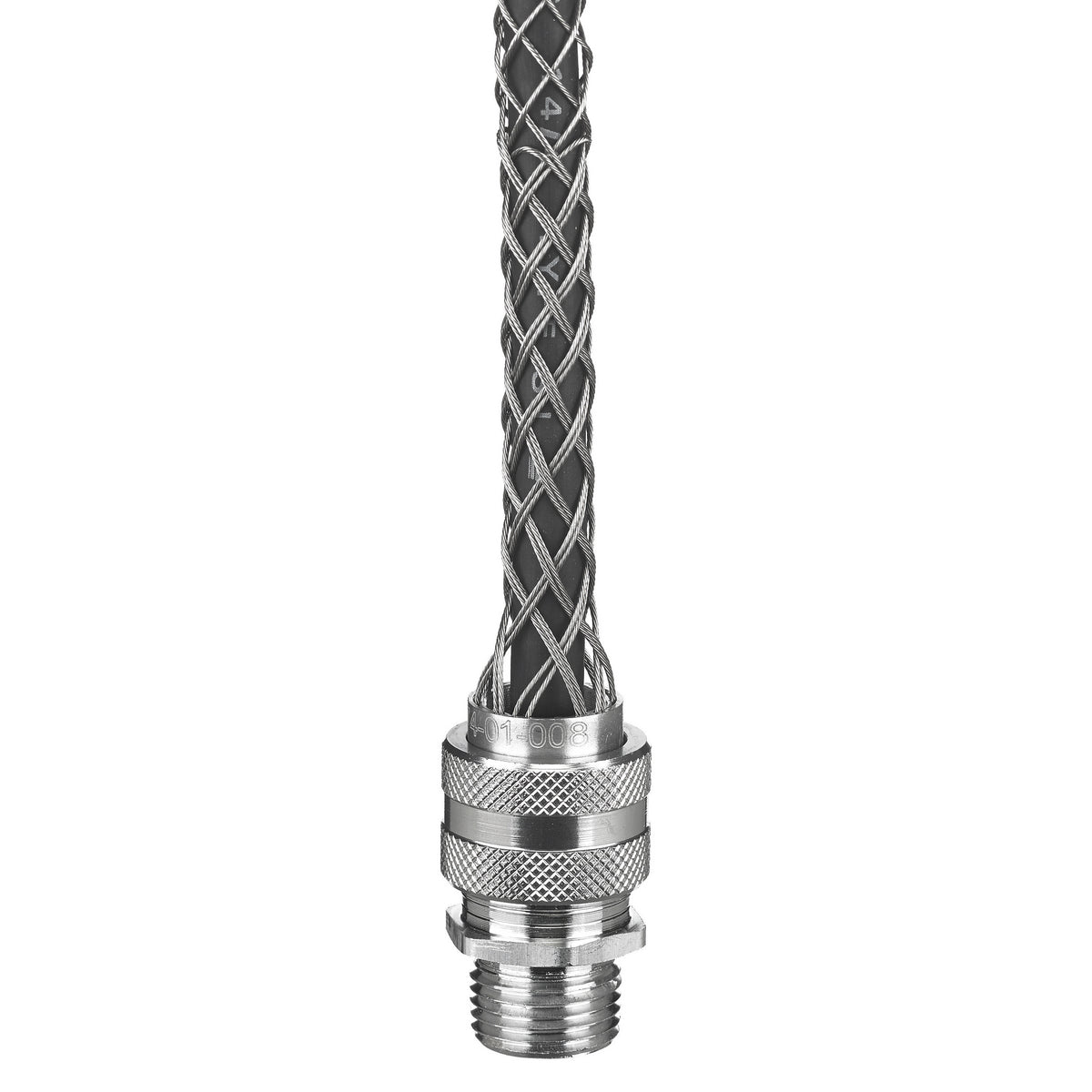

Hubbell 07401031 Deluxe Cord Grip Liquidtight Strain Relief 1-1/2 in

Product Description

The Hubbell 07401031 Deluxe Cord Grip is a form 5 liquidtight standard duty strain relief. It is designed for one conductor with cable openings ranging from one and one-eighth inches to one and one-quarter inches. The product is ideal for jacketed cables and provides a straight connection with MNPT threading. Constructed from aluminum and stainless steel, it can withstand temperatures from negative thirty to two hundred forty degrees Fahrenheit.

• Stainless steel mesh is corrosion-resistant
• Multi-weave grip gives cable arc-of-bend control
• Endless weave provides easy cable and flexible conduit installation

Product Highlights

This cord grip is suitable for use in wet locations when paired with a listed nylon washer between the box and fitting.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358532212

Technical Specifications

• Application: For wet location when used with a listed nylon washer between box and fitting, hazardous location and insulated cables applications
• Cable Openings: 1-1/8 to 1-1/4 in
• Cable Type: Jacketed
• Color: Metallic
• Connection Type: MNPT Straight
• Manufacturer Part Number: 07401031
• Material: Aluminum/Stainless Steel
• Number of Conductors: 1
• Standards/Approvals: CSA Certified, RoHS Compliant, UL 898D, UL 899D
• Temperature Rating: -30 to 240 deg F
• Trade Size: 1-1/2 in
• Type: Form 5 Liquidtight Standard Duty Strain Relief
