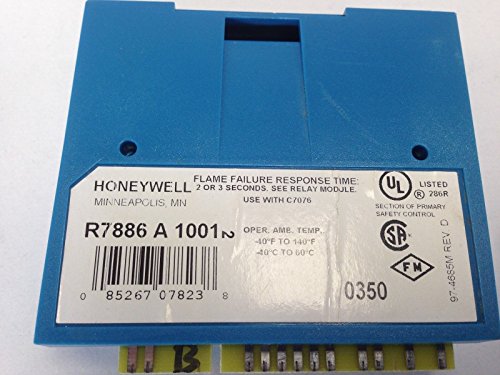

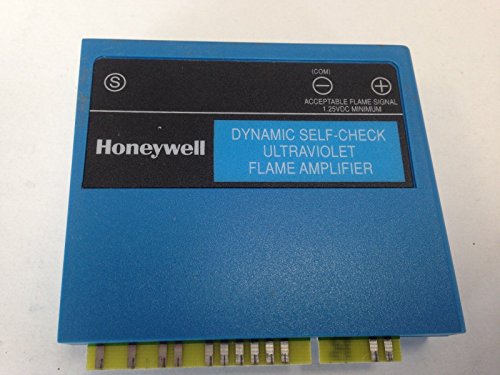

Honeywell R7886A1001 Dynamic Self-Check UV Flame Amplifier for 7800 Series

Product Description

The Honeywell R7886A1001 is a dynamic self-check amplifier designed for use with the C7076A ultraviolet flame sensors. It integrates seamlessly with the 7800 series relay modules, providing reliable flame signal amplification.

• Brand: Honeywell
• Model Number: R7886A1001
• Dynamic self-test feature ensures system reliability

Product Highlights

This amplifier responds to inputs from flame detectors to verify flame presence. It features a blue color scheme and is fully compatible with Honeywell's flame detection systems.

Product Information

Standard Information

• Category: HVAC Equipment
• Product Type: Electronic Component Amplifier
• Weight: 0.5 lbs
• Size: Compact for easy installation

Technical Specifications

• Flame Failure Response Time: 0.8 or 3.0 seconds
• Flame Signal Strength: Ranges from 0.0 to 5.0 Vdc
• Compatible Flame Sensor: Ultraviolet Flame Sensor C7076
• Connection Type: Keyed printed circuit board edge connector
• Test Jacks: Included for measuring signal voltage
• Color-Coded Labels: Indicates flame detection type
• Indicates Flame Presence: Through solid state amplification
