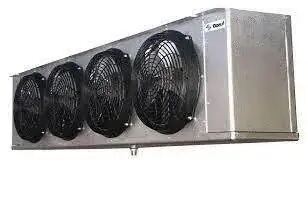

HTPG RL6E077DDARE Evaporator Coil 7.7K BTU Electric Defrost

Product Description

The HTPG RL6E077DDARE is an evaporator coil designed for walk-in refrigeration units. This unit delivers a cooling capacity of seven thousand seven hundred BTU and operates at two hundred thirty volts alternating current. It utilizes an ECM motor that promotes energy efficiency and features electric defrost functionality.

• Cooling capacity of seven thousand seven hundred BTU

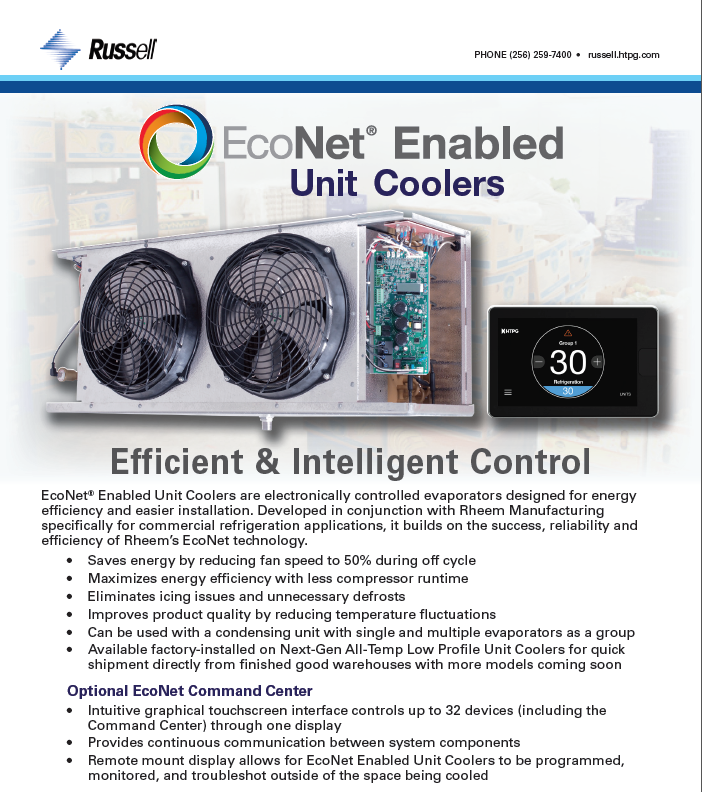

• Electric defrost with EcoNet control
• ECM motor for efficient performance

Product Highlights

This evaporator is ideal for maintaining consistent temperatures in walk-in coolers and freezers, helping to preserve perishable items effectively.

Product Information

Standard Information

• Model: RL6E077DDARE
• Brand: HTPG

Technical Specifications

• BTU Rating: 7700 Btu/hr
• CFM Rating: 1570 cfm
• Configuration: Electric Defrost
• Connection Size: 3/8 in Liquid, 5/8 in Suction
• Controller Type: EcoNet
• Dimensions: 15-1/2 in L x 43-5/8 in W x 16-3/4 in H
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• Material: Aluminum
• MCA: 15 A
• MOPD: 20 A
• Motor Type: ECM
• Mounting Type: Flush
• Number of Fans: 2
• Number of Speeds: 2
• Phase: 1 ph
• Series: RL6E
• Tube Size: 3/8 in
• Voltage Rating: 208 to 230 V
