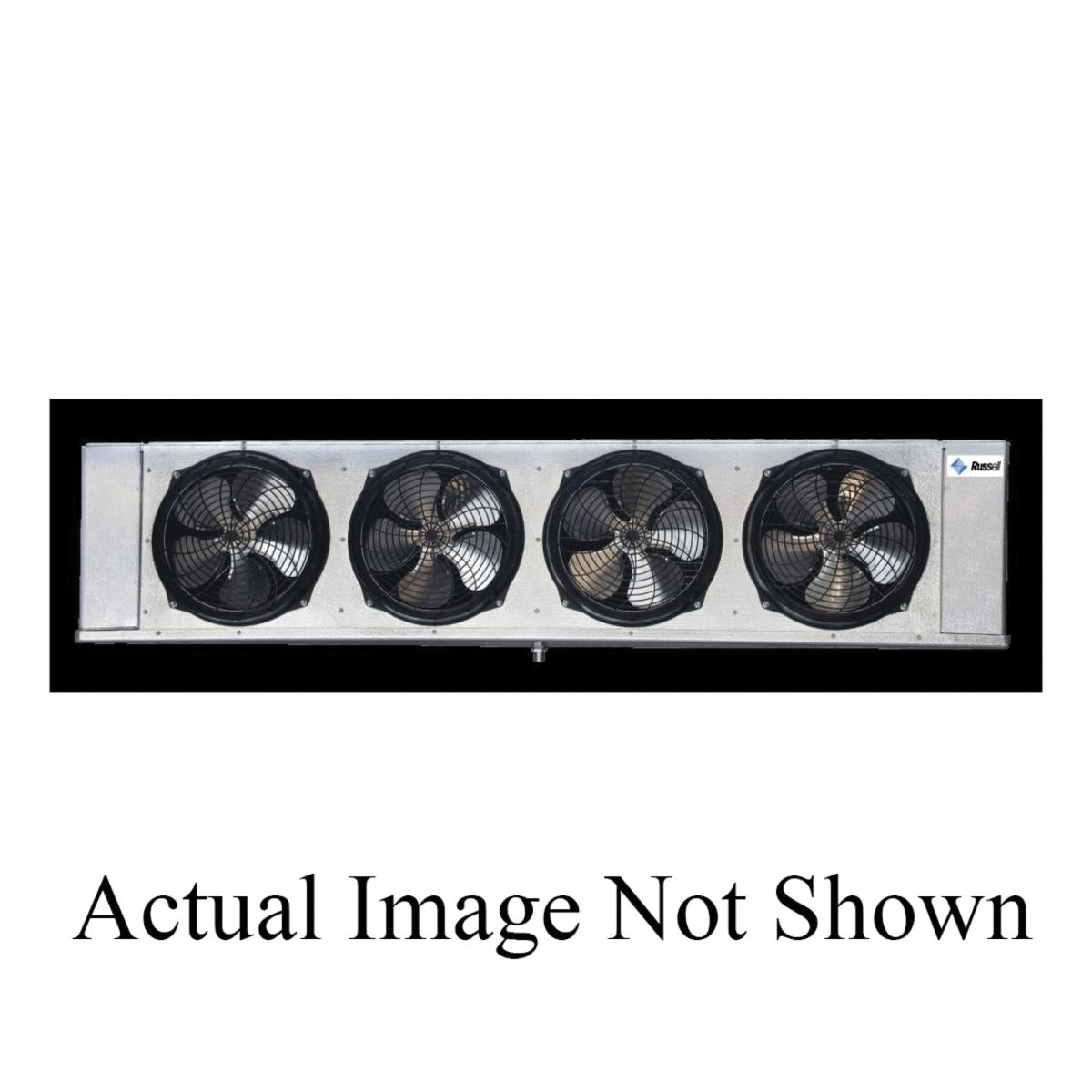

HTPG RL6A141ADARE-RUSS - EVAP 14.1K BTU AIR 115/1 W/ ECONET CONTR

Product Description

The HTPG RL6A141ADARE-RUSS is an evaporator unit designed for air defrost applications. This unit has a cooling capacity of fourteen thousand one hundred BTU per hour and operates at one hundred fifteen volts. It includes a single-phase motor and features an EcoNet controller for efficient operation and monitoring. Built with an all-aluminum housing, the hinged front panel allows easy access for maintenance.

• Cooling capacity: 14.1K BTU/hr
• Single-phase motor with EcoNet controller
• Durable aluminum housing for long service life

Product Highlights

This evaporator is suitable for various refrigeration needs. Its air defrost configuration optimizes operational efficiency, making it ideal for commercial refrigeration settings.

Product Information

Standard Information

• Manufacturer: HTPG
• Product Name: HTPG RL6A141ADARE-RUSS

Technical Specifications

• BTU Rating: 14100 BTU/hr
• CFM Rating: 2355 cfm
• Configuration: Air Defrost
• Connection Size: 3/8 in Liquid, 5/8 in Suction

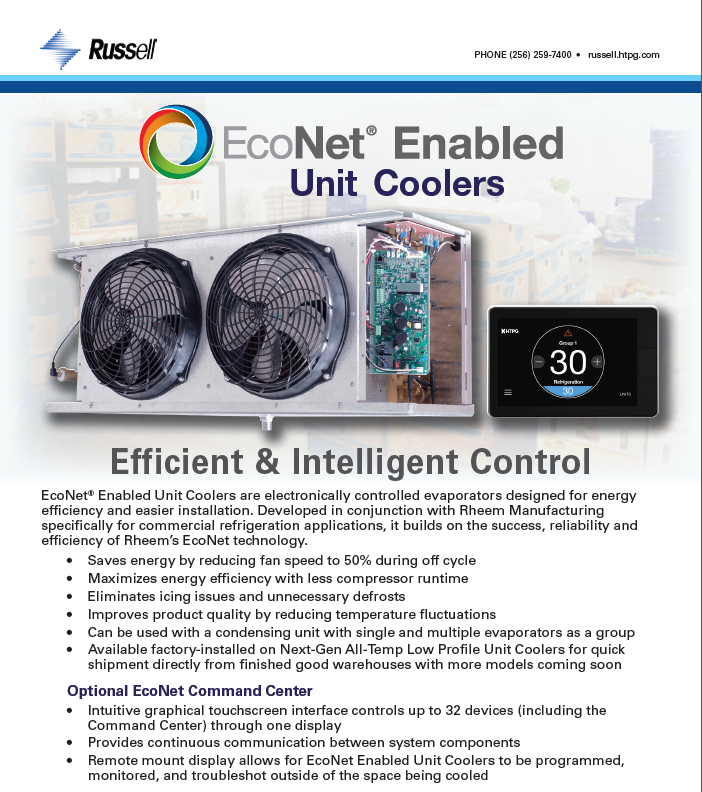

• Controller Type: EcoNet
• Dimensions: 15-1/2 in L x 60-1/8 in W x 16-3/4 in H
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• Material: Aluminum
• MCA: 15 A
• MOPD: 20 A
• Motor Type: ECM
• Mounting Type: Flush
• Phase: 1 ph
• Series: RL6A
• Tube Size: 3/8 in
• Voltage Rating: 115 V
