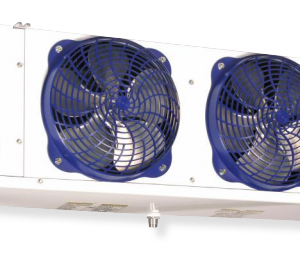

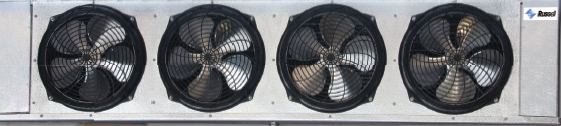

HTPG RL6A117ADARE Evaporator Coil Walk-In 11K BTU 120 VAC ECM Motor Air Defrost EcoNet Control Package

Product Description

The HTPG RL6A117ADARE is an evaporator coil designed specifically for walk-in coolers and freezers. It has a low-profile design that allows for efficient space usage. This unit cooler can handle capacities ranging from two thousand seven hundred to forty-five thousand nine hundred BTUH, making it suitable for various cooling applications. It is engineered to mount flush against the ceiling and meets NSF compliance standards. The coil is built with copper hairpins and enhanced copper tubes to promote effective heat transfer.

• Designed for walk-in coolers and freezers
• Low-profile design for space-saving installation
• Equipped with ECM motor for energy-efficient operation

Product Highlights

This evaporator coil offers advanced functionality for refrigeration needs in commercial settings.

Product Information

Standard Information

• Application: Walk-In
• Voltage: 115V

Technical Specifications

• BTUH: 11700
• Electrical: 115-1-60
• Frequency: 60Hz
• Phase: Single
• Motor Type: ECM
• Type: Air Defrost
• Airflow: 1550
• Liquid Line Size: 3/8
• Suction Line Size: 5/8
• Height: 15-1/2
• Width: 18-1/8
• Length: 43-5/8
