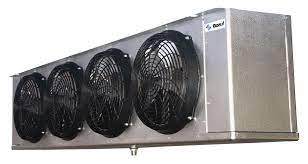

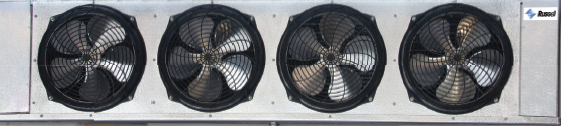

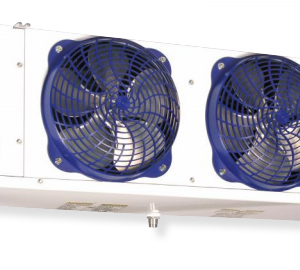

HTPG RL6A117ADAAL Evaporator Coil Walk-In 11K BTU 120 VAC

Product Description

The HTPG RL6A117ADAAL is an evaporator coil designed for walk-in refrigeration applications. With a capacity of eleven thousand BTU, it operates using one hundred twenty volts alternating current. This model is equipped with an ECM motor, supporting energy efficiency. Air defrost functionality is included to ensure optimal operation. Additionally, it comes with a thermostatic expansion valve, a liquid line solenoid, and a thermostat for accurate temperature management.

• Designed for walk-in refrigeration units.
• Has a capacity of eleven thousand BTU.
• Operates on one hundred twenty volts alternating current.

Product Highlights

This evaporator is suitable for various refrigeration settings, including commercial kitchens and storage facilities.

Product Information

Standard Information

• Brand: HTPG
• MPN: RL6A117ADAAL

Technical Specifications

• BTU: 11000
• Voltage: 120 VAC
• Motor Type: ECM
• Refrigerant: R-404A
• Application: Walk-In
• Airflow: 1550
• Electrical: 115-1-60
• Phase: Single
• Frequency: 60Hz
• Unit Cooler Type: Walk-In
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 11700
• Unit Cooler Number of Fans: 2
• Liquid Line Size (OD): 3/8
• Suction Line Size (OD): 5/8
• Evaporator Coil Fins per Inch (FPI): 6
• Amps: 1.6
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4
• Minimum Circuit Ampacity (MCA): 15
• Style: Low Profile
