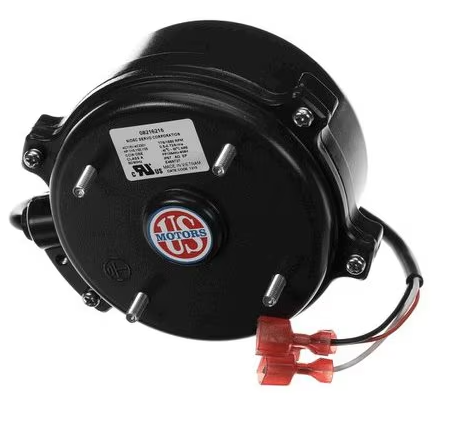

HTPG 08216216 Evaporator Fan Motor 1/15 HP

Product Description

The HTPG 08216216 is an ECM motor suitable for evaporator fan use. It operates on 115/230 VAC with a frequency of 50/60 Hz. This motor features a totally enclosed air over enclosure and runs clockwise when viewed from the shaft end. It is designed for continuous running duty.

• Motor type: ECM
• Power consumption: 35 watts
• Continuous duty rating

Product Highlights

The HTPG 08216216 motor provides reliability for various applications requiring a consistent airflow. Its design ensures efficient operation and ease of installation, matching standard mounting setups.

Product Information

Standard Information

• Brand: HTPG
• Motor Type: ECM

Technical Specifications

• Power Consumption: 35 watts
• Voltage: 115/230 VAC
• Cycle/Hertz: 50/60 Hz
• Horsepower: 1/15 HP
• RPM: 1550
• Phase: Single
• Rotation: Clockwise (CW)
• Bearing Type: Ball
• Mounting Type: Screws
• NEMA Frame: 51
• Shaft Diameter: 0.1875 inches
• Shaft Length: 2 inches
• Enclosure: Totally Enclosed Air Over (TEAO)
• Insulation Class: B
• Service Factor: 1
• Duty: Continuous Running Duty
• Weight: 3 lbs
• Dimensions: 5.00 x 6.00 x 5.00 inches
