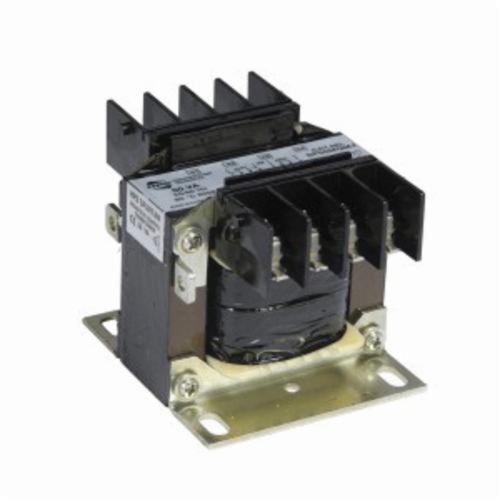

HPS SP3000MQMJ HPS SP3000MQMJ Spartan Dry Type Control Transformer 240/480 VAC Primary 120/240 VAC Secondary

Product Description

The HPS Spartan® SP3000MQMJ is a dry type control transformer. It is designed for general purpose industrial and light duty loads. It operates on a primary voltage of 240 or 480 VAC, and a secondary voltage of 120 or 240 VAC. This transformer has a power rating of 3000 VA and operates at a frequency of fifty Hz. The unit can handle a maximum current of 25/12.5 A with screw connections and is suitable for panel mounting.

• Dry type control transformer
• Panel mounting with screw connections
• Efficient for industrial and light duty applications

Product Highlights

This transformer is ideal for applications where heavy inrush is not a requirement. The enclosure design includes an open/core and coil structure for better heat dissipation and performance compliance.

Product Information

Standard Information

• Manufacturer: Hammond Power Solutions
• Brand: HPS

Technical Specifications

• Connection Type: Screw
• Dimensions: 7-1/2 in L x 7-1/2 in W x 6-1/2 in H
• Enclosure Type: Open/Core and Coil
• Insulation: 180 deg C
• Maximum Amperage Rating: 25/12.5 A
• Mounting Type: Panel
• Series: Spartan®
• Temperature Rating: 40 deg C
• Type: Dry Type
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 3000 VA
• Frequency Rating: 50 Hz
• Phase: 1 ph
