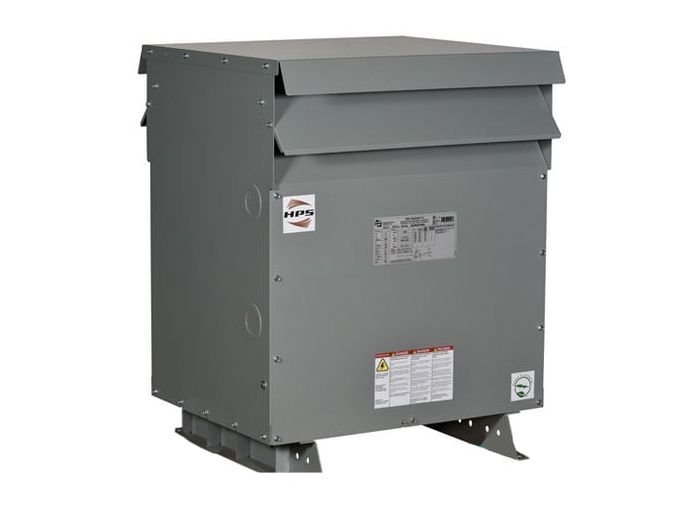

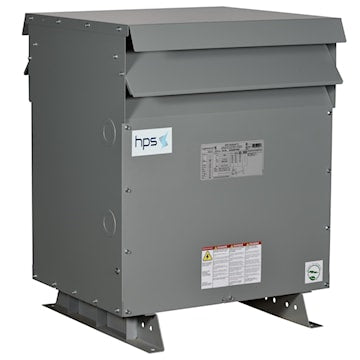

HPS SENTINEL G SG3A0112KB Distribution Transformer

Product Description

The HPS SENTINEL G SG3A0112KB is a three-phase distribution transformer suitable for a variety of applications. It supports voltage up to six hundred volts, making it ideal for appliances, lighting, heating, and motorized machinery from electrical distribution systems.

• Energy efficient design compliant with DOE and NRCan standards.
• Delta primary and Wye secondary connections.
• Rated for a primary voltage of four hundred eighty VAC and a secondary voltage of two hundred eight Y/one hundred twenty VAC.

Product Highlights

This transformer features a NEMA 3R enclosure suitable for both indoor and outdoor installations. It is constructed with aluminum windings and can be mounted on the floor, wall, or ceiling.

Product Information

Standard Information

• Manufacturer Part Number: SG3A0112KB
• Brand Name: Hammond Power Solutions

Technical Specifications

• Product Series: Sentinel G (Gen. 3)
• Type: Energy Efficient, General-Purpose
• VA Rating: 112.5 kVA
• Frequency Rating: 60 Hz
• Phase: 3
• Enclosure Type: NEMA 3R
• Mounting Type: Floor, Ceiling, Wall
• Material: Aluminum
• Connection Type: Lug/Pad
• Color: ANSI 61 Gray
• Dimensions: 28.3 in W x 27 in D x 36 in H
• Temperature Rating: 30 °C
• Insulation Class: Class R
• Temperature Rise (F): 302 °F
• Approvals: CSA, UL
• Efficiency: 98.74%
