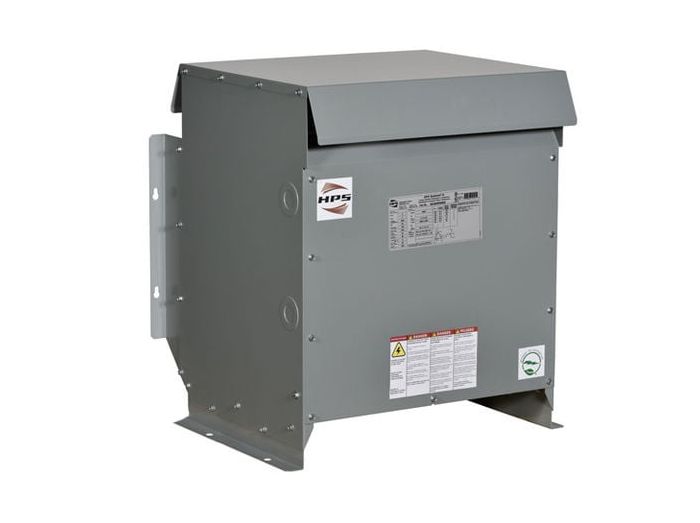

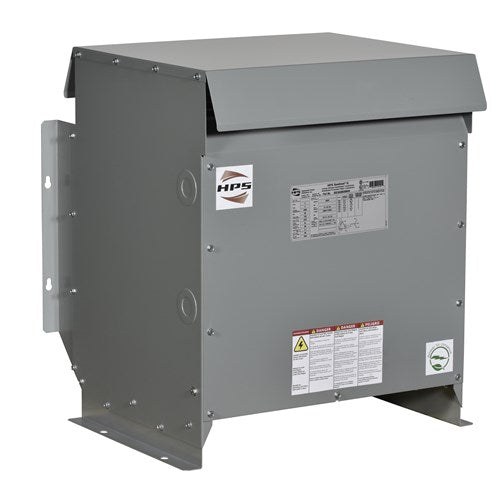

HPS SENTINEL G SG3A0030KB Distribution Transformer

Product Description

The HPS SENTINEL G SG3A0030KB is a three-phase distribution transformer designed for general-purpose applications. Rated for 600 volts and below, this transformer is commonly used to power appliances, lighting, heating systems, and motorized machines from electrical distribution systems.

• Three-phase operation for stable power supply.
• NEMA 3R enclosure for indoor or outdoor installation.
• Can be mounted on floors, walls, or ceilings.

Product Highlights

This transformer is built to meet various electrical needs, featuring a Delta primary and Wye secondary configuration.

Product Information

Standard Information

• Manufacturer: Hammond Power Solutions
• VA Rating: 30,000 VA

Technical Specifications

• MPN: SG3A0030KB
• Phase: 3
• Primary Voltage: 480 V
• Secondary Voltage: 120 V, 208 V
• Configuration: Delta Primary/Wye Secondary
• NEMA Rating: NEMA 3R
• Temperature Rise: 302 °F
• Dimensions: 28.80 inches x 25.80 inches x 23.80 inches
• Weight: 310 lbs
