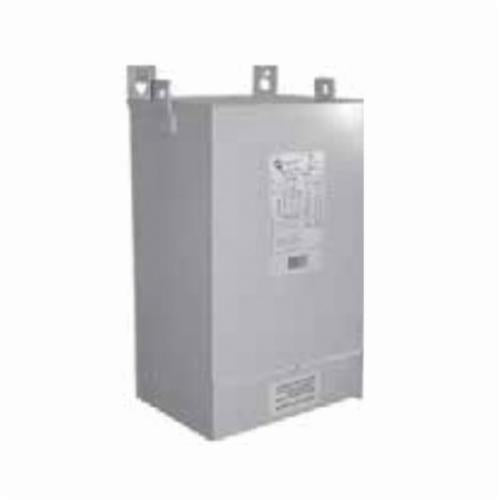

HPS Q003LEKF Titan® Hazardous Location Encapsulated Distribution Transformer 240/480 VAC Primary 120/240 VAC Secondary 3 kVA

Product Description

The HPS Q003LEKF is a hazardous location encapsulated distribution transformer designed for rugged environments. It features a primary voltage of two hundred forty or four hundred eighty volts AC and a secondary voltage of one hundred twenty or two hundred forty volts AC. The power rating is three kVA. This transformer operates on a frequency of sixty hertz and supports a single phase.

• Designed for hazardous locations
• Wall mounting capability
• Encapsulated for moisture and contamination resistance

Product Highlights

The HPS Titan® series transformers are built for industrial and commercial applications. They provide high durability with an insulated design that protects against environmental hazards.

Product Information

Standard Information

• Brand: HPS
• MPN: Q003LEKF

Technical Specifications

• Connection Type: Lead Wire/Tab
• Dimensions: 11-3/4 inches H x 7 inches W x 6-1/2 inches D
• Enclosure Type: NEMA 3R
• Insulation: 180 degrees C
• Mounting Type: Wall
• Series: Titan®
• Temperature Rating: 30 degrees C
• Type: Hazardous Location Encapsulated
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 3 kVA
• Frequency Rating: 60 Hz
• Phase: 1
