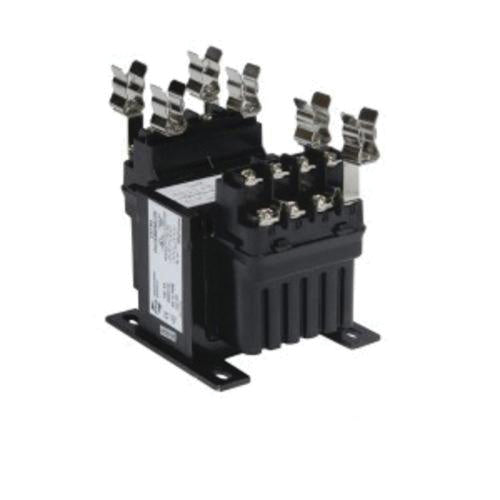

HPS PH50PG HMD Power Control Transformer 50 VA 120 x 240 Volt Primary 12 x 24 Volt Secondary

Product Description

The HPS Imperator PH50PG is an industrial control transformer designed for challenging machine tool applications. This model features a 120/240 VAC primary voltage and a 12/24 VAC secondary voltage, with a power rating of 50 VA, making it suitable for applications requiring high inrush current.

• Designed for automation, panel shops, and control applications.
• Features encapsulated coils for protection against moisture and contaminants.
• Easy installation due to unique terminal block design.

Product Highlights

The HPS Imperator provides robust performance in industrial environments, ensuring safety and dependability.

Product Information

Standard Information

• Brand: HPS
• Manufacturer: Hammond Power Solutions

Technical Specifications

• Type: Industrial Molded Open Style
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 12/24 VAC
• Power Rating: 50 VA
• Frequency Rating: 50/60 Hz
• Maximum Amperage Rating: 4.17/2.08 A
• Mounting Type: Panel
• Connection Type: Screw
• Dimensions: 3 inches L x 4.38 inches W x 3.19 inches H
• Temperature Rating: 30 degrees C
• Insulation Rating: 105 degrees C
• Country of Origin: CN
