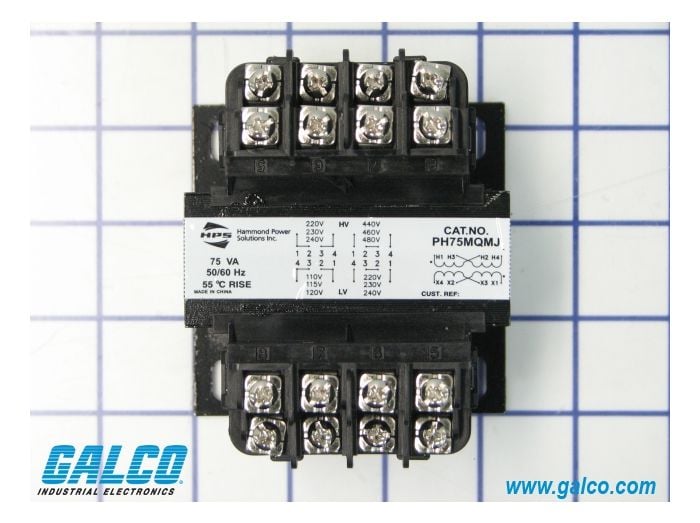

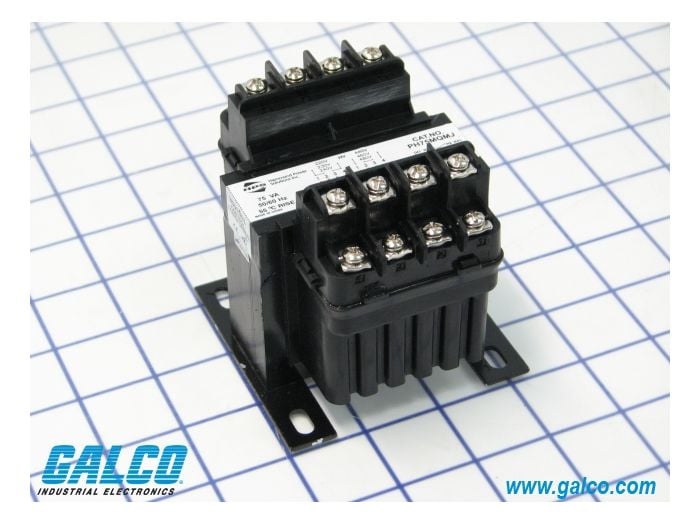

HPS IMPERATOR PH75MQMJ Industrial Control Transformer

Product Description

The HPS IMPERATOR PH75MQMJ is a machine tool rated industrial control transformer, ideal for high inrush industrial applications. This component utilizes electromagnetic parts to ensure effective performance in demanding environments. It features a terminal block for easy installation of fuse clips, offering flexibility for various setups.

• Designed for industrial applications with electromagnetic components
• Features a terminal block for fuse clip installation
• Includes mounting feet for stability and ease of installation

Product Highlights

This transformer is crafted with encapsulated coils and a molded cover for durability and protection against contaminants, ensuring longevity in operational use.

Product Information

Standard Information

• Brand: HPS IMPERATOR
• MPN: PH75MQMJ

Technical Specifications

• Type: Control Power
• Phase: Single Phase
• VA Rating: 75 VA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency Rating: 50/60 Hz
• Mounting Type: Panel
• Enclosure Type: Open
• Dimensions: 3.25 in L x 3.88 in W x 3.56 in H
• Weight: 4.425 lbs
• Termination: Integrally Molded Terminal Blocks
• Insulation Class: Class A
• Temperature Rating: 30 deg C
• Standard & Approvals: UL Listed, cULus Listed, RoHS Compliant
• Material: Copper
• Applications: Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control Applications and Timers
