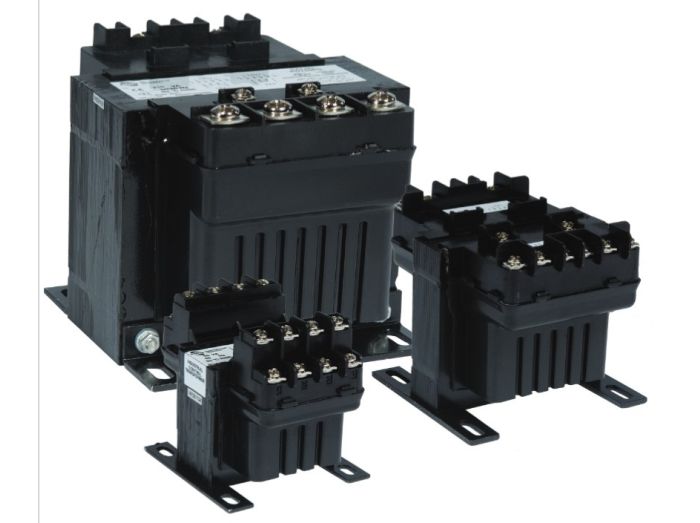

HPS Imperator PH750MLI 750VA Control Transformer

Product Description

The HPS Imperator PH750MLI is a 750VA single-phase control transformer. This transformer is designed for high inrush applications, making it ideal for use with electromagnetic components like relays and solenoids. It features integrally molded terminal blocks for easy termination and is constructed with silicon steel laminations to ensure durability. The product meets UL and CE standards for safety and reliability. Secondary fuse clips are included, while fuses and primary fuse kits need to be purchased separately.

• Suitable for electromagnetic equipment.
• Meets UL and CE standards.
• Integrally molded terminal blocks.

Product Highlights

The HPS Imperator PH750MLI is optimal for industrial control applications.

Product Information

Standard Information

• Manufacturer Part Number: PH750MLI
• Manufacturer: Hammond Power Solutions

Technical Specifications

• VA Rating: 750 VA
• Primary Voltage: 200 V, 208 V, 220 V, 230 V, 240 V, 440 V, 460 V, 480 V
• Secondary Voltage: 110 V, 115 V, 120 V, 23 V, 24 V, 25 V
• Phase: 1
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Insulation Class: Class B
• Temperature Rise: 176 °F
• Approvals: CE, UL, cUL/UL Listed, RoHS Compliant
• Net Weight: 21.755 lbs
• Product Dimensions: 6.50 inches x 5.25 inches x 4.94 inches
