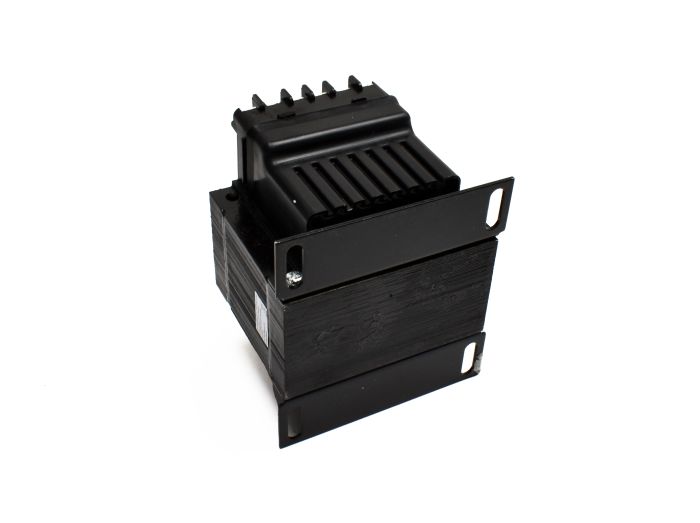

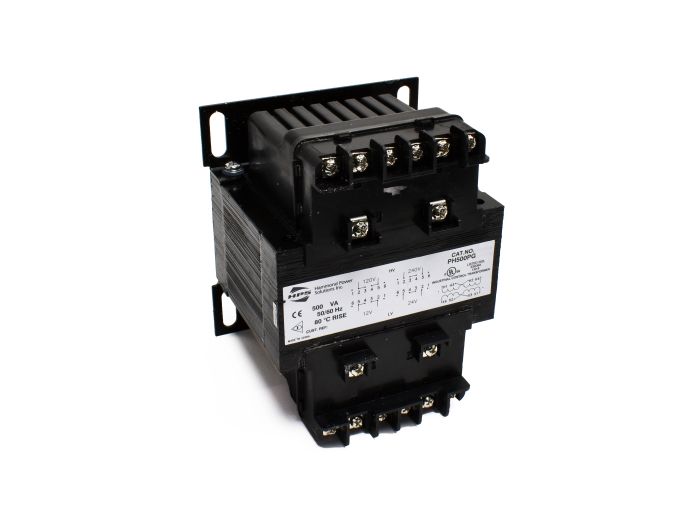

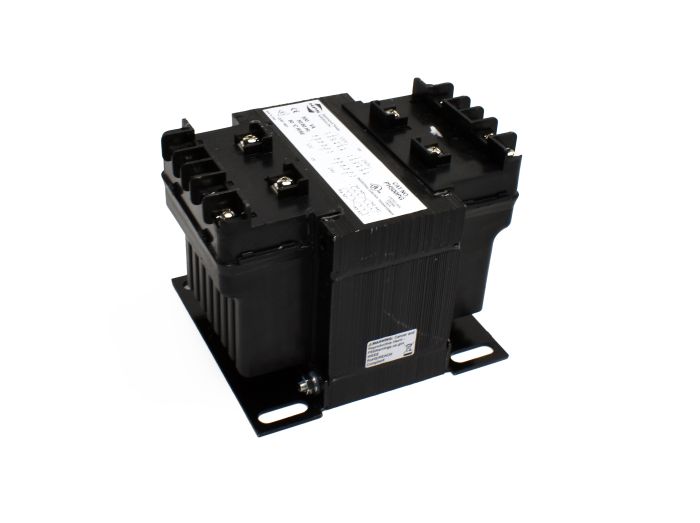

HPS Imperator PH500PG Industrial Control Transformer 500VA

Product Description

The HPS Imperator PH500PG is a 500VA industrial control transformer designed for machine tool applications that require high inrush capabilities. This transformer is ideal for use with relays, solenoids, and magnetic motor starters, making it a reliable choice in various industrial settings.

• Designed for high inrush industrial applications.
• Primary voltage rating of 120x240 and secondary voltage of 12x24.
• Encapsulated coils to protect against moisture and dirt.

Product Highlights

This control transformer is built with robust construction, featuring silicon steel laminations and an encapsulated coil. It provides reliable performance under demanding industrial conditions.

Product Information

Standard Information

• Brand: HPS Imperator
• MPN: PH500PG

Technical Specifications

• Series: HPS Imperator
• Type: Control Power
• Phase: Single Phase
• VA Rating: 500 VA
• Primary Voltage: 120x240
• Secondary Voltage: 12x24
• Maximum Amperage: 41.7 Amp, 20.8 Amp
• Enclosure: Open
• Termination: Integrally Molded Terminal Blocks
• Insulation Class: Class B
• Temperature Rise: 176 °F
• Weight: 17.75
• Product Dimensions: 5.94 inches X 4.75 inches X 4.31 inches
• Certifications: cUL/UL Listed, CE, RoHS Compliant
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Cover Included: Optional
• Warranty: Limited Lifetime
