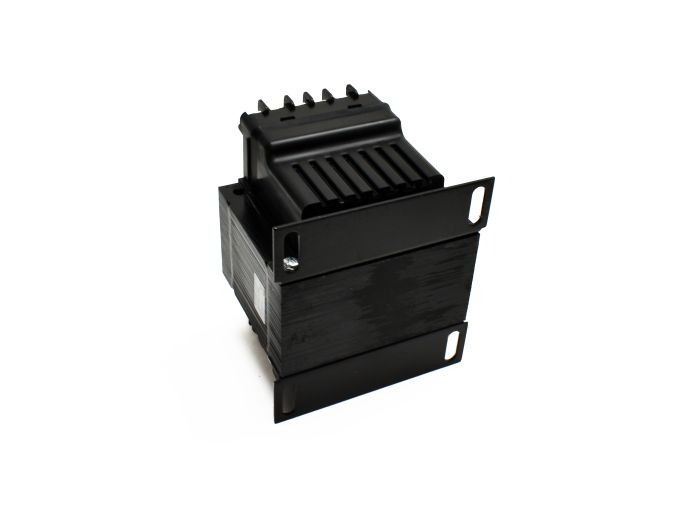

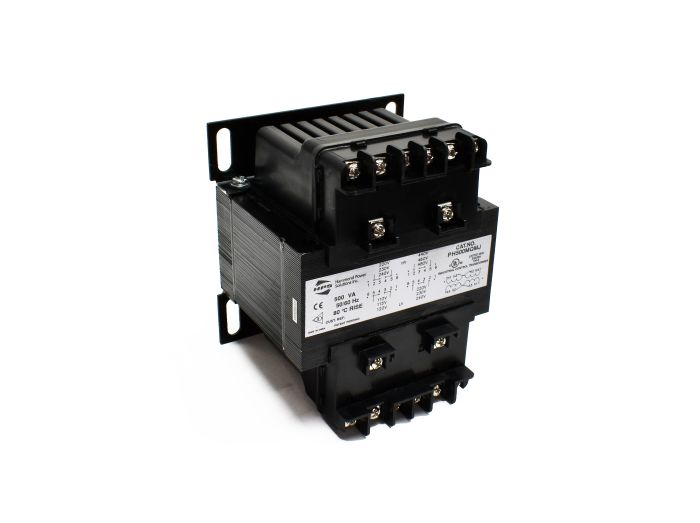

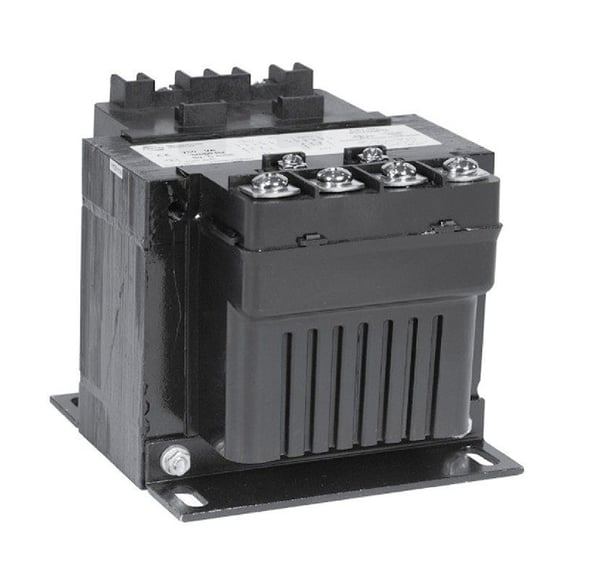

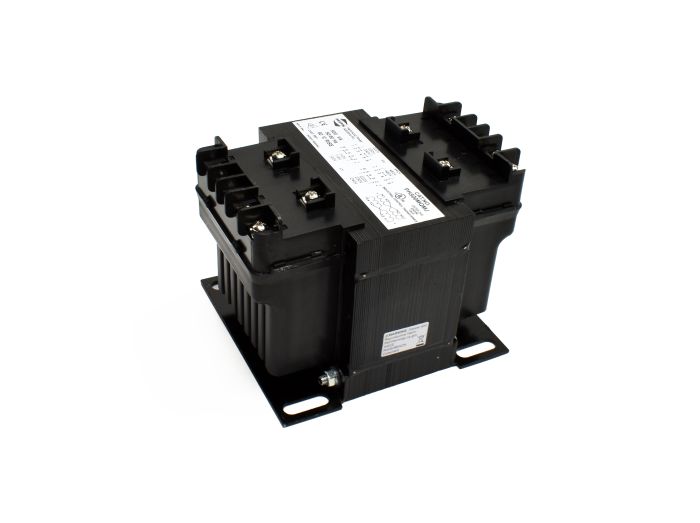

HPS Imperator PH500MQMJ Industrial Control Transformer 500VA

Product Description

The HPS Imperator PH500MQMJ is a 500VA industrial control transformer suitable for high inrush applications. It has integrally molded terminal blocks for secure connections and is built using silicon steel laminations. This transformer complies with UL and CE standards, making it reliable for various applications.

• Designed for high inrush industrial applications.
• Constructed with silicon steel laminations.
• Features integrally molded terminal blocks for safety.

Product Highlights

This transformer is ideal for use with electromagnetic components like relays and solenoids. Secondary fuse clips are included, and primary fuse kits and touch-safe covers are available for separate purchase.

Product Information

Standard Information

• Manufacturer Part Number: PH500MQMJ
• Manufacturer: Hammond Power Solutions

Technical Specifications

• Product Series: HPS Imperator
• Phase: 1
• Type: Control
• VA Rating: 500 VA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Enclosure Type: Open
• Termination: Integrally Molded Terminal Blocks
• Insulation Class: Class B
• Approvals: CE, UL, cULus Listed, RoHS Compliant
• Net Weight: 28 lbs
• Frequency Rating: 50/60 Hz
• Maximum Amperage Rating: 4.17/2.08 A
• Mounting Type: Panel
• Connection Type: Screw
• Temperature Rating: 30 deg C
• Insulation: 130 deg C
• Dimensions: 4.75 inches L x 5.94 inches W x 4.31 inches H
