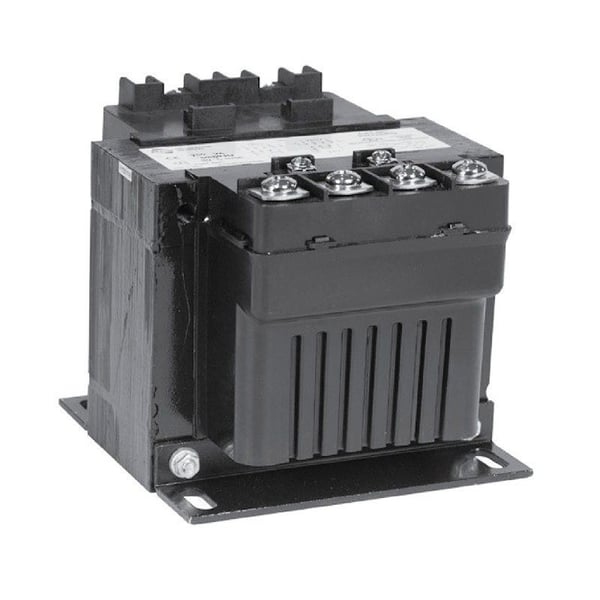

HPS IMPERATOR PH250PG 250 VA Industrial Control Transformer

Product Description

The HPS IMPERATOR PH250PG is a 250 VA industrial control transformer designed for high inrush applications. This transformer features an encapsulated design with a molded cover that protects the coils and terminations. It includes a terminal block that allows easy installation, with options for adding primary or secondary fuse clips. The PH250PG is suitable for various applications, including automation, panel shops, and control systems.

• Panel mounting capability.
• Frequency rating of fifty to sixty Hertz.
• Dual primary voltage of one hundred twenty to two hundred forty VAC and secondary voltage of twelve to twenty-four VAC.

Product Highlights

The HPS IMPERATOR PH250PG provides reliable performance in industrial environments, ensuring safe and effective power management for machinery and control applications.

Product Information

Standard Information

• Brand: HPS IMPERATOR
• MPN: PH250PG

Technical Specifications

• Power Rating: 250 VA
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 12/24 VAC
• Phase: 1
• Frequency Rating: 50/60 Hz
• Mounting Type: Panel
• Enclosure Type: Open
• Connection Type: Screw
• Application: Industrial, Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control Applications and Timers
• Dimensions: 4.5 inches L x 5.44 inches W x 3.81 inches H
• Maximum Amperage Rating: 20.8/10.4 A
• Insulation: 130 degrees C
• Temperature Rating: 30 to 40 degrees C
• Certifications: cUL/UL Listed, CE, RoHS Compliant
• Type: Dry Type Encapsulated Machine Tool Rated Molded
