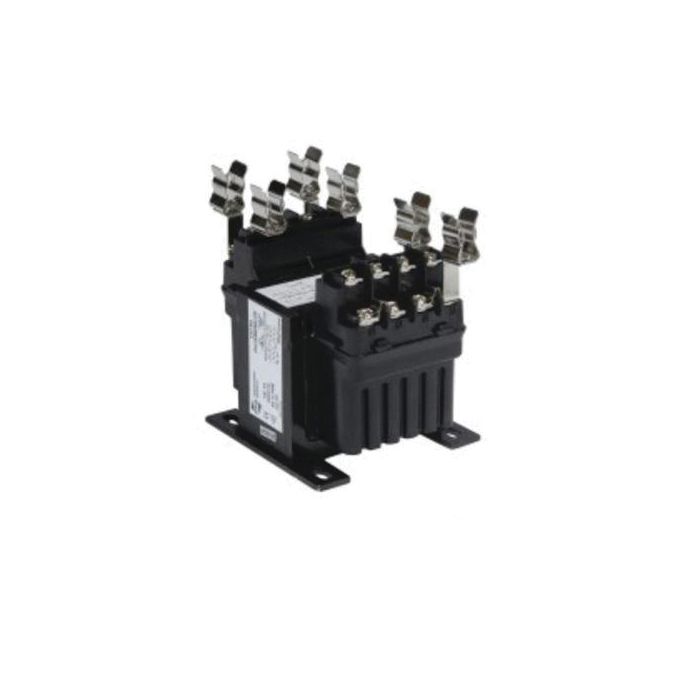

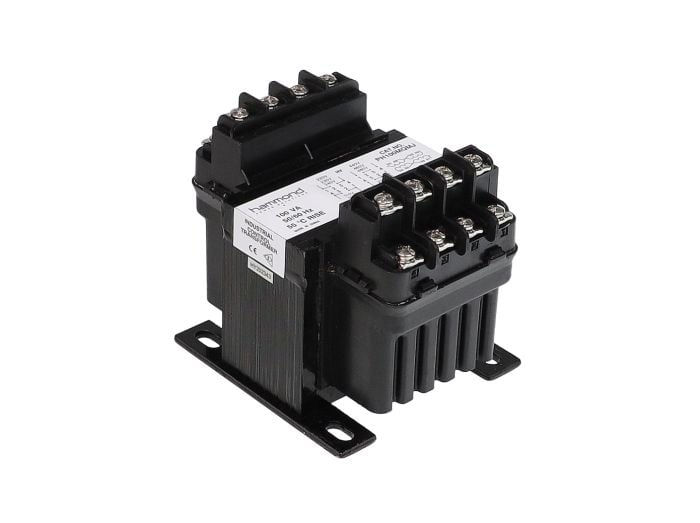

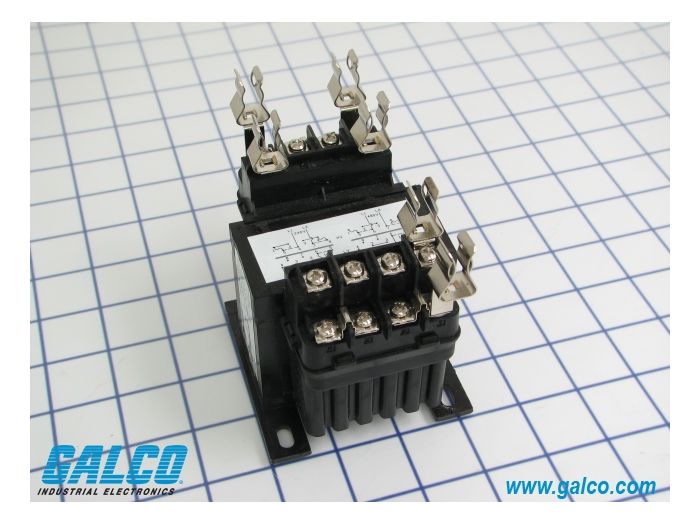

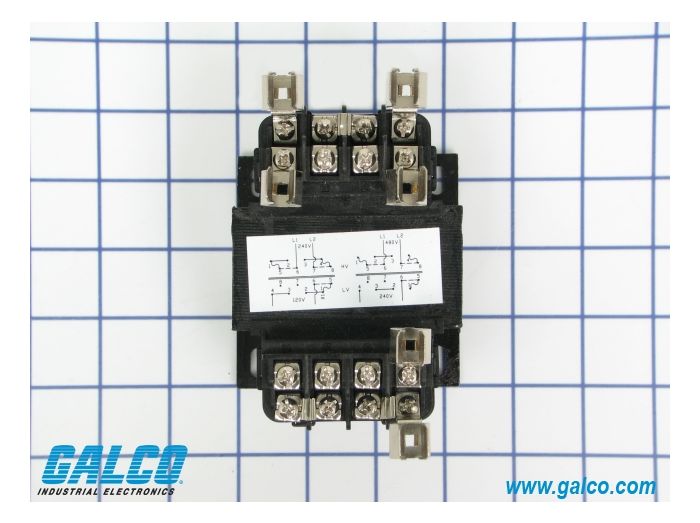

HPS Imperator PH100MQMJ Industrial Control Transformer

Product Description

The HPS Imperator PH100MQMJ is an industrial control transformer suitable for high inrush applications. It works well with components like relays and solenoids. The transformer has integrally molded terminal blocks for easy termination and features silicon steel laminations for durability. It meets UL and CE standards for safety and reliability.

• High inrush capability for industrial applications.
• Integrally molded terminal blocks for secure connections.
• Includes secondary fuse clips and has optional primary fuse kits available.

Product Highlights

The transformer is an essential component for various industrial applications, providing reliable power control.

Product Information

Standard Information

• Brand: HPS Imperator
• Manufacturer Part Number: PH100MQMJ

Technical Specifications

• Phase: 1
• Type: Control
• VA Rating: 100 VA
• Primary Voltage: 220 V, 230 V, 240 V, 440 V, 460 V, 480 V
• Secondary Voltage: 110 V, 115 V, 120 V, 220 V, 230 V, 240 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Insulation Class: Class A
• Temperature Rise (F): 131 °F
• Approvals: CE, UL
• Net Weight: 4.125 lbs
• Gross Weight: 4.525 lbs
• Frequency Rating: 50/60 Hz
• Maximum Amperage Rating: 0.83/0.42 A
• Connection Type: Screw
• Mounting Type: Panel
• Insulation: 105 deg C
• Temperature Rating (Degrees F): 30 deg C
• Dimensions: 3.25 in L x 4.69 in W x 3.63 in H
