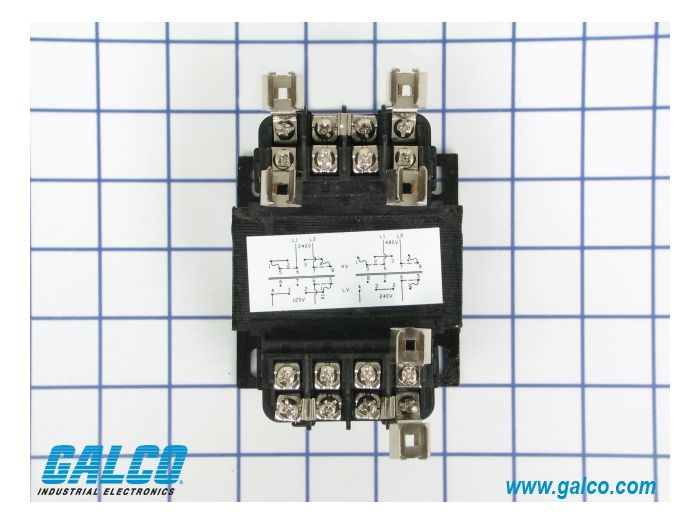

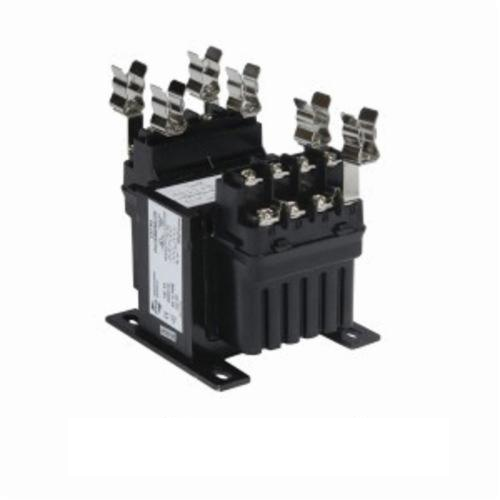

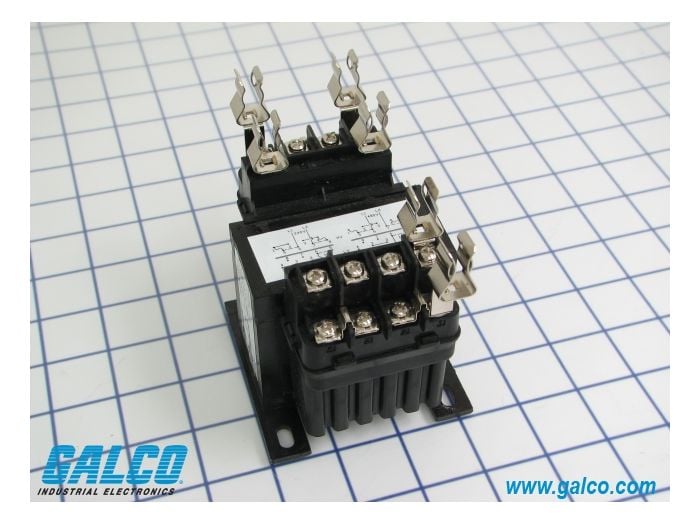

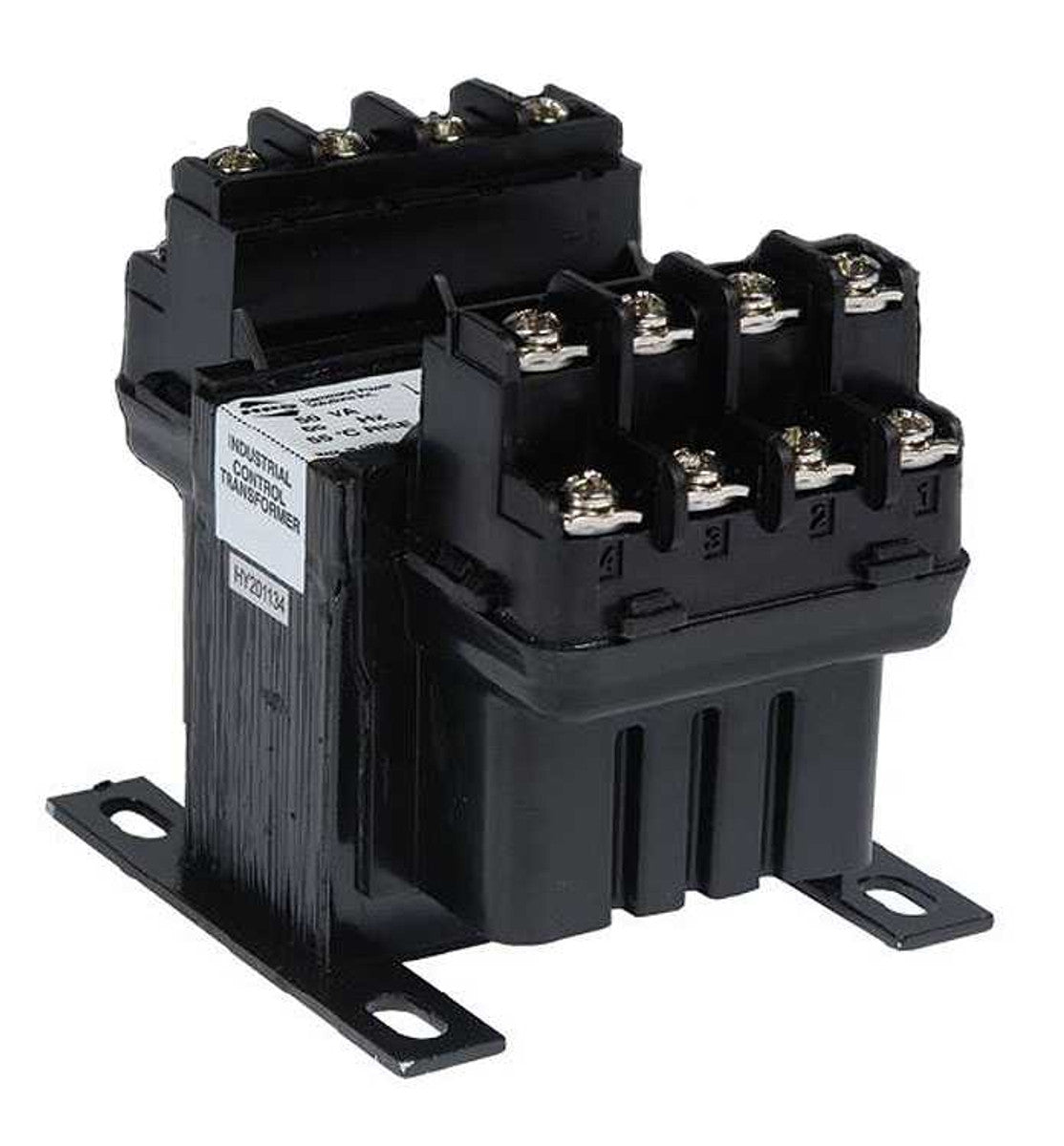

HPS Imperator PH100MQMJ-FK Control Transformer 100 VA (Open/Core and Coil) Replacement MPN

Product Description

The HPS Imperator PH100MQMJ-FK is a control transformer suitable for industrial uses. It features integrally molded terminal blocks for easy termination and is built with silicon steel laminations for efficiency. The encapsulated coils have a custom molded cover, ensuring durability and performance.

• VA Rating: 100 VA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC

Product Highlights

This transformer is ideal for high inrush applications involving electromagnetic components. It includes fuse holders for both primary and secondary connections, with fuses sold separately. It is designed for use in automation, panel shops, and various control applications.

Product Information

Standard Information

• Manufacturer Part Number: PH100MQMJ-FK
• Product Series: HPS Imperator

Technical Specifications

• Type: Control
• VA Rating: 100 VA
• Primary Voltage: 240 VAC, 480 VAC
• Secondary Voltage: 120 VAC, 240 VAC
• Phase: 1
• Enclosure Type: Open/Core and Coil
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Termination: Integrally Molded Terminal Blocks
• Insulation Class: Class A
• Temperature Rise (F): 131 °F
• Approvals: CE, UL
• Net Weight: 4.115 lbs
• Gross Weight: 4.5 lbs
• Dimensions: 3.25 in L x 4.69 in W x 3.63 in H
• Frequency Rating: 50/60 Hz
• Insulation: 105 deg C
• Maximum Amperage Rating: 0.83/0.42 A
• Temperature Rating: 30 deg C
• Mounting Type: Panel
• Connection Type: Screw
• Application: Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control Applications and Timers
