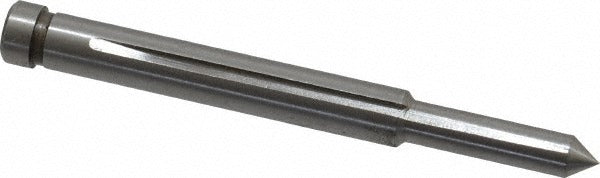

Hougen 10533 Steel Pilot Pin Annular Cutters

Product Description

The HOUGEN 10533 is a steel pilot pin designed for use with annular cutters in metal drilling applications. The pilot pin centers the cutter on the workpiece during the cut, preventing walking and ensuring a clean, accurate hole. It features a 3/4-inch shank diameter with zero flats and is compatible with annular cutters sized from 1/2 inch to 11/16 inch tool diameter. Metalworking professionals and fabricators rely on this type of pilot pin to maintain cutter alignment and extend cutter life on ferrous and non-ferrous stock.

This pilot pin is suited for use in fabrication shops, structural steel work, and on-site metalworking where annular cutters are the preferred hole-making tool. It is a direct consumable accessory used alongside magnetic drill presses and other annular cutter-compatible drilling equipment. The package quantity is 1 pin per unit.

Key Features

• Steel construction for durability under repeated drilling cycles
• 3/4-inch shank diameter with no flats for straightforward installation
• Compatible with annular cutters from 1/2 inch to 11/16 inch tool diameter
• Centers the cutter on the workpiece to prevent walking and improve hole accuracy
• Single-piece package for easy replacement stocking

Compatibility

Compatible with annular cutters in the 1/2 inch to 11/16 inch tool diameter range. Designed as a replacement or spare pilot pin for use with HOUGEN annular cutters and compatible cutting systems accepting a 3/4-inch shank pilot pin.

Installation Notes

Pilot pin installation and replacement is typically performed by a metalworking technician or machinist. Before replacing the pilot pin, ensure the drilling equipment is fully powered down and the cutter is secure. The pin should seat fully into the cutter arbor before initiating a cut. Inspect the pilot pin for wear or damage before each use, as a bent or worn pin can compromise hole accuracy.
