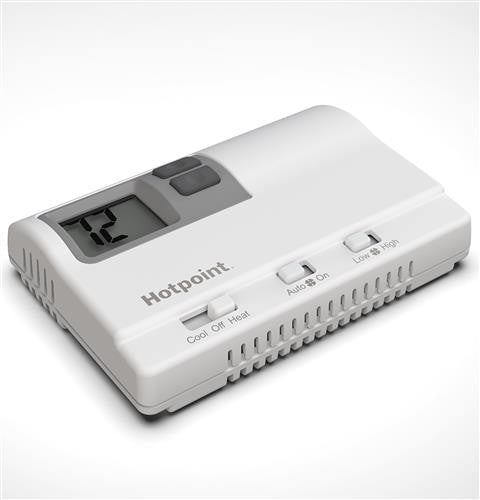

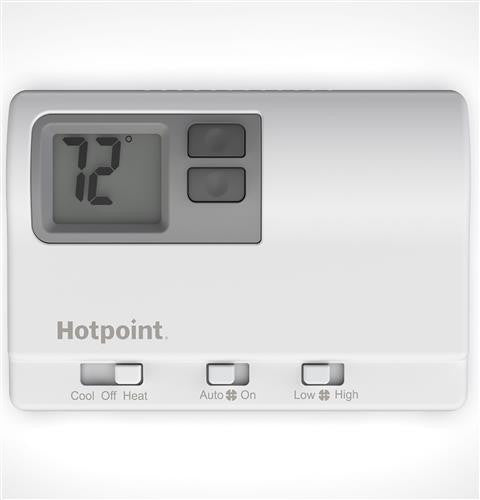

Hotpoint RAK148H2 Non-Programmable Digital Thermostat With High/Low Fan Speed for PTACs

Product Description

This Hotpoint RAK148H2 is a non-programmable digital thermostat designed for use with PTAC units. It features high and low fan speeds and operates efficiently with single-stage cooling and heating systems, including two-stage heating with resistance heat.

• Easy to read display with soft touch buttons
• Compatible with multiple HVAC configurations
• Simple installation with a 7-wire hook-up for two-stage heat systems

Product Highlights

The thermostat provides a clear interface for temperature management while being suitable for various heating and cooling setups.

Product Information

Standard Information

• Electrical Rating: 24 VAC (18 to 30 VAC)
• Maximum Load: 4 amps total

Technical Specifications

• Operating Temperature Range: 40°F to 99°F (4°C to 37°C)
• Temperature Set Range: 60°F to 85°F (15°C to 29°C)
• Accuracy: ±1°F (±0.5°C)
• System Configurations: 2-stage heat, 1-stage cool, 2-speed fan
• Terminations: R, C, W, Y, GH, GL, B
• Maximum Wiring Length: 66ft (20 meters) for AWG18, 60ft (18 meters) for AWG20
