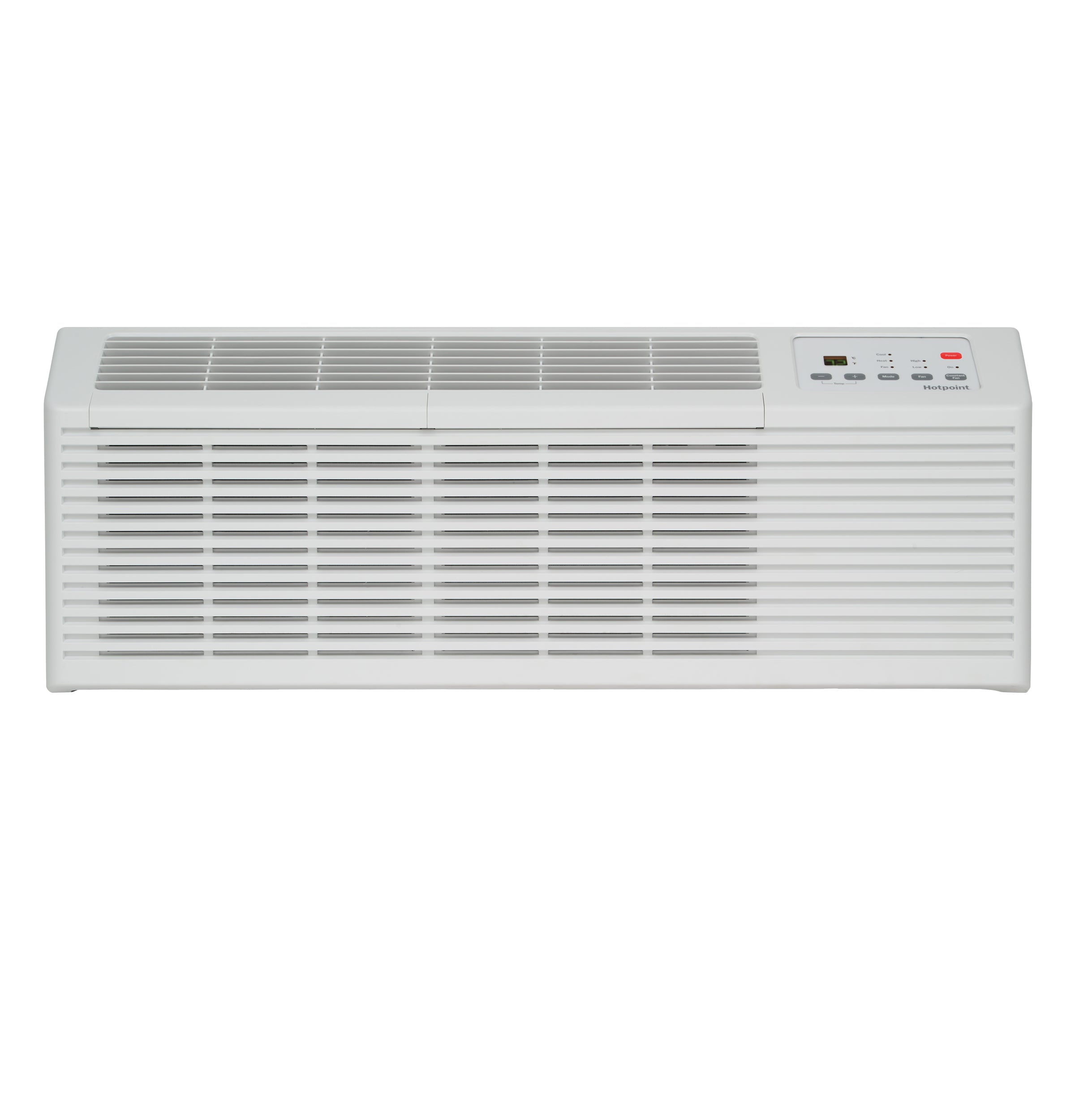

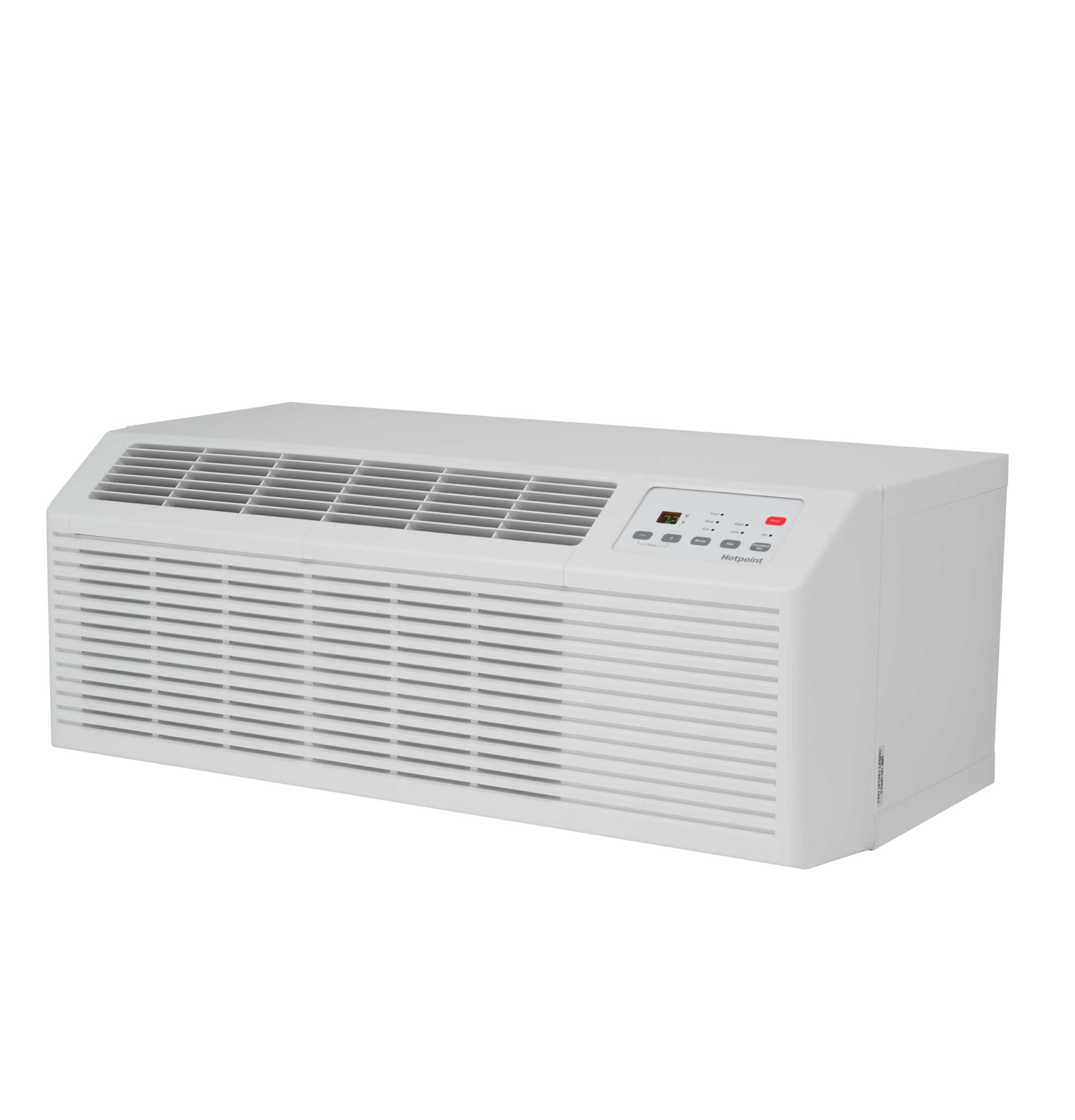

Hotpoint AHHS15D3XXA PTAC Heat Pump with Electric Heat Backup 15,000 BTU, 230/208V, 20amp

Product Description

The HOTPOINT AHHS15D3XXA PTAC Heat Pump with Electric Heat Backup offers 15,000 BTU, 230/208V, and 20amp. Features include 2 fan speeds, 4 temperature-limiting options, and an auto-dimming display. It also has slinger ring condensate removal and a coverless control panel. Additional features include automatic emergency heat, freeze/frost & overheat protection, and auto power recovery.

• 2 Fan Speeds
• 4 Temperature-Limiting Options

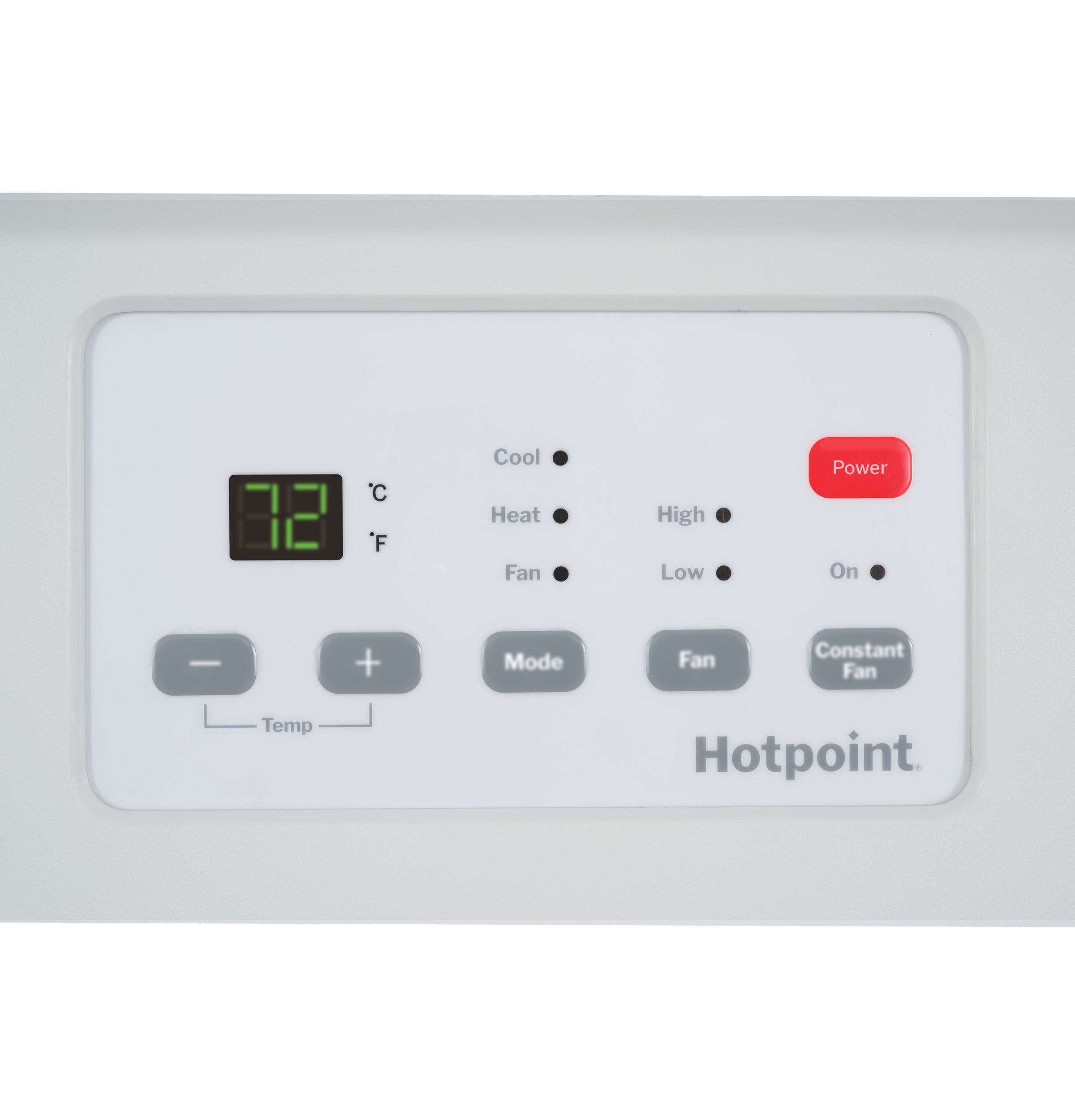

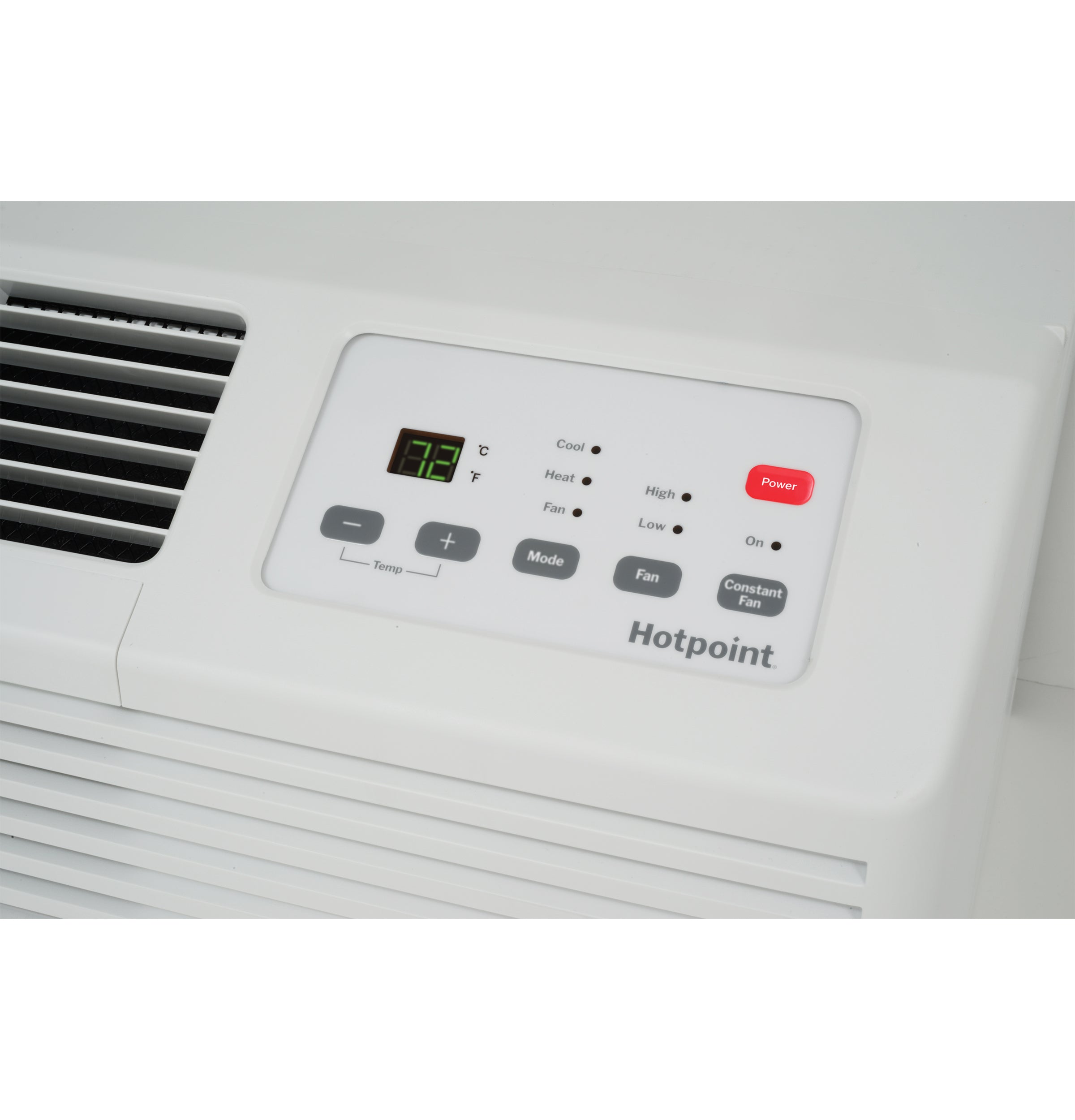

• Auto Dimming Display

Product Highlights

This PTAC heat pump provides efficient heating and cooling with user-friendly features and protective functions.

Product Information

Standard Information

• Brand: HOTPOINT
• Manufacturer Part Number: AHHS15D3XXA

Technical Specifications

• Control Type: Electronic
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Type: R32
• Temperature Range: 62 - 80 F
• Fan Speed Selections: 2 Cooling 2 Fan Only 2 Heating
• Unit Features: Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility (Accessory Kit Required)
• Auto Power Recovery: Yes
• Chassis Type: Slide-In
• Heat - Cool: Yes
• Heat Pump: Yes
• Heating - Reverse Cycle - COP: 3.0/3.0
• Manual Vent Control: Hidden
• Outdoor Vent / Exhaust: Yes
• Rotary Compressor: Yes
• Venting Features: Concealed Manual Vent Control
• "SmartFan" Fan Cycle: Yes
• Discharge Grille: 2-position
• Fan Motor: 1
• Heating System: Heat Pump with Resistance Backup
• Cooling EER (BTUH / Watt): 9.7/9.7
• Heating - Reverse Cycle - BTUH: 13700/13500
• Cooling BTUH (MAX): 14700.0 Btu
• Cooling BTUH (MIN): 14500.0 Btu
• Installation: Through-the-Wall
• Color Appearance: White
• Overall Depth: 20.9
• Overall Height: 16.0
• Overall Width: 42.4
• Cooling - Watts: 1515/1490
• Cooling - Amperes: 7.2/6.7
• Voltage (MAX): 230.0 V
• Voltage (MIN): 208.0 V
• Heat Pump - Amps: 7.5/8.1
• Heat Pump - Watts: 1335/1315
• Cooling BTU: 15000
• Voltage: 208/230V
• AMPS: 20A
• EER: 9.7
• COP: 3.0
• Reverse Cycle BTU: 13500
• Modes: Heat/Cool/Heat-Pump
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Auto Restart: YES
• Digital Controls: YES
• Temprature Limiting: YES
• Front Desk Connection: YES
• Freeze Protection: YES
• Sea Coast Protection: NO
• Wall Sleeve Dimensions: 42"W X 16"H X 13-3/4"D
• Airflow (CFM): 630/530
• Dehumidification (pt/hr): 4.02
• Electric Heating Capacity (kw): 3.5
• Sensible Heat Ratio: 70.3
• Refrigerant Charge (Oz): 26.81
