Product Description

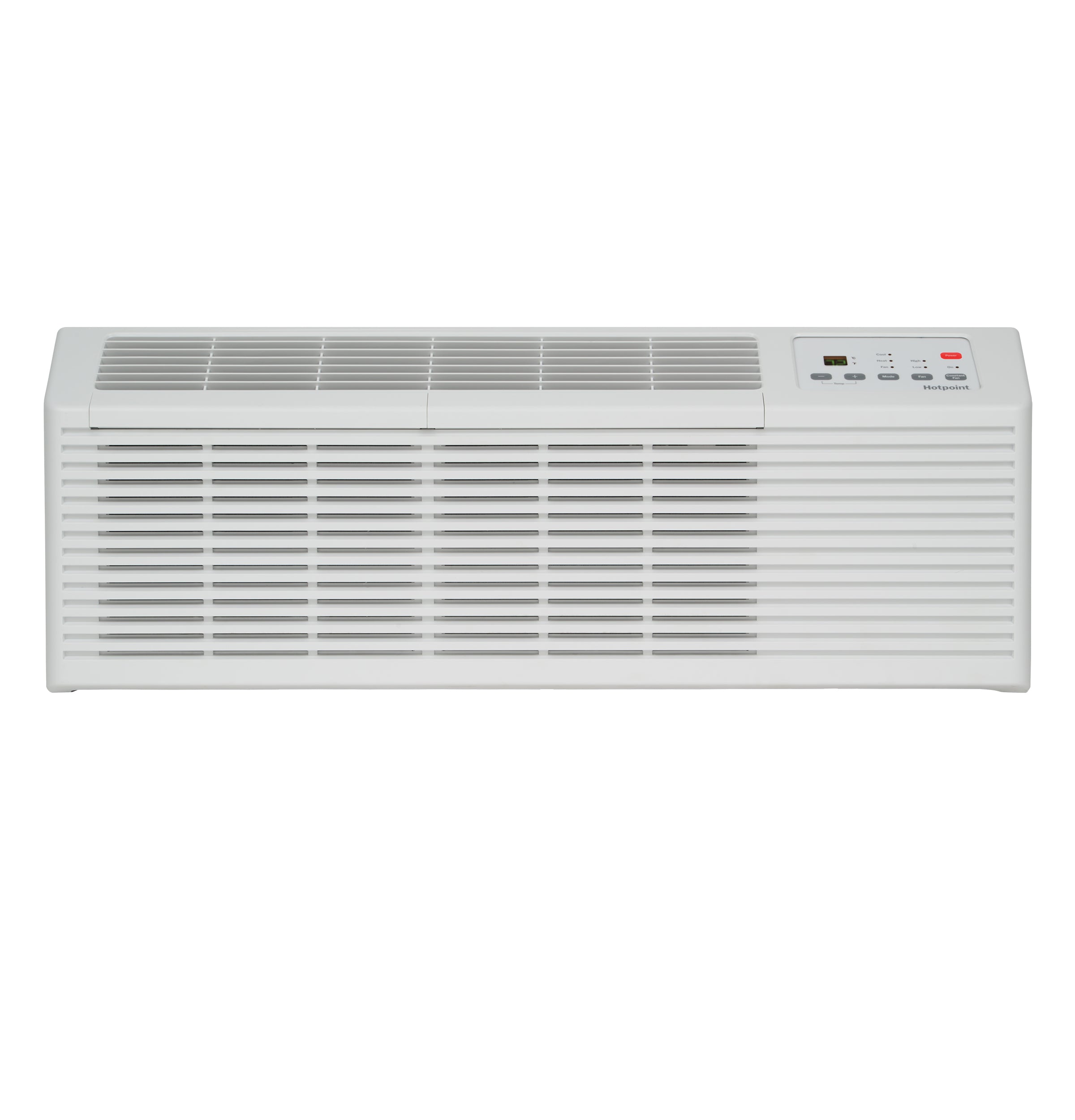

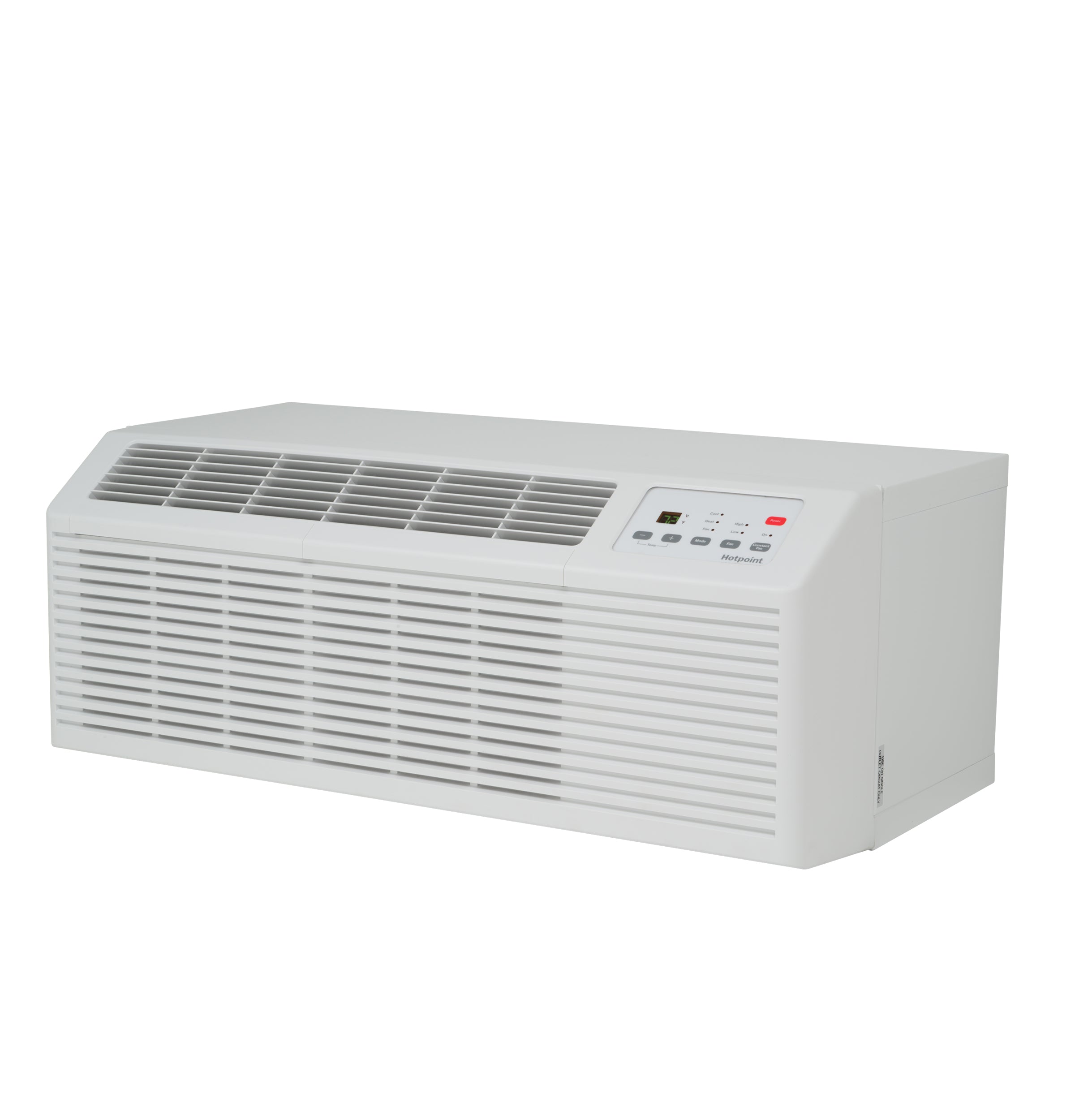

The HOTPOINT AHHS12D3XXA PTAC heat pump features electric heat backup, a 12,000 BTU capacity, and operates at 230/208V with a 20amp requirement. This packaged terminal air conditioner offers 2 fan speeds and 4 temperature-limiting options. It also includes auto-dimming display, slinger ring condensate removal, and a coverless control panel. The unit provides automatic emergency heat and freeze/frost overheat protection.
- Features 2 Fan Speeds and 4 Temperature-Limiting Options
- Includes Auto Dimming Display and Slinger Ring Condensate Removal
- Offers Automatic Emergency Heat and Freeze/Frost & Overheat Protection
Product Highlights
This PTAC heat pump provides efficient heating and cooling with user-friendly features and robust protection mechanisms.
Product Information
Standard Information
-
Brand: HOTPOINT
-
Manufacturer Part Number: AHHS12D3XXA
Technical Specifications
-

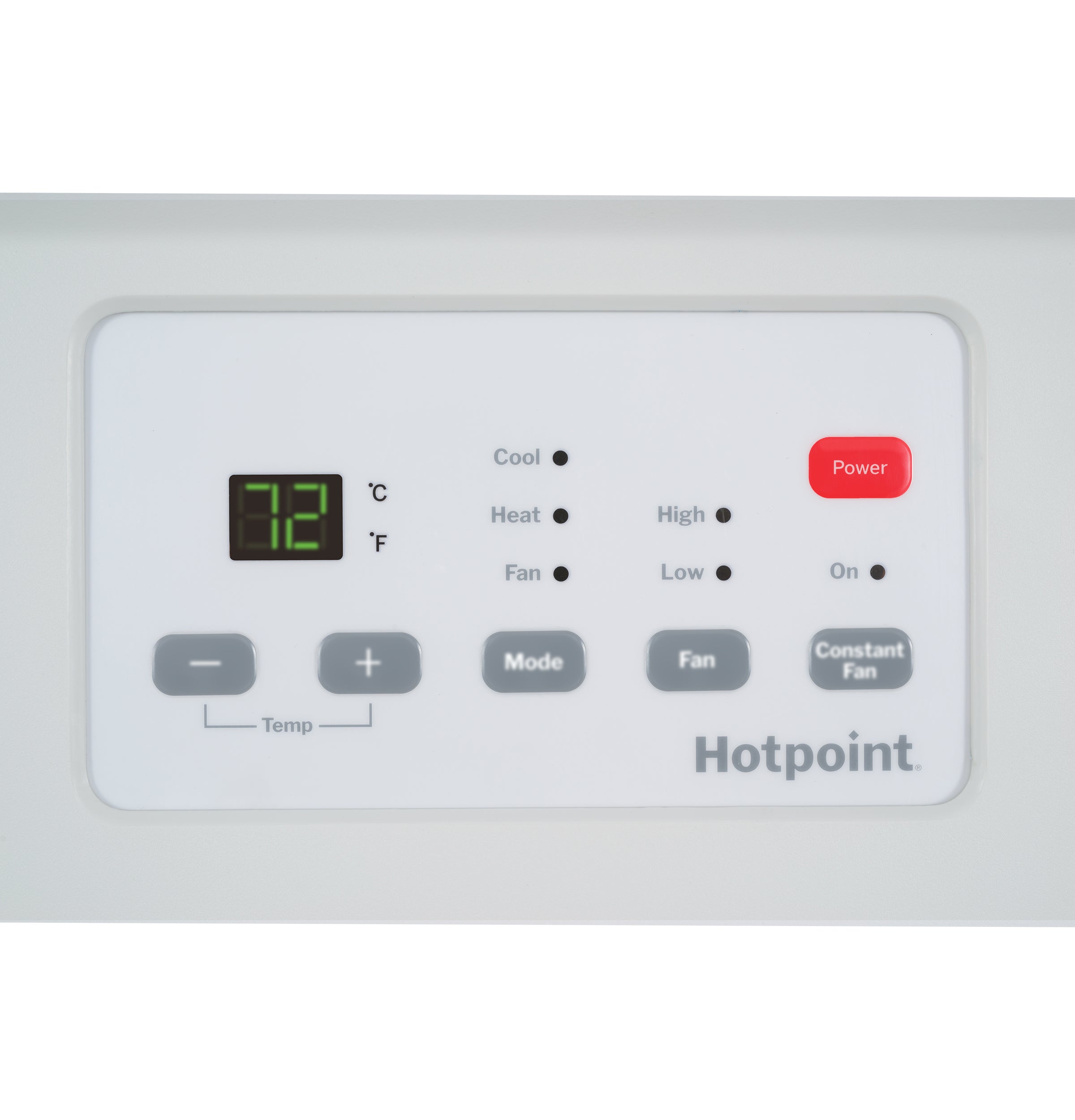

Control Type: Electronic/Digital
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Type: R32
-
Temperature Range: 62 - 80 F
-
Fan Speed Selections: 2 Cooling, 2 Fan Only, 2 Heating
-

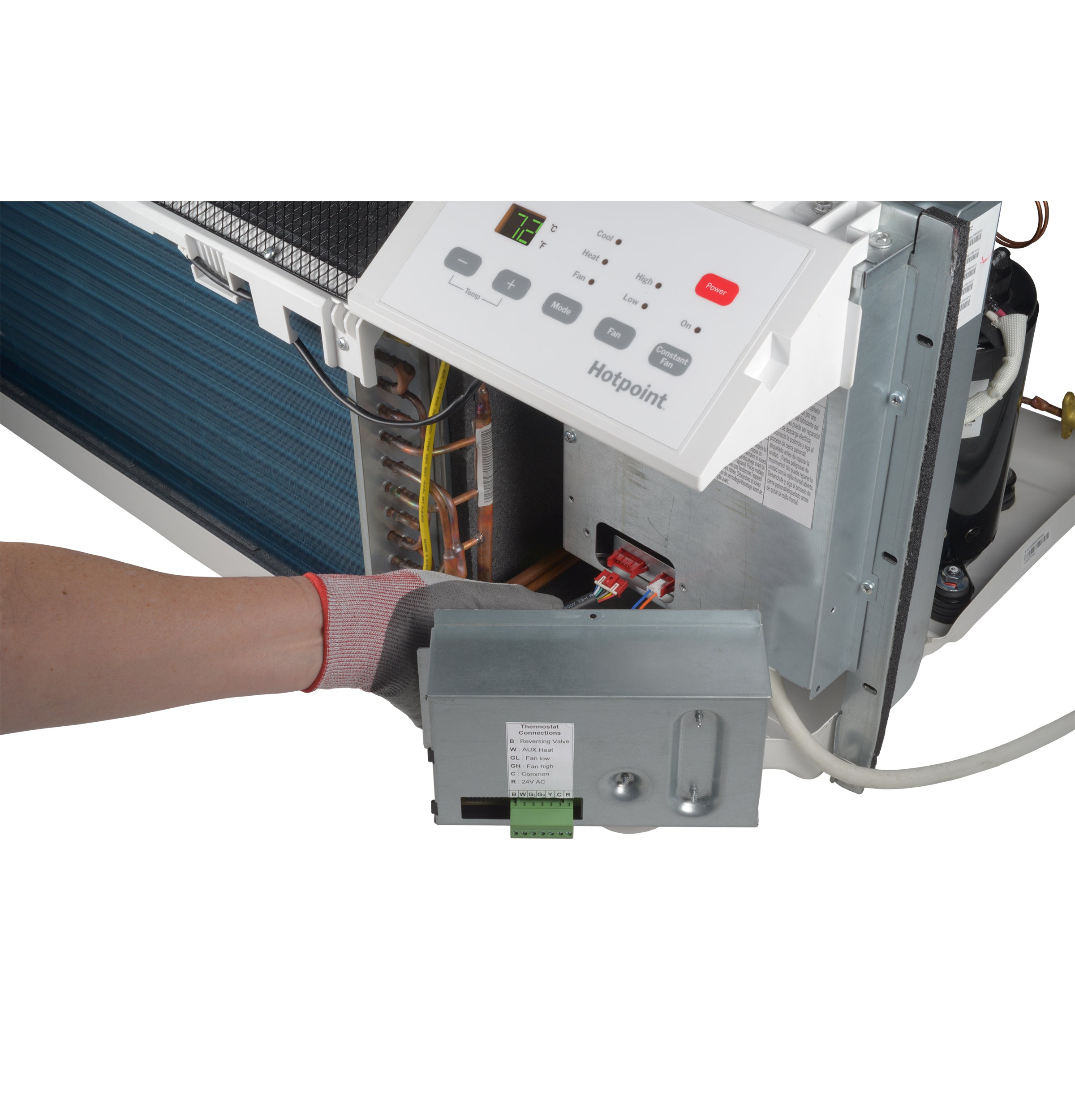

Unit Features: Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required)
-
Auto Power Recovery: Yes
-
Chassis Type: Slide-In
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heating - Reverse Cycle - COP: 3.1/3.2
-
Manual Vent Control: Hidden
-
Outdoor Vent / Exhaust: Yes
-
Rotary Compressor: Yes
-
Venting Features: Concealed Manual Vent Control
-
SmartFan" Fan Cycle: Yes
-
Discharge Grille: 2-position
-
Fan Motor: 1
-
Heating System: Heat Pump with Resistance Backup
-
Cooling EER (BTUH / Watt): 10.4/10.5
-
Heating - Reverse Cycle - BTUH: 11000/10800
-
Cooling BTUH (MAX): 12400.0 Btu
-
Cooling BTUH (MIN): 12200.0 Btu
-
Installation: Through-the-Wall
-
Overall Depth: 20 9/10 in
-
Overall Height: 16 in
-
Overall Width: 42 2/5 in
-
Cooling - Watts: 1190/1160
-
Cooling - Amperes: 6.0/5.7
-
Voltage (MAX): 230.0 V
-
Voltage (MIN): 208.0 V
-
Heat Pump - Amps: 6.1.6.5
-
Heat Pump - Watts: 1160/1035
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 2.85
-
CFMs: 530 / 600 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 12200
-
EER (@208V): 10.5
-
Cooling Amps (@208V): 5.7
-
Cooling Watts (@208V): 1160
-
Electric Heat Strip Size (kW - @208V): 2.9
-
Electric Heating BTUs (@208V): 8900
-
Electric Heating Amps (@208V): 13.7
-
Electric Heating Watts (@208V): 2897
-
Heat Pump BTUs (@208V): 10800
-
COP (@208V): 3.2
-
Heat Pump Heating Amps (@208V): 6.5
-
Heat Pump Heating Watts (@208V): 985
-
Cooling BTUs (@230V): 12400
-
EER (@230V): 10.4
-
Cooling Amps (@230V): 6.0
-
Cooling Watts (@230V): 1190
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Electric Heating BTUs (@230V): 10900
-
Electric Heating Amps (@230V): 15.3
-
Electric Heating Watts (@230V): 3500
-
Heat Pump BTUs (@230V): 11000
-
COP (@230V): 3.1
-
Heat Pump Heating Amps (@230V): 6.1
-
Heat Pump Heating Watts (@230V): 1035
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-

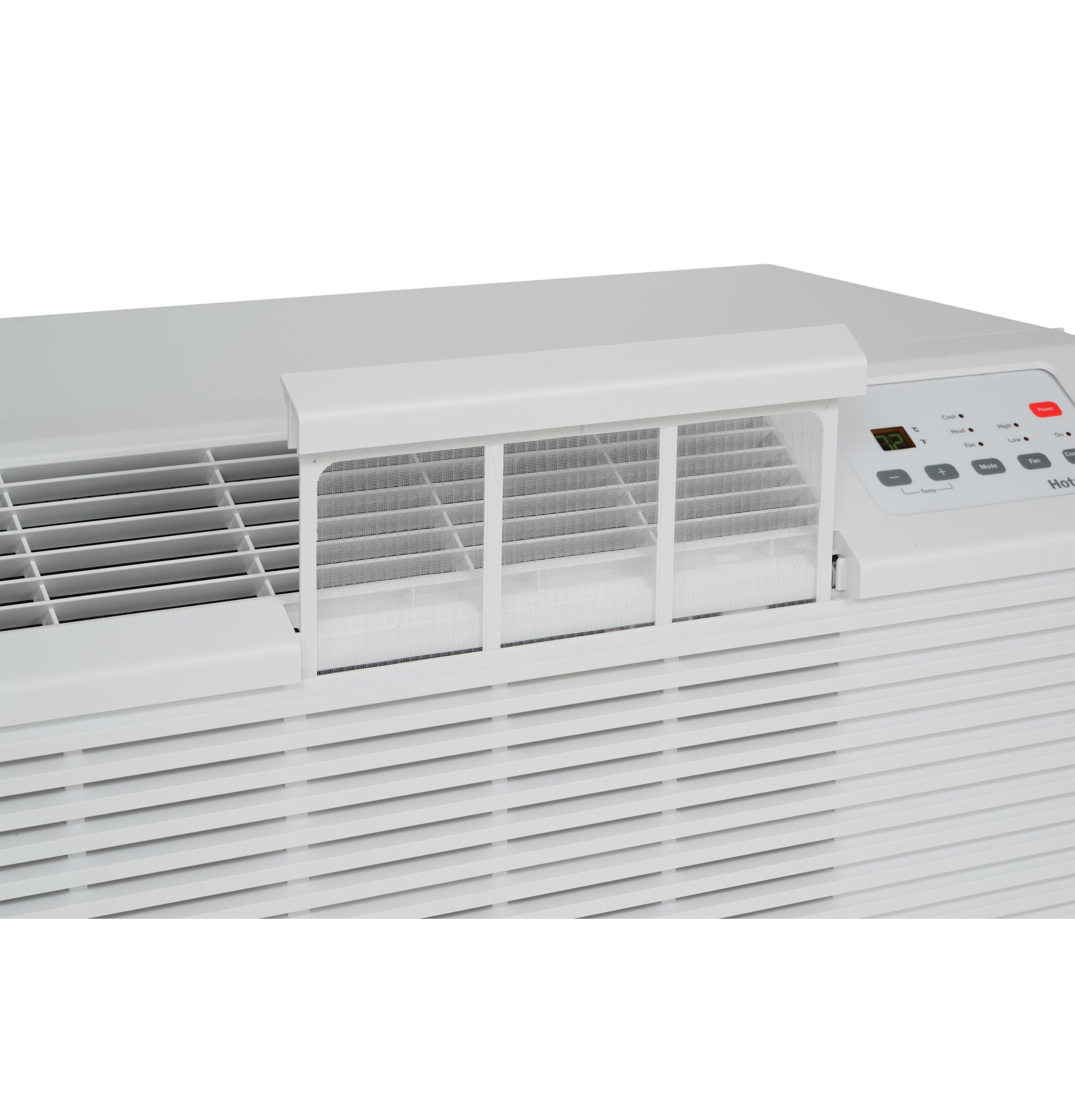

Filter Access: Rigid Frame; Slide-Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Certifications: UL / CUL / AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 6'
